Pelvis Acceleration

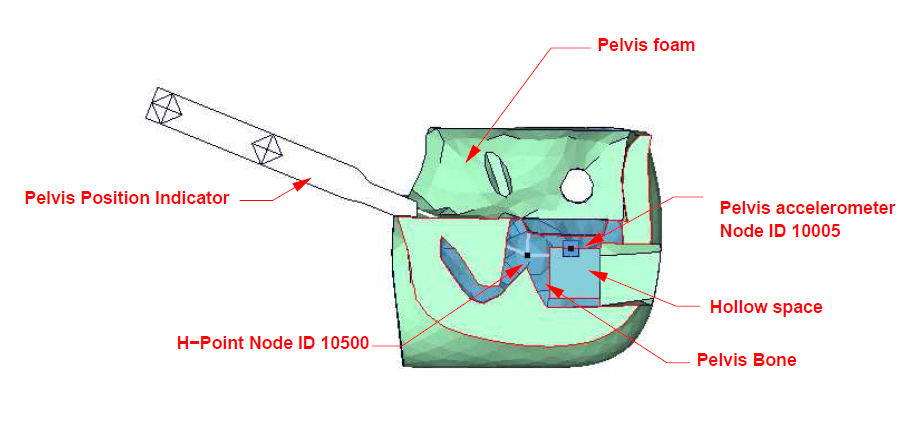

Figure 7 : Pelvis acceleration, accelerometer nodes
Figure 7 shows a plane cut along the z-x-plane. The accelerometer is mounted in the marked hollow space. Node 10005, on the top of the Hollow space, is used as the accelerometer Node and an accelerometer is defined on it.
| Item |
Node ID |
Component |
|---|---|---|
| Pelvis | 10005 |
x-acceleration z-acceleration |
