Calibration Tests

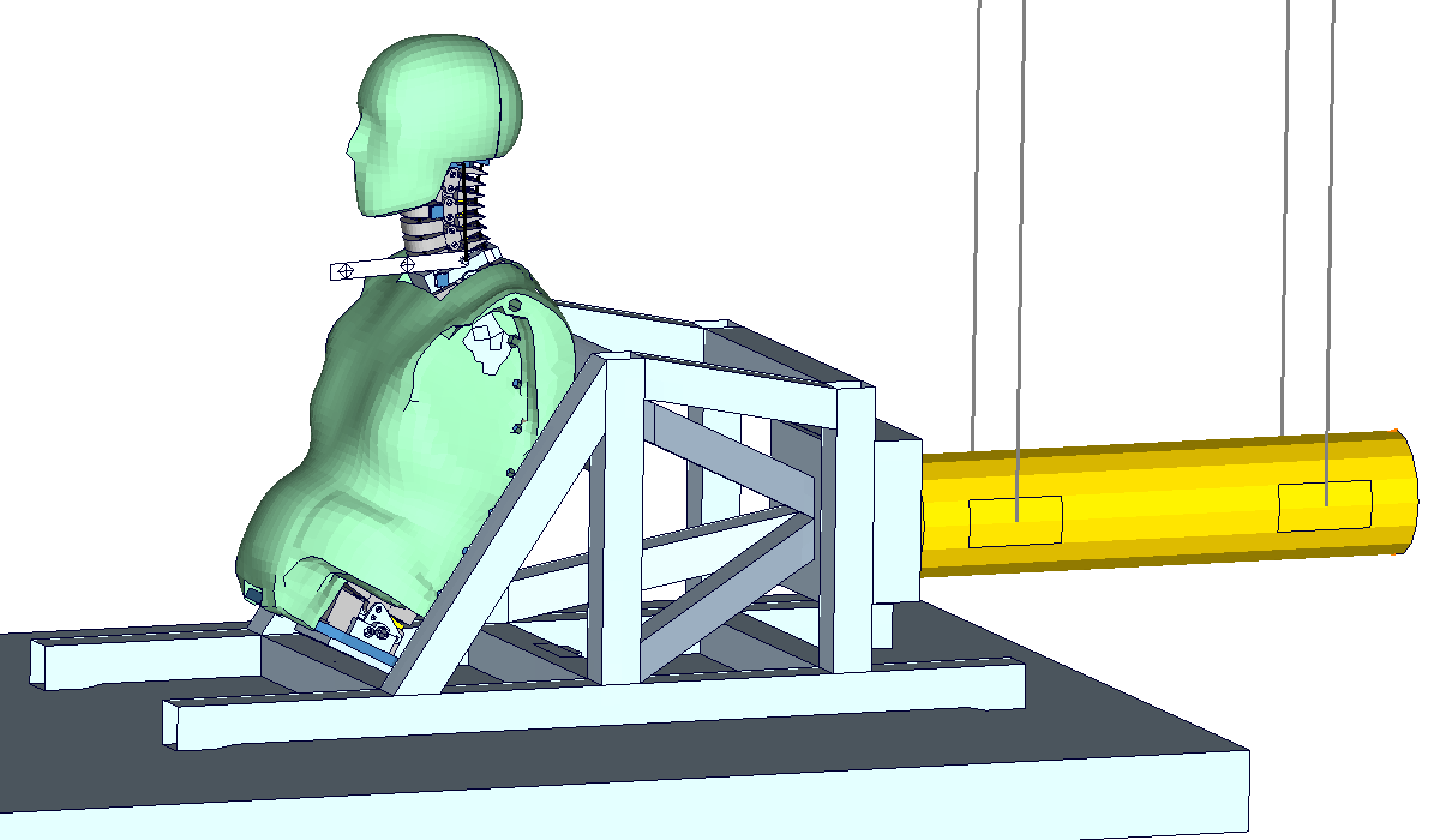

Figure 20 : Calibration test setup
The calibration test setup is done as described in the manual of the physical dummy (BioRID II User's Guide - Robert A. Denton, Inc., June 2002).
The required corridors are the blue boxes and lines. The results of the BioRID v2.0 are the green lines and the results of the BioRID v2.5 are the red lines.
