Results of Spine Fixed up to T1

Spine fixed upto T1

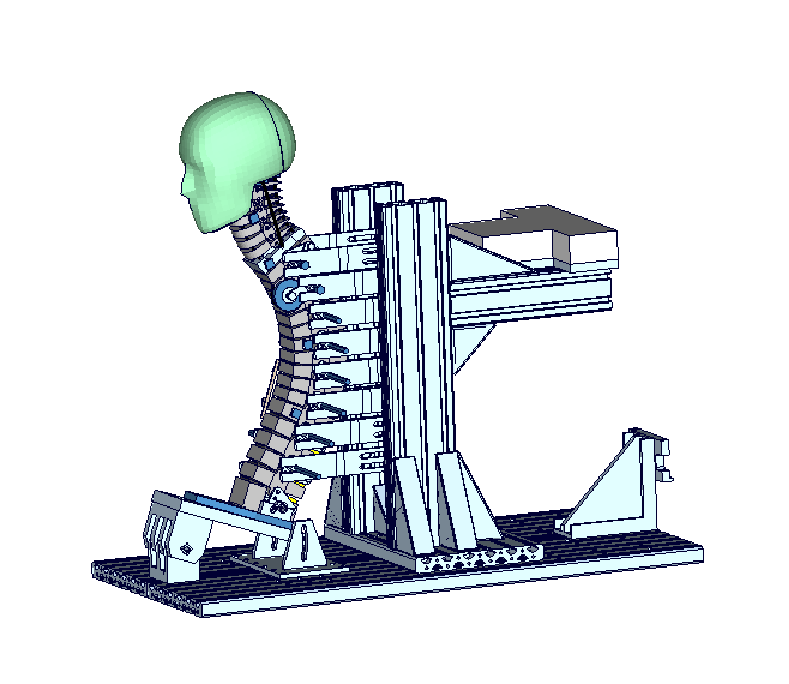

Figure 16 : Spine fixed up to T1

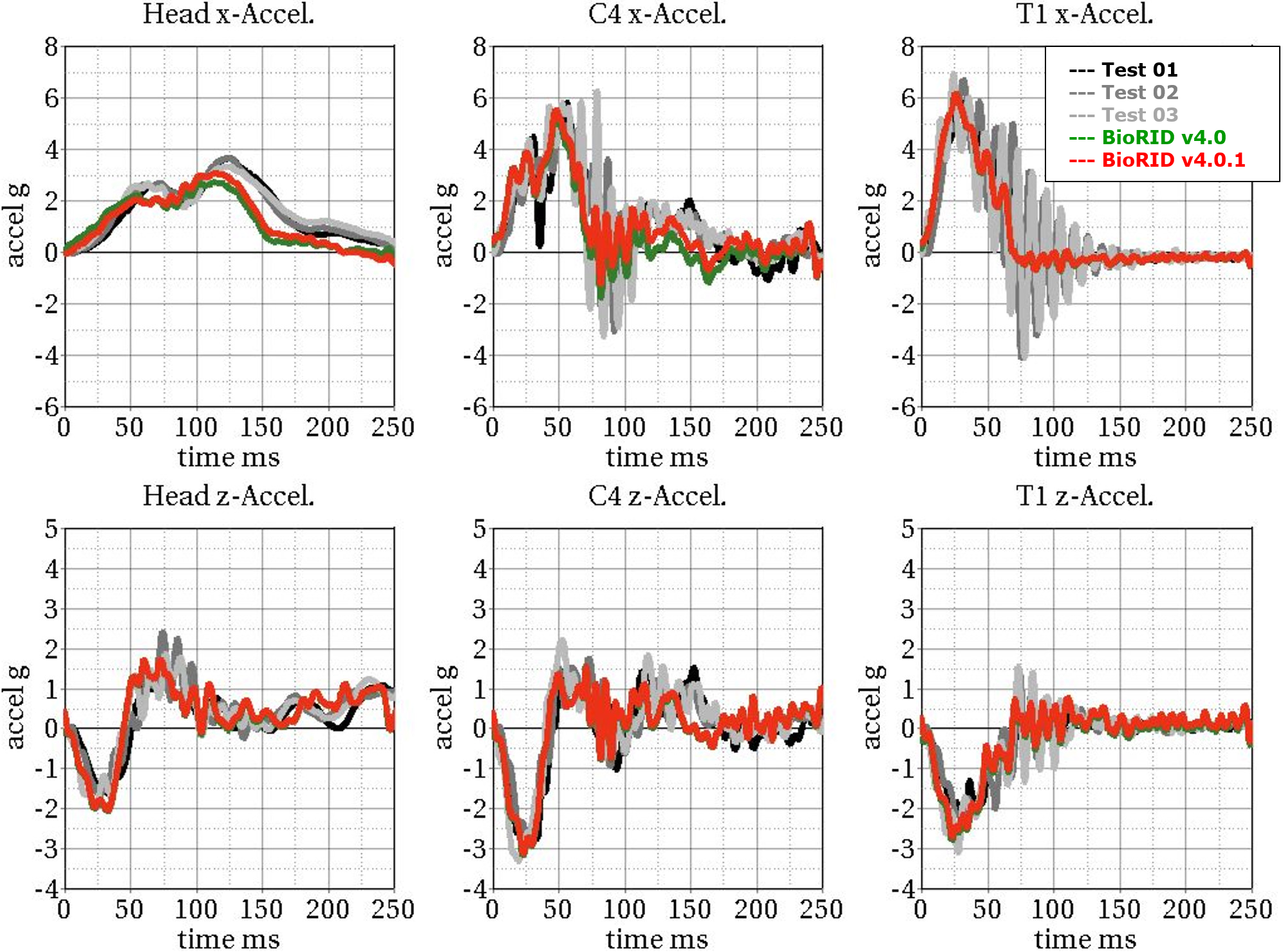

Spine fixed up to T1 with damper / with muscle substitute springs (Page 1)

 Spine fixed upto T1_Page1

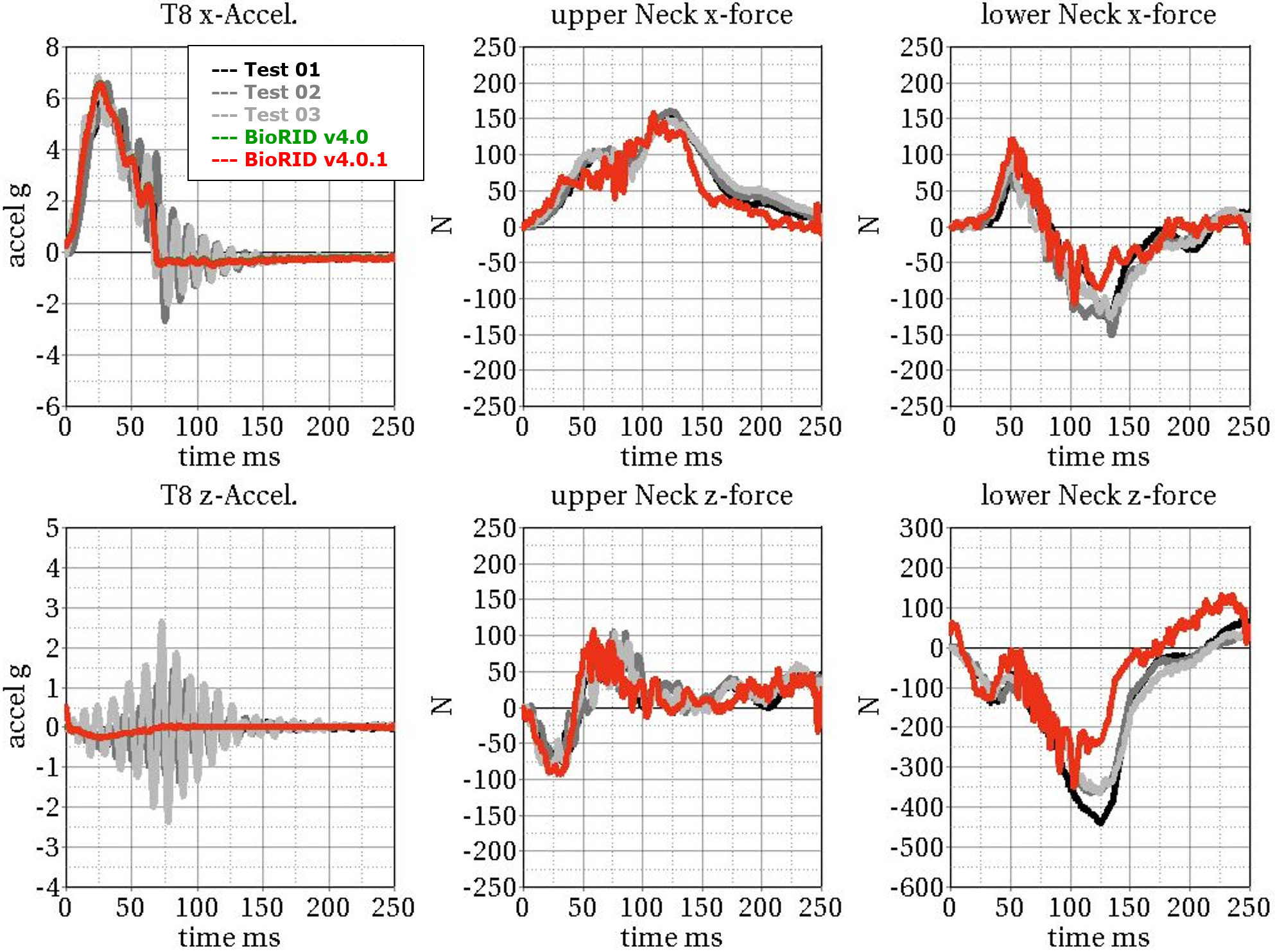

Spine fixed up to T1 with damper / with muscle substitute springs (Page 2 )

Spine fixed upto T1_Page2

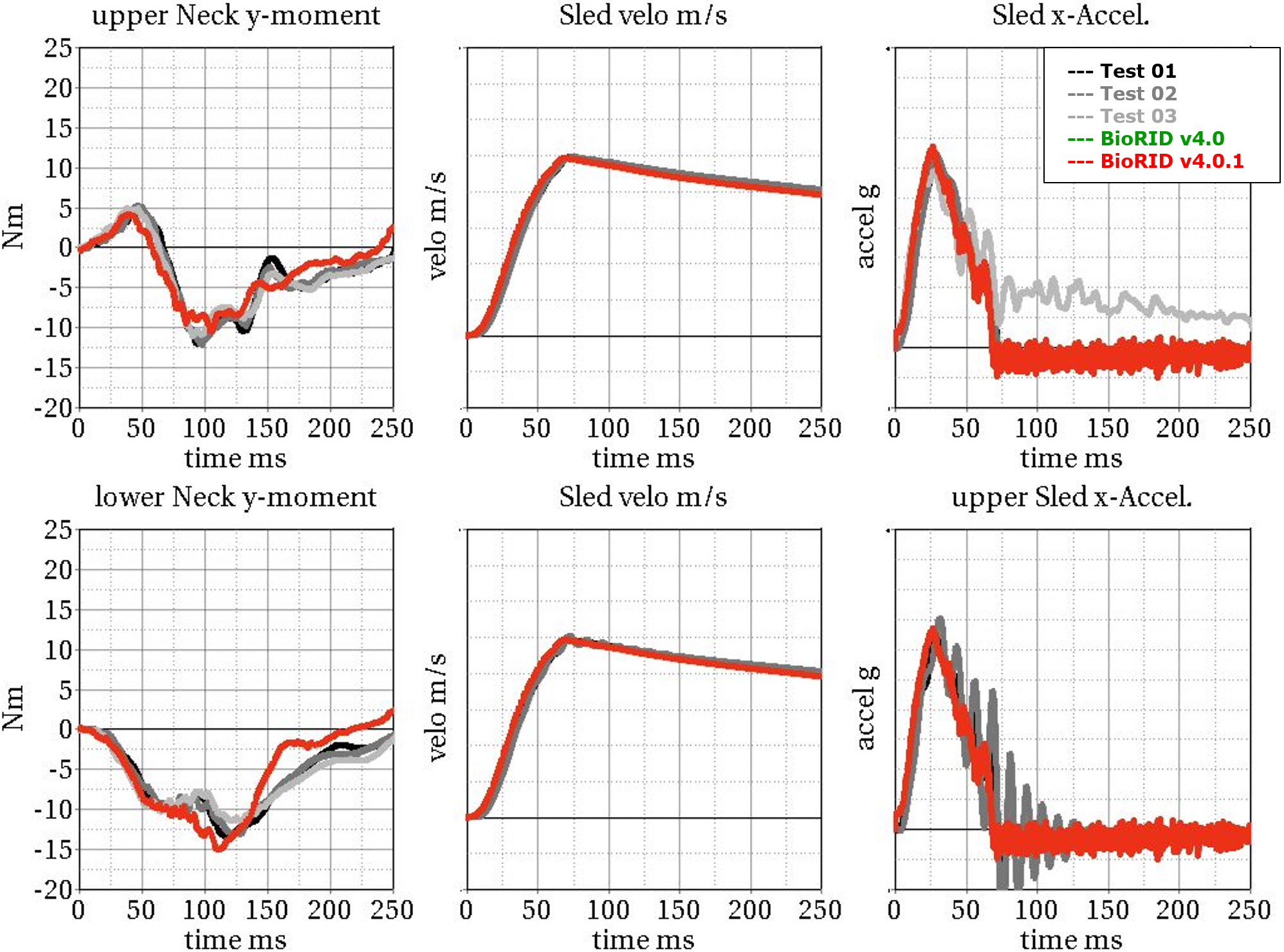

Spine fixed up to T1 with damper / with muscle substitute springs (Page 3 )

Spine fixed upto T1_Page3

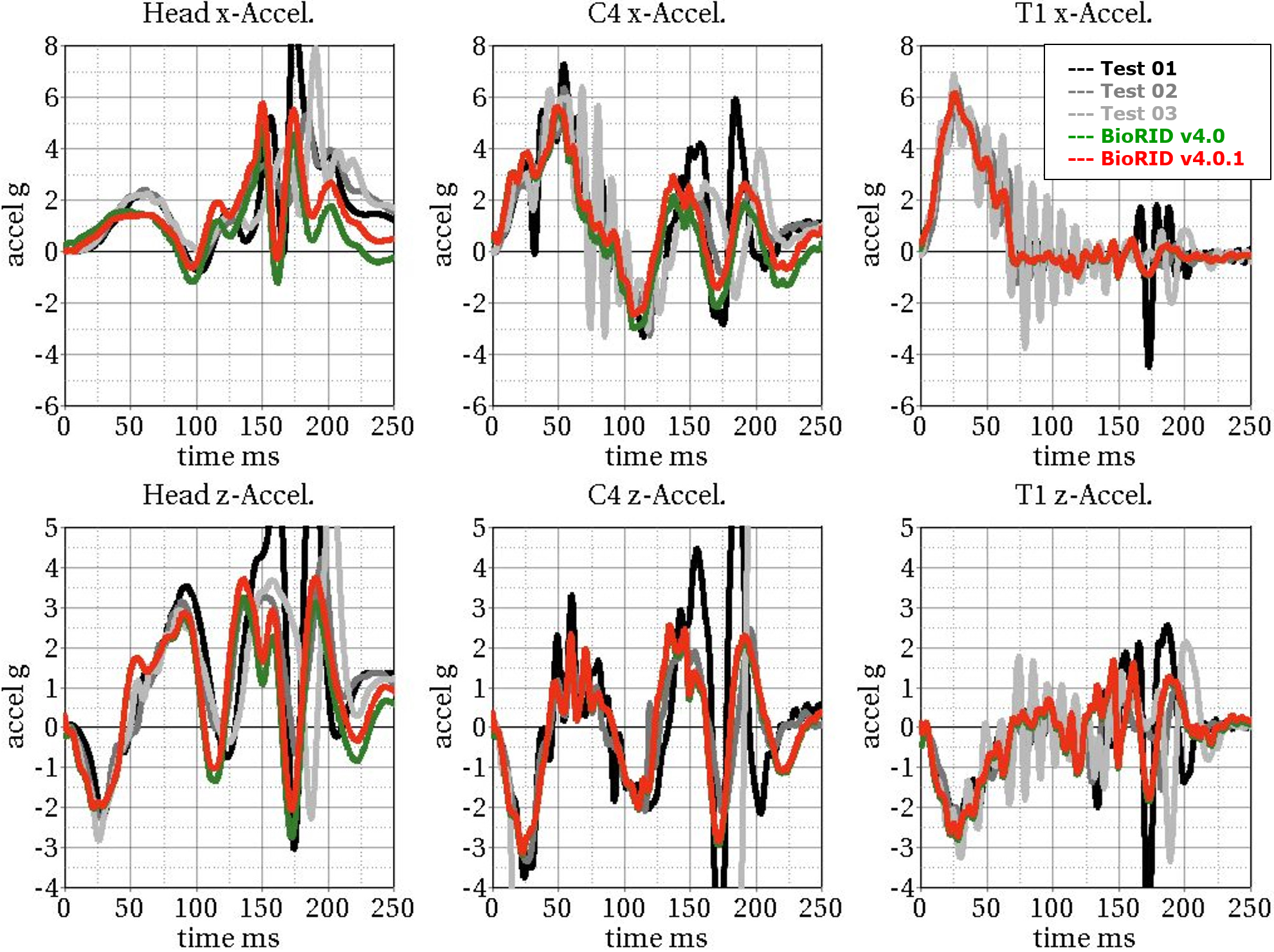

Spine fixed up to T1 without damper / with muscle substitute springs (Page 1)

Spine fixed upto T1_OD_Page4

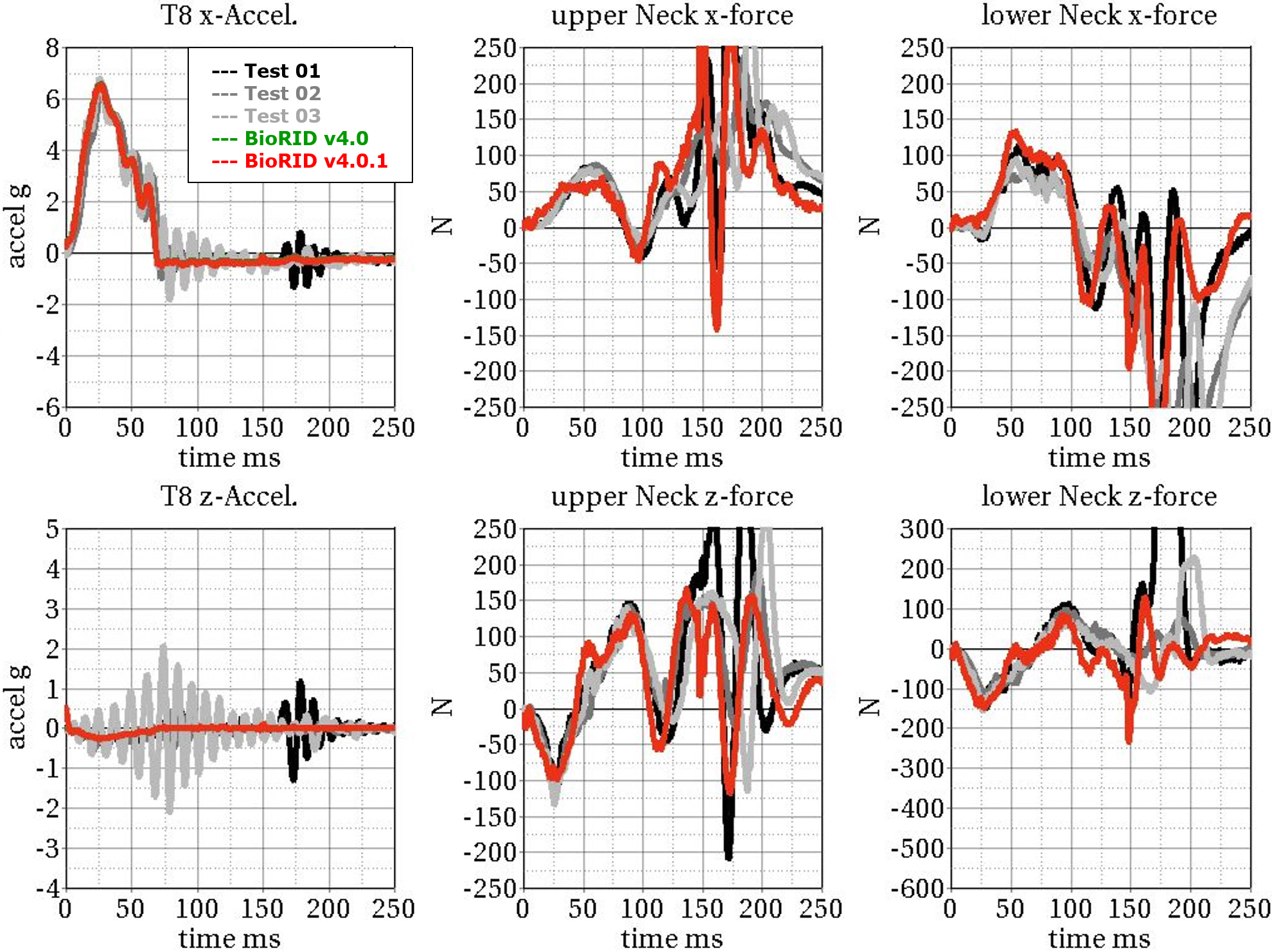

Spine fixed up to T1 without damper / with muscle substitute springs (Page 2)

Spine fixed upto T1_OD_Page5

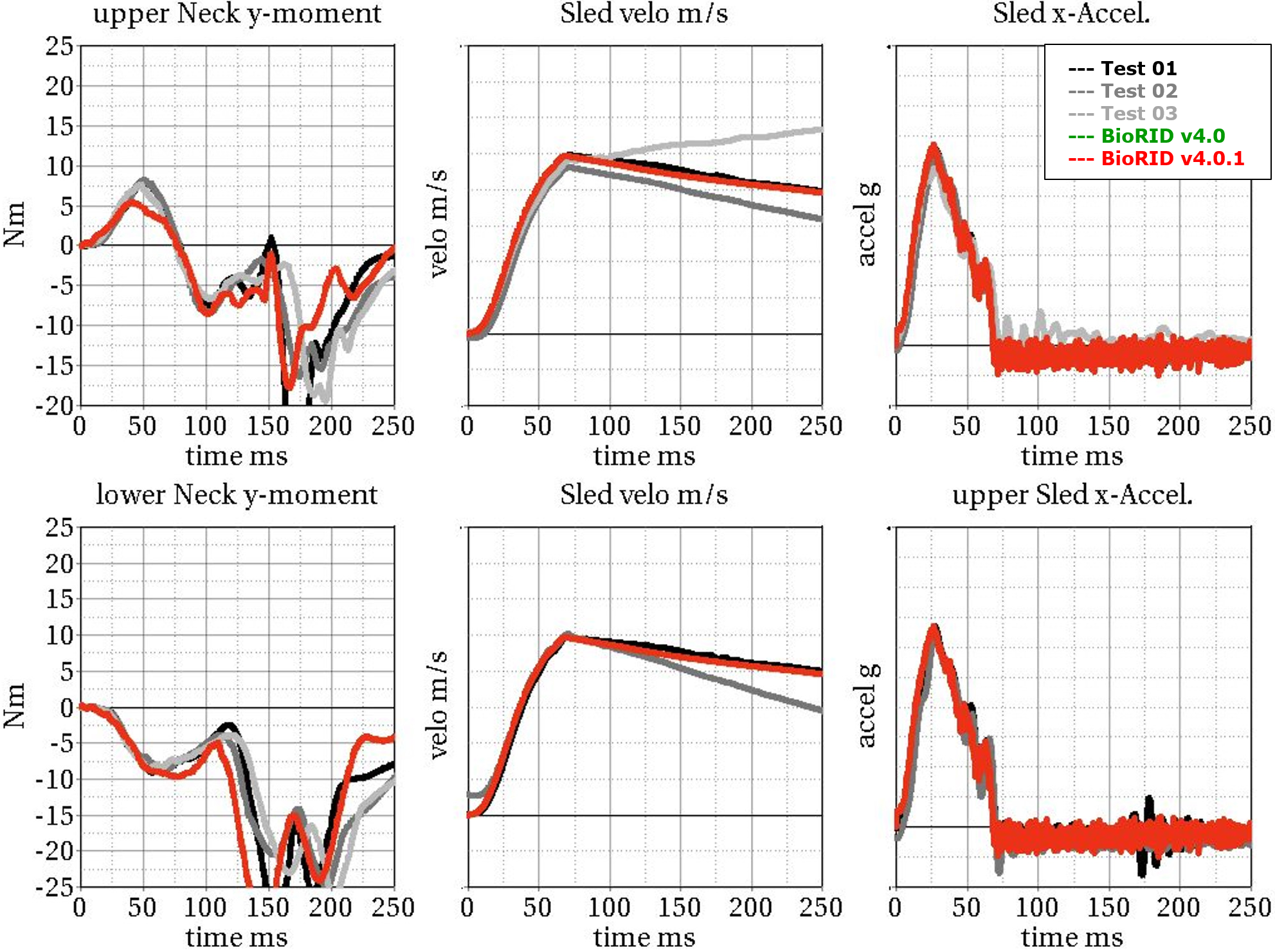

Spine fixed up to T1 without damper / with muscle substitute springs (Page 3)

Spine fixed upto T1_OD_Page6
