Rib Intrusion

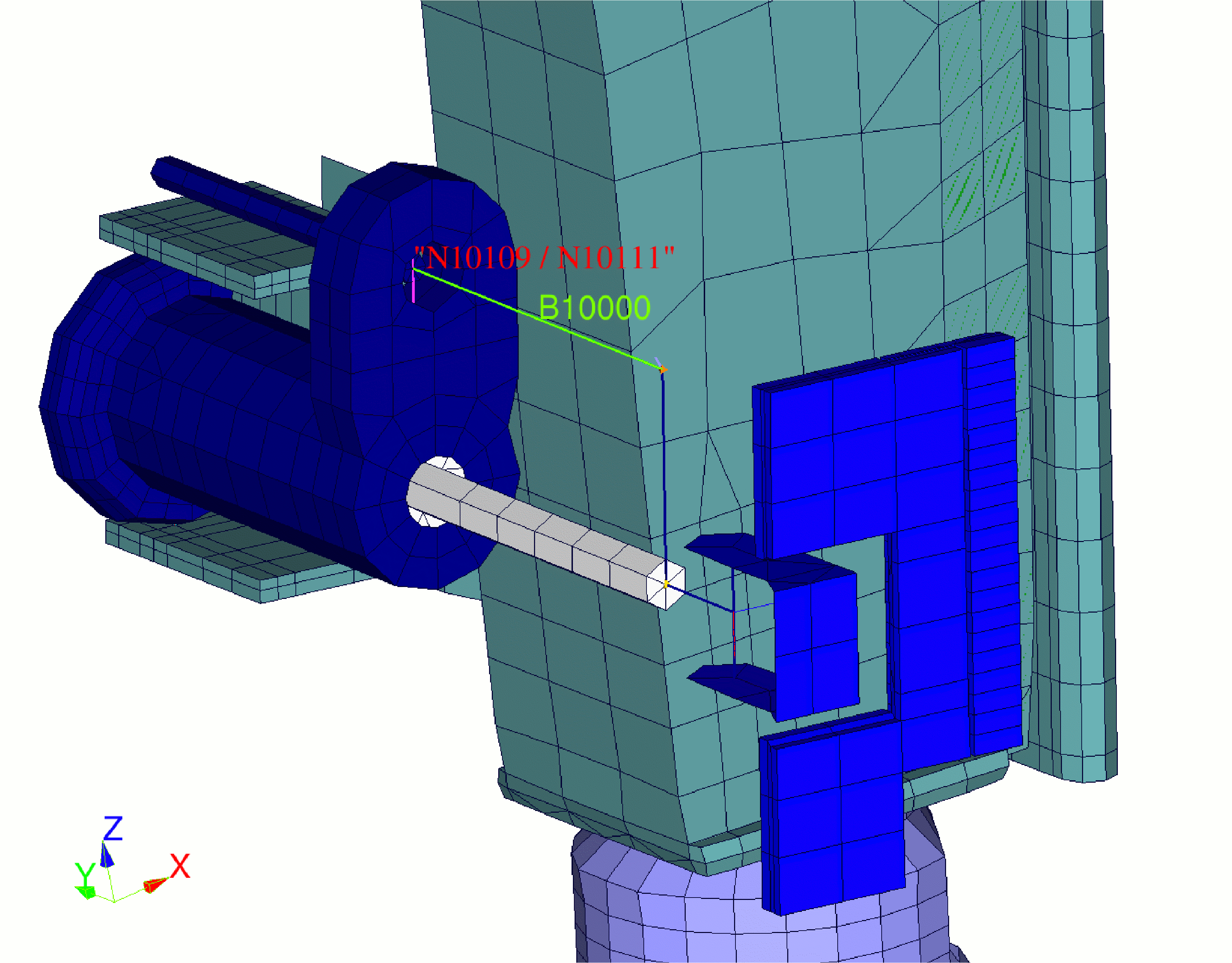

Fig. 3: Rib Intrusion
| Item | Node ID |
Component |
|---|---|---|
| Rib intrusion |
10111 relative to 10109 |
x-displacement |
Alternatively, a discrete element can be used for measuring the rib intrusion.
| Item | Discrete Element ID |
Component |
|---|---|---|
| Rib intrusion |
10000 | deforc - change in length |
