Additional force transducer contacts

Force_Transducer_Contacts

Force Transducer Contacts

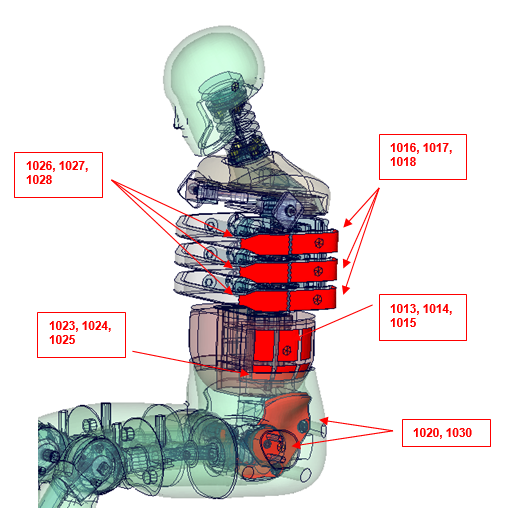

The figure above displays the areas where additional force transducer contacts have been defined.



Item Interface ID Label Component
Upper rib force 1016 RIB FORCE - UPPER RIB   magnitude
Middle rib force 1017                       RIB FORCE - MIDDLE RIB   magnitude
Lower rib force  1018  RIB FORCE - LOWER RIB   magnitude
Upper rib front force   1026  RIB FRONT FORCE - UPPER RIB    magnitude
Middle rib front force   1027  RIB FRONT FORCE - MIDDLE RIB    magnitude
Lower rib front force   1028  RIB FRONT FORCE - LOWER RIB    magnitude
Abdomen to surrounding force - Front 1013 SURROUNDINGS-TO-ABDOMEN FORCE - FRONT   magnitude
Abdomen to surrounding force - Middle  1014 SURROUNDINGS-TO-ABDOMEN FORCE - MIDDLE    magnitude
Abdomen to surrounding force - Back 1015 SURROUNDINGS-TO-ABDOMEN FORCE - BACK    magnitude
Abdomen to pelvis force - Front   1023  PELVIS-TO-ABDOMEN FORCE - FRONT   magnitude
Abdomen to pelvis force - Middle   1024  PELVIS-TO-ABDOMEN FORCE - FRONT   magnitude
Abdomen to pelvis force - Back   1025  PELVIS-TO-ABDOMEN FORCE - FRONT   magnitude
Pelvis back plate to surrounding force  1020  SURROUNDINGS-TO-PELVIS FORCE  magnitude
Iliac wing to pelvis force  1030  PELVIS-TO-ILIAC WING LEFT  magnitude
