Femur Load Cells

Femur_Loadcell

Femur load cells

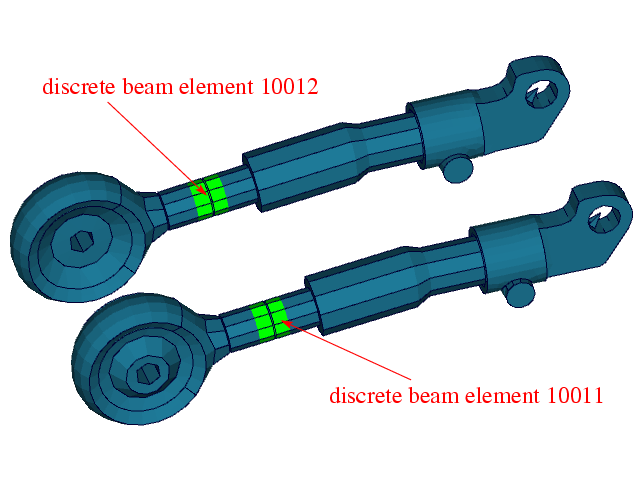

The figure shows the femur area. Discrete beam elements 10011 and 10012 are located in the femur to determine the forces and moments. The local directions are shown in the table below:



Item Beam ID Label Component
Femur force left
y - direction

10011

FEMRLE00ER
Force
shear-S
Femur moment left
About x-direction

10011

FEMRLE00ER
Moment
torsion
Femur force right
y - direction

10012

FEMRRI00ER
Force
shear-S
Femur moment right
About x-direction

10012

FEMRRI00ER
Moment
torsion
