Head Acceleration
Nodes for extracting head acceleration

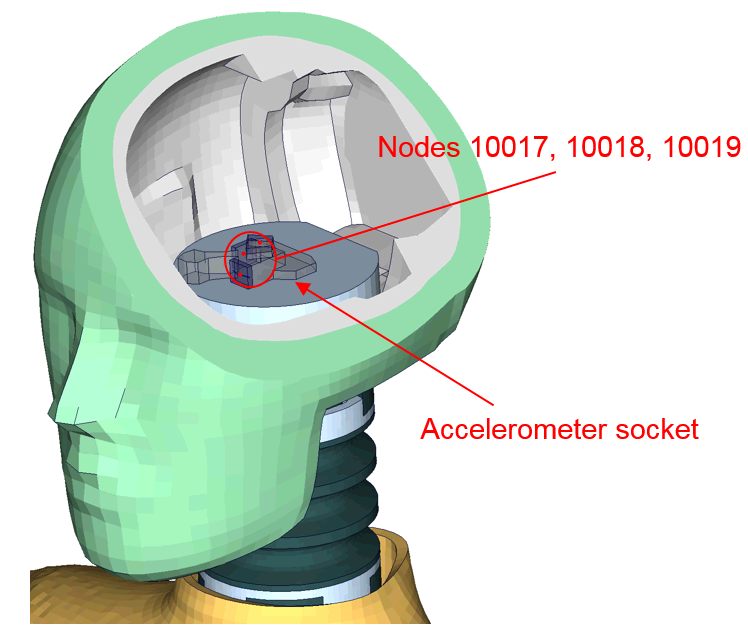

The figure shows the head model. Nodes 10017, 10018 and 10019 are located on the accelerometer socket. There is a separate accelerometer at each node.
| Item | Node ID | Label | Component |
|---|---|---|---|
| Head x | 10017 | HEAD0000ERACX | local x-acceleration |
| Head y | 10018 | HEAD0000ERACY | local y-acceleration |
| Head z | 10019 | HEAD0000ERACZ | local z-acceleration |
