Lower Lumbar Load Cell

Lower_Lumbar_Loadcell

Lower Lumbar load cell

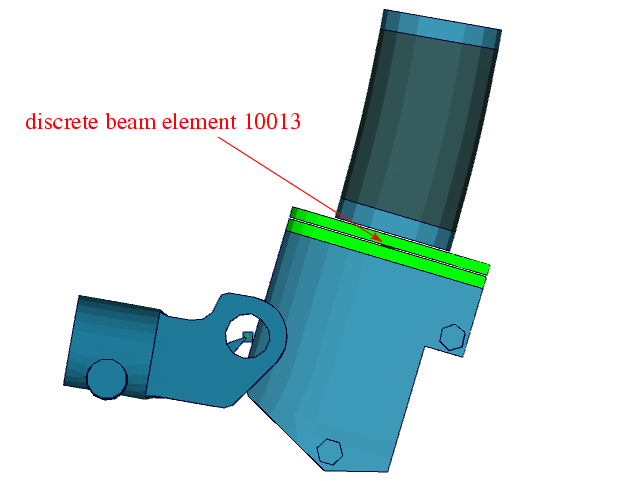

The figure shows the lower lumbar area. Discrete beam element 10013, located in the lower lumbar spine area can be used to measure the forces and moments. The local directions are shown in the table below:



Item Beam ID Label Component
Lower lumbar force
y - direction

10013

LUSP0000ER
Force
shear-S
Lower lumbar moment
About x-direction

10013

LUSP0000ER
Moment
torsion
Lower lumbar moment
About z-direction

10013

LUSP0000ER
Moment
moment-t
