Pelvis Acceleration


Node for extracting Pelvis acceleration

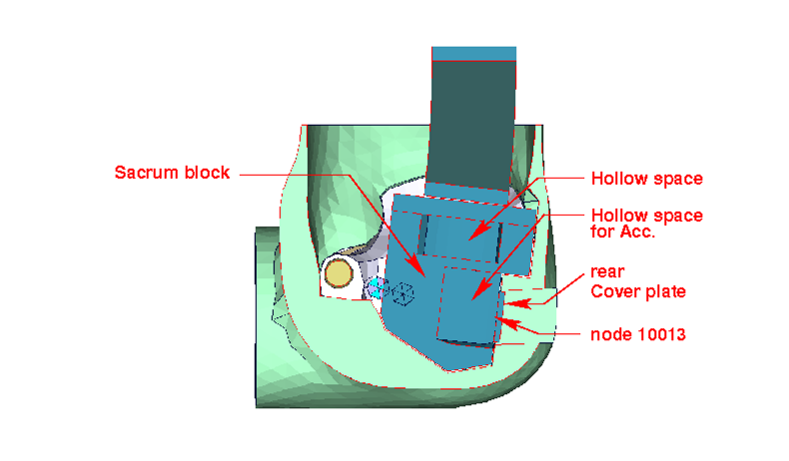

The figure above shows a plane cut along the z-x-plane. The accelerometer is mounted in the marked hollow space. Node 10013 is located on the rear cover plate of the sacrum block. An accelerometer is defined at this node.


Item Node ID Label Component
Pelvis 10013 PELV0000ERAC Local y-acceleration
