Pubic Symphysis Force

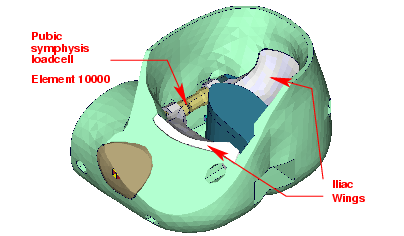

Location for extracting signals of Pubic Symphysis load cell


The figure above shows the pubic symphysis load cell. The left iliac wing is connected to the first part of the load cell. The right wing is connected to the second part. Both load cell parts generate a force under load in the connecting element 10000. The pubic symphysis force is the shear-S force in beam element 10000.


Item Beam ID Label Component
Pubic symphysis force 10000 PUBC0000ER shear-S force
