Rib Accelerations

Rib_acceleration

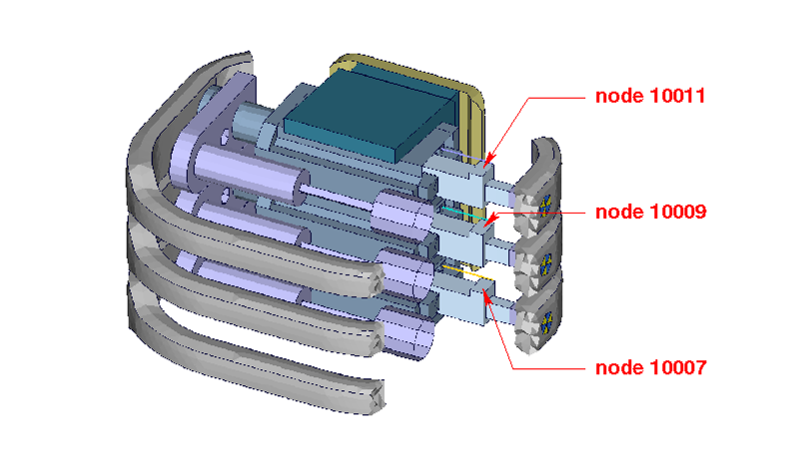

Nodes for extracting Rib accelerations



The marked nodes, which are shown in the figure above, are accelerometer nodes. The accelerometer definitions for local outputs are shown in the table below:



Item Node ID Label Component
Upper Rib 10011 RIBSLEUPERAC Local y-acceleration
Middle Rib 10009 RIBSLEMIERAC Local y-acceleration
Lower Rib 10007 RIBSLELOERAC Local y-acceleration
