Shoulder Force

Shoulder_Force

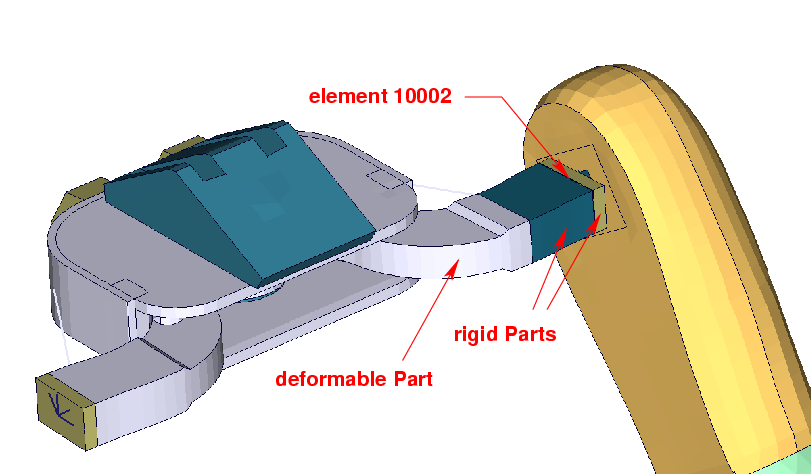

Clavicle box with adapted clavicle to measure shoulder forces



Element 10002, which is marked in the figure, is a discrete beam with coincident nodes. The clavicle is equipped with a load cell. The load cell is represented by a rigid box. The discrete beam is located between the rigid box and the arm adaptor plate. For local determination, a local coordinate system is provided. The components are shown in the table below:



Item Beam ID Labe Component
Shoulder force
x - direction
y - direction

10002

SHLDLE00ER
Force
axial
shear-S
