Spine Accelerations

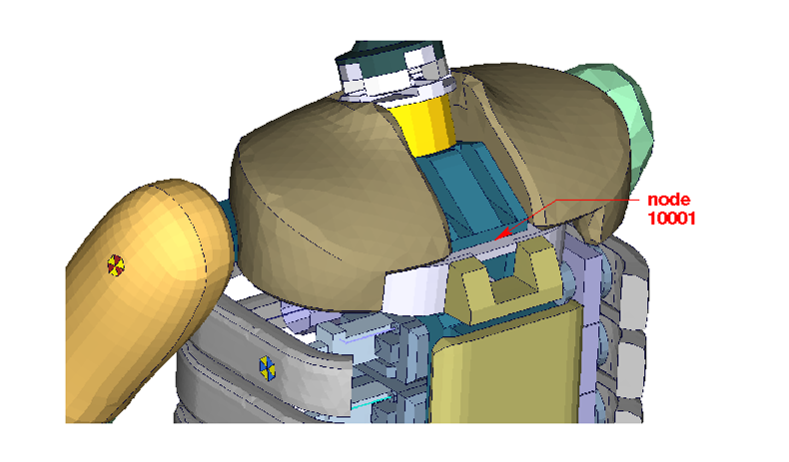

Node for extracting Upper spine acceleration


Node 10001, which is marked in the figure above, is part of the lower plate of the neck bracket. An accelerometer is defined at this node.

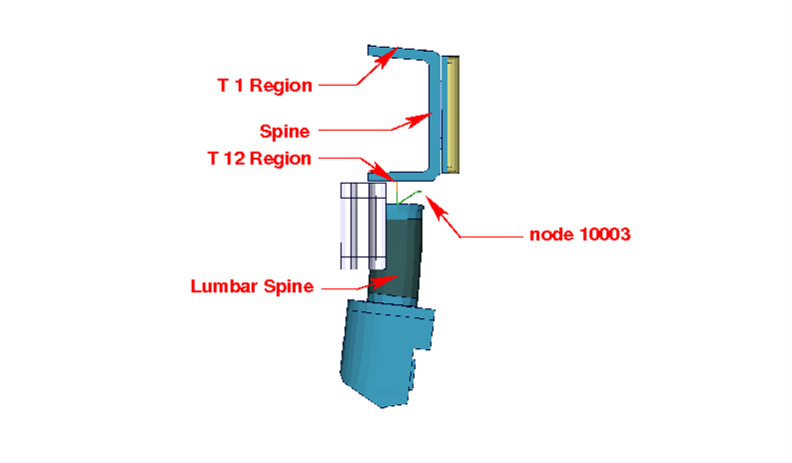

Node for extracting Lower spine acceleration


The figure shows parts of the dummy model from the y-direction. Node 10003 is located between the upper spine and lumbar spine. An accelerometer is defined at this node.


Item Node ID Label Component
Upper spine 10001 SPIN0100ERAC y-acceleration
Lower spine 10003 SPIN1200ERAC y-acceleration
