ARP without armrest

The ARP-sled-tests were first introduced with the ES-2/re version 8. More details about the tests can be found here.

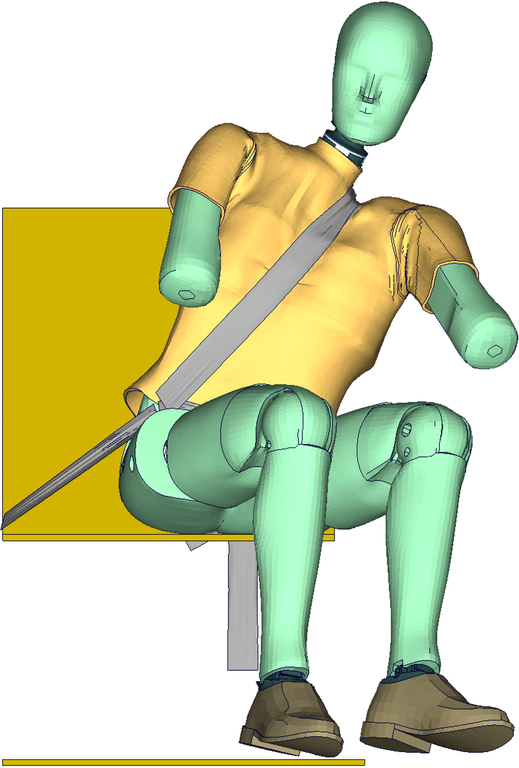

Boundaries

  • Three-point-belt-system
  • Sled without armrest
  • Sled accelerated to high velocity
  • The test data comes from FAA (Federal-Aviation-Administration)
  • ES-2re model was used

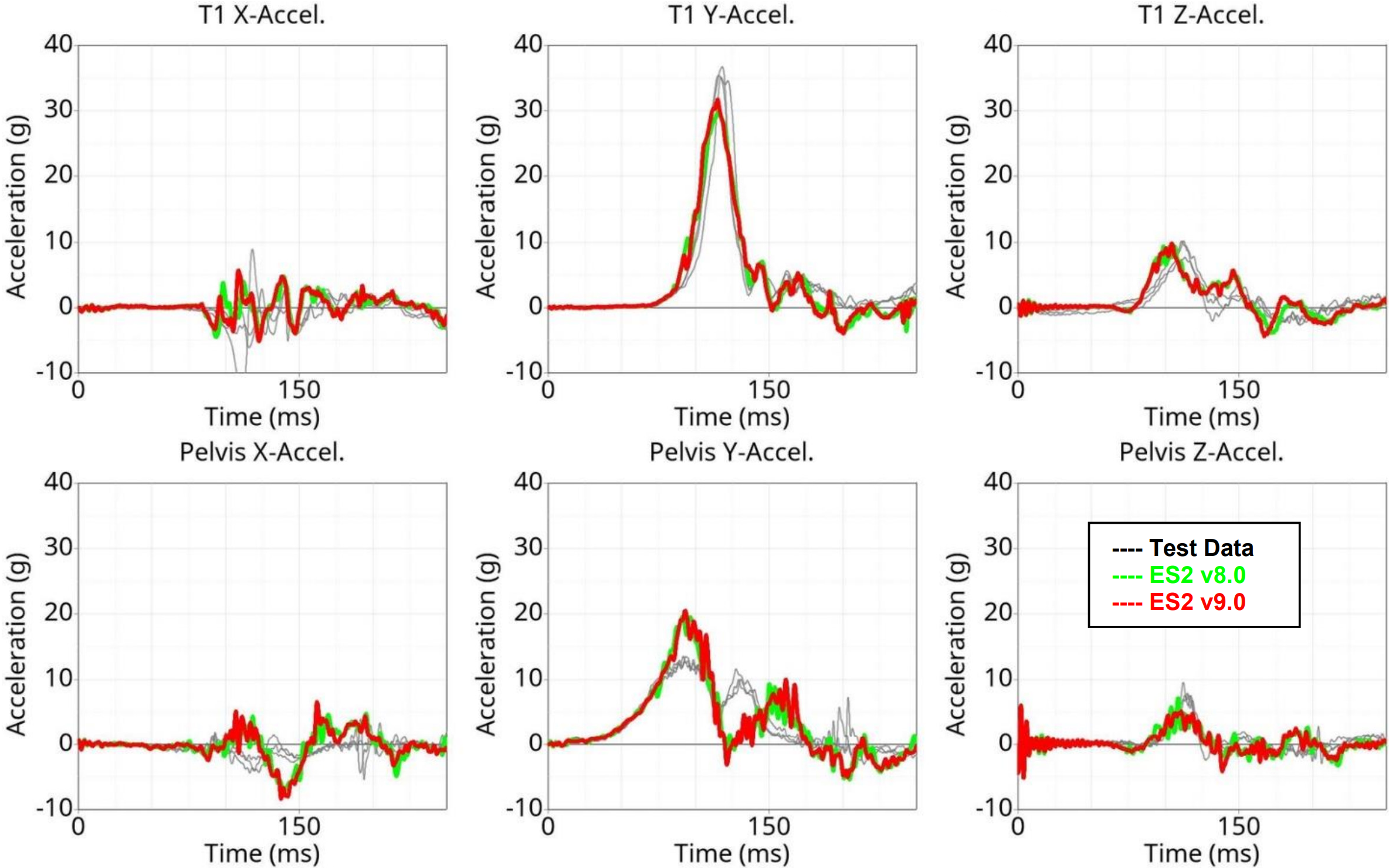

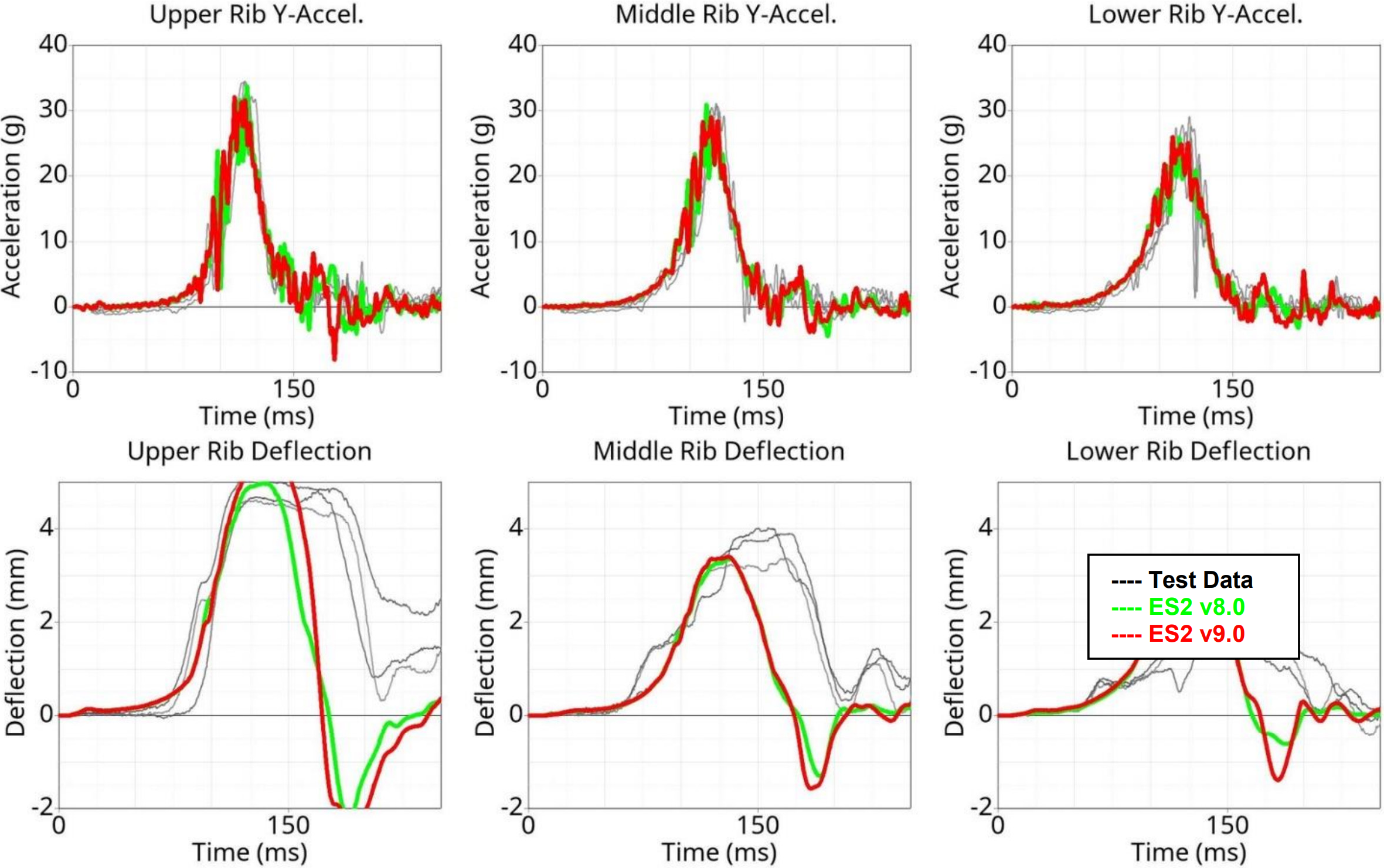

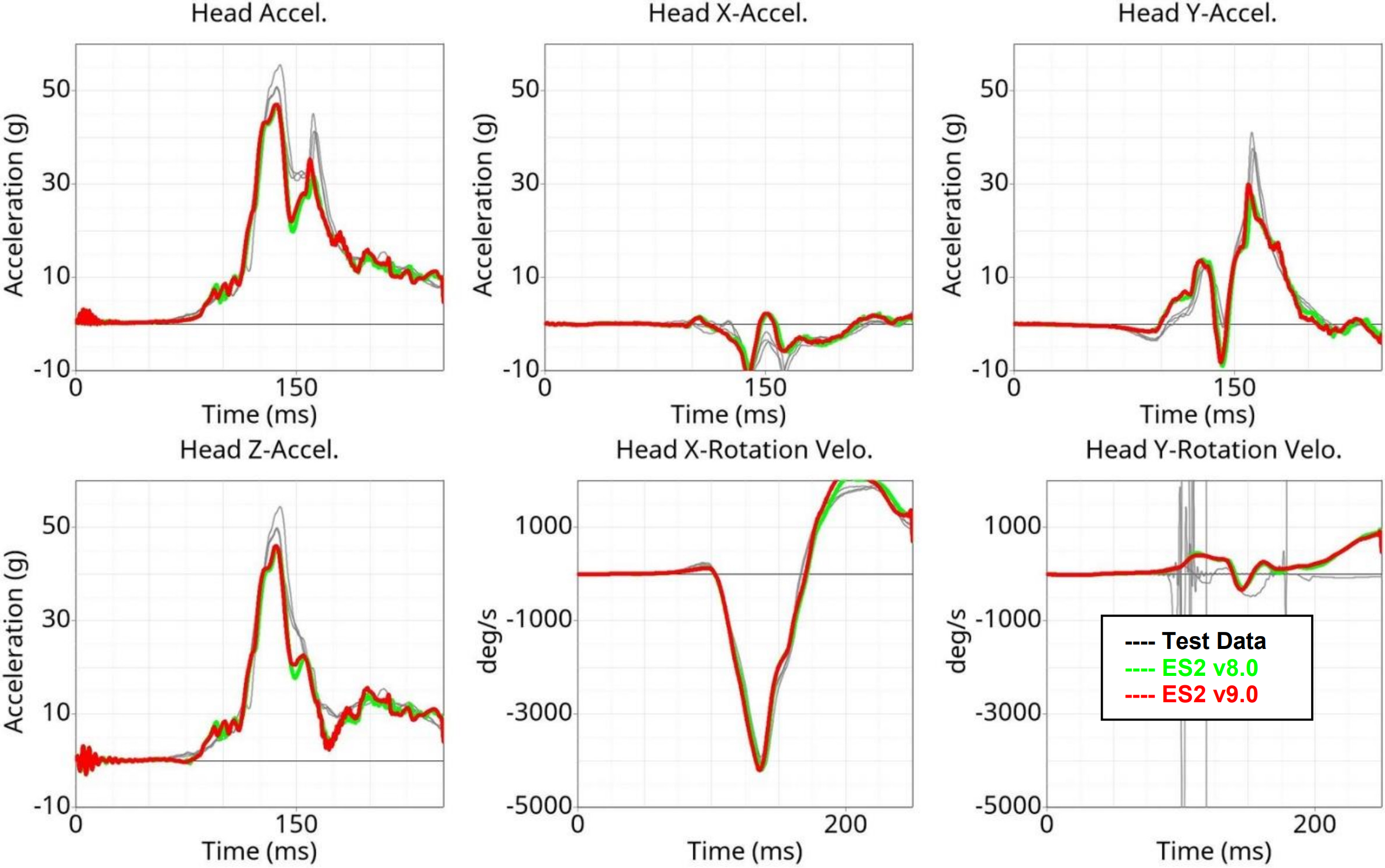

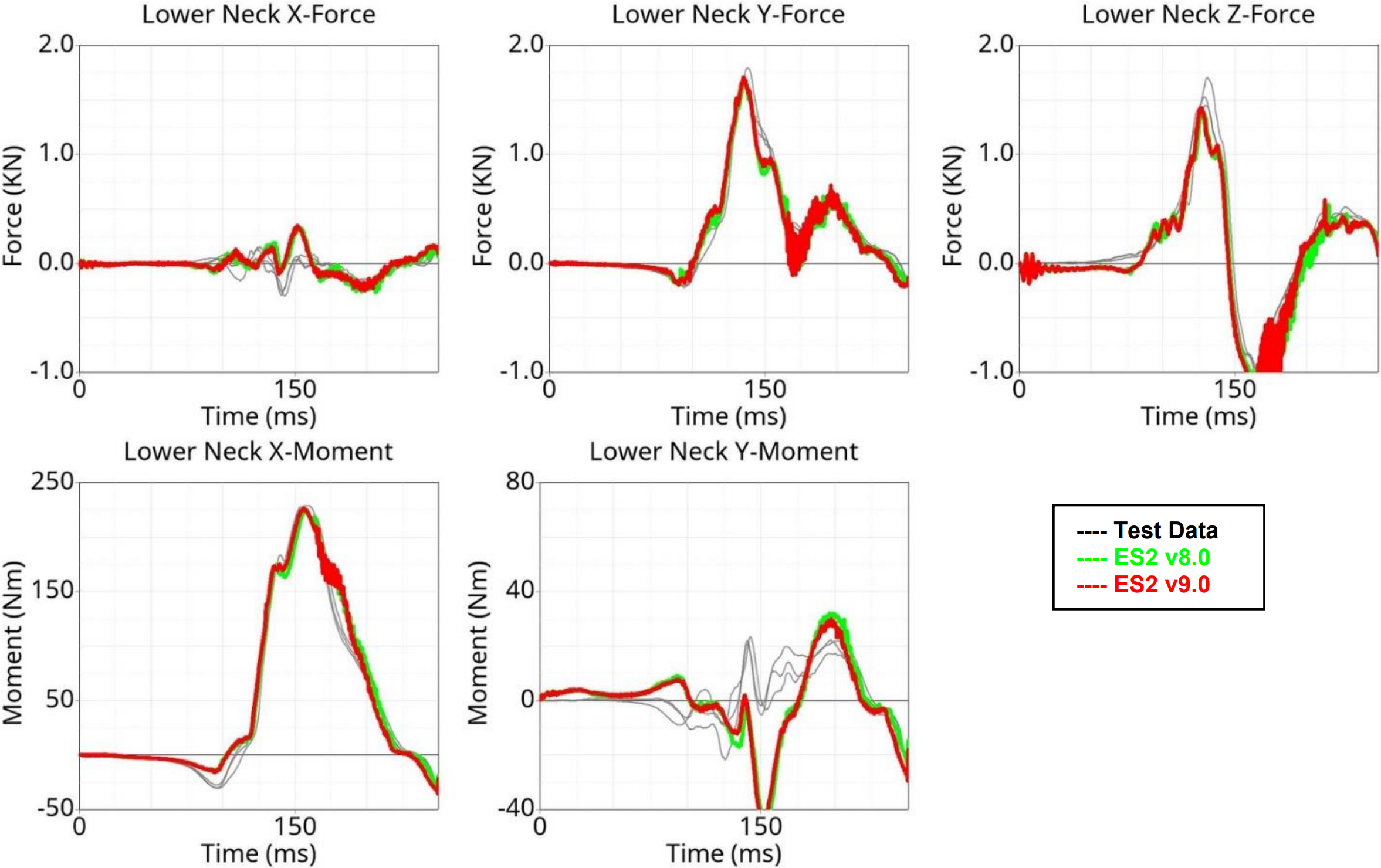

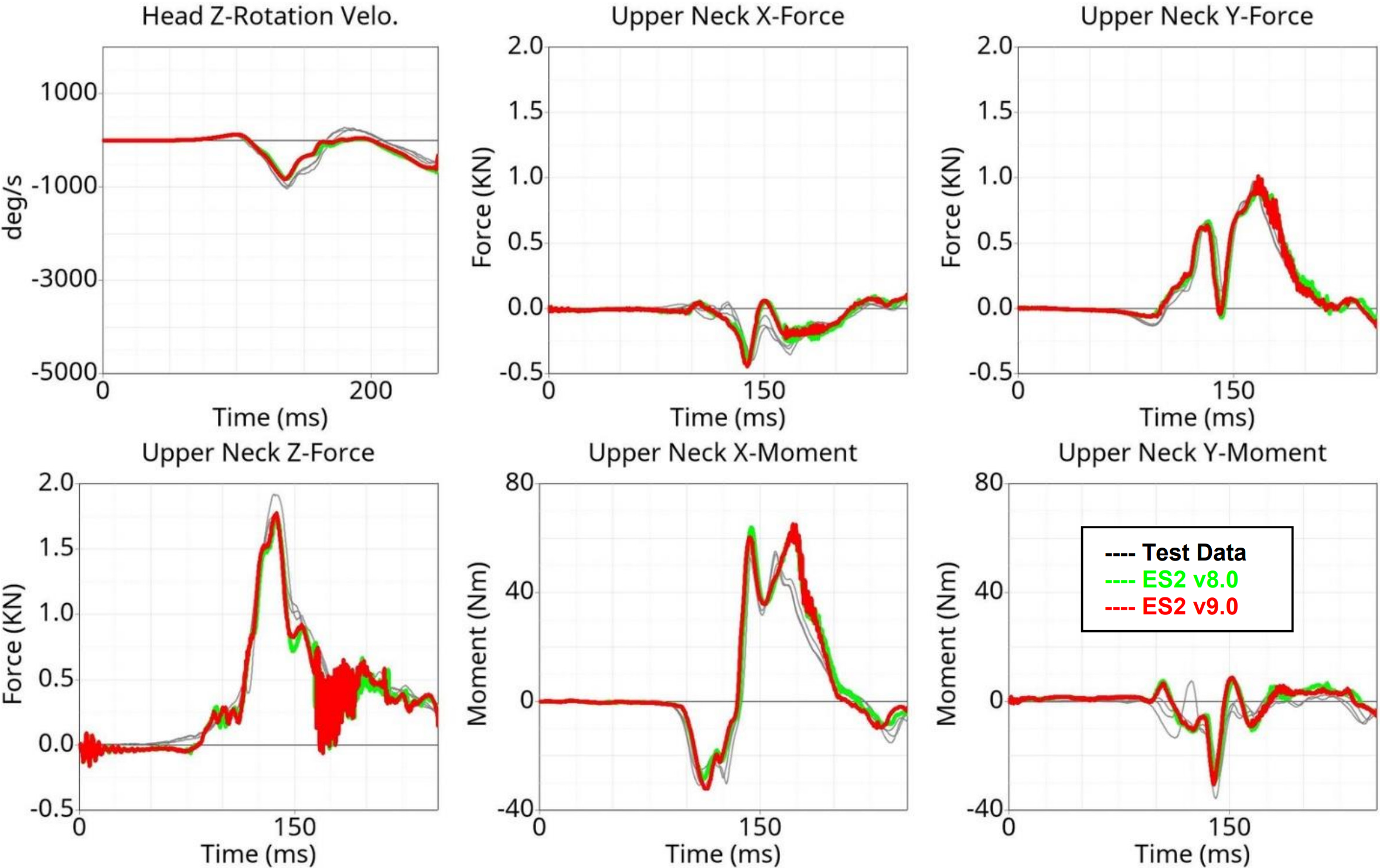

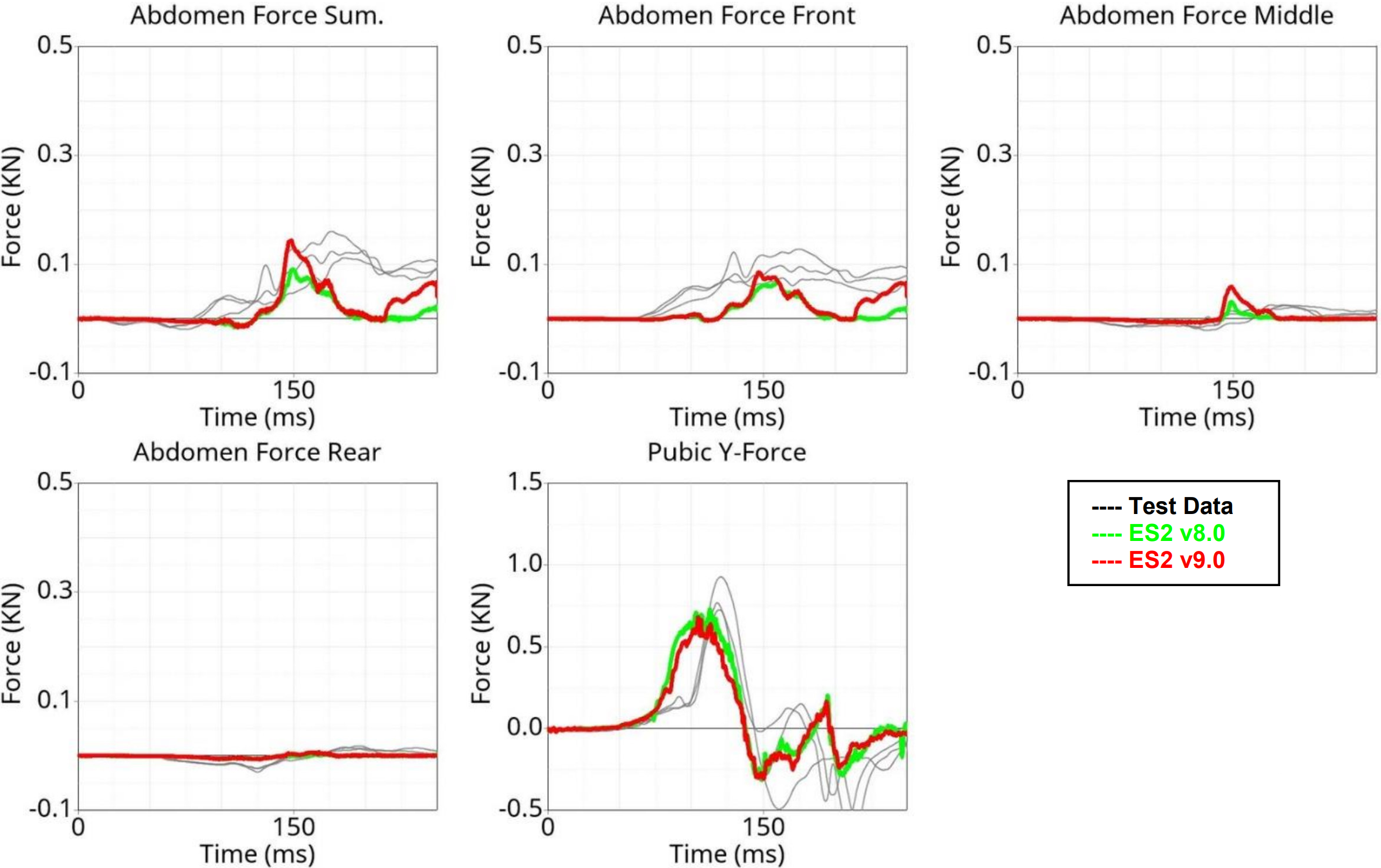

Results
