Femur Stopper Test



                                     Femur_stopper_test_01         Femur_stopper_test_02



Femur stopper test

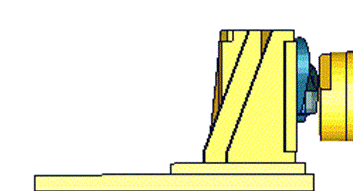

The femur stopper is fixed on a test block as shown in the figure above. It is impacted by a pendulum with 2 velocities.

Between v5.0 and v6.0 are no changes in the femur stops. Due to this, the results of the v6.0 are compared to a previous version of the femur stop which showed different results. Results of v5.0 and v6.0 are identical.



Results low velocity



FemurStopper_LowVel





Results high velocity



FemurStopper_HighVel
