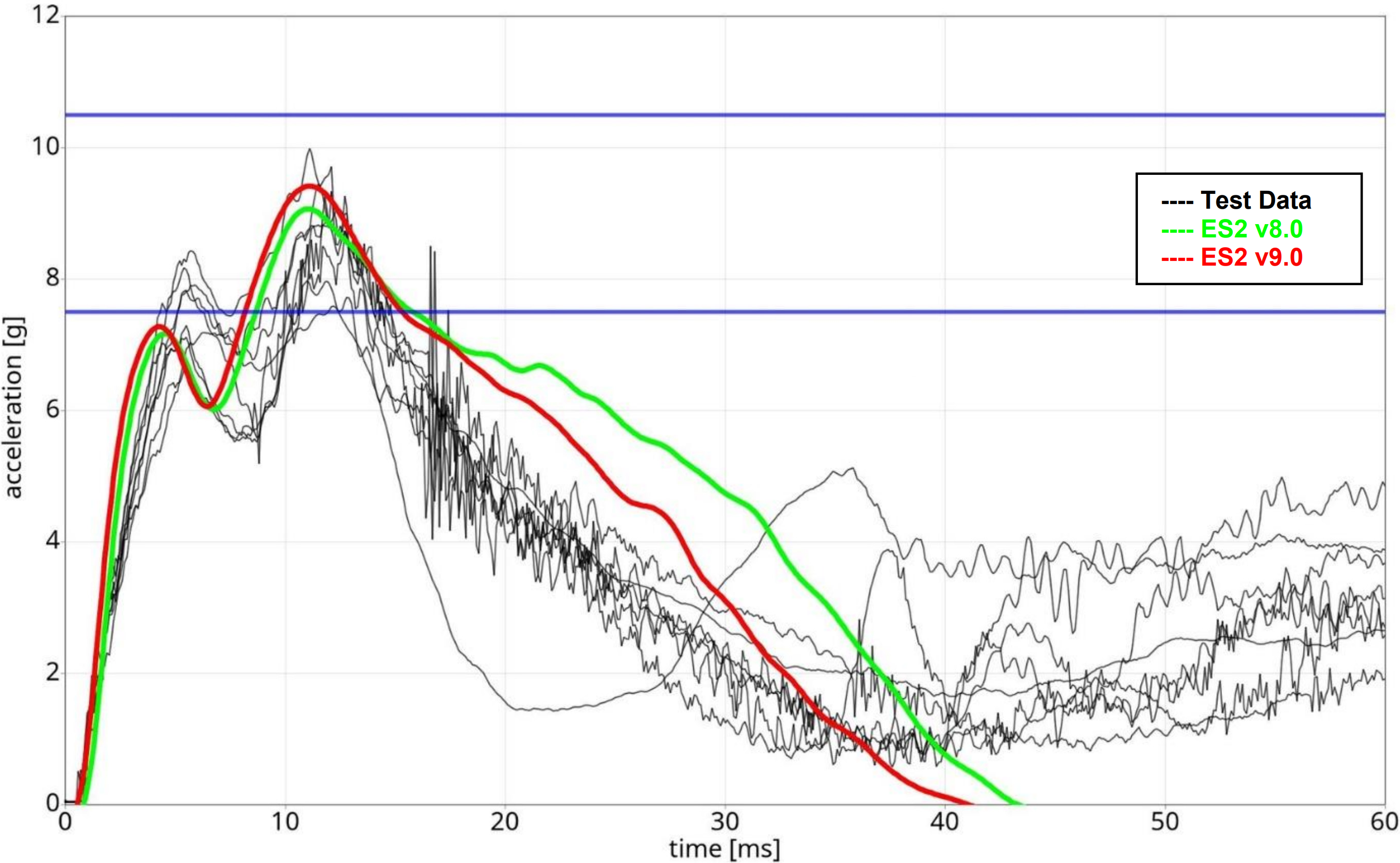

Shoulder Certification

Boundaries:

• Pendulum impacting the shoulder
• Speeds : 4.3 m/s
• Mass : 23.4 Kg
• Arms in 40 degree position
• The pendulum hits the shoulder at the centre pivot axis of the arm.
• ES-2 dummy model used

ES-2 shoulder certification test setup
