Release notes v8.0

Modifications from v8.0.1 to v8.0.2

  • fixed velocity node output in database history

Modifications from v8.0 to v8.0.1

  • fixed head back cover position for ES2
  • removed initial penetrations

Modifications from v7.0 to v8.0

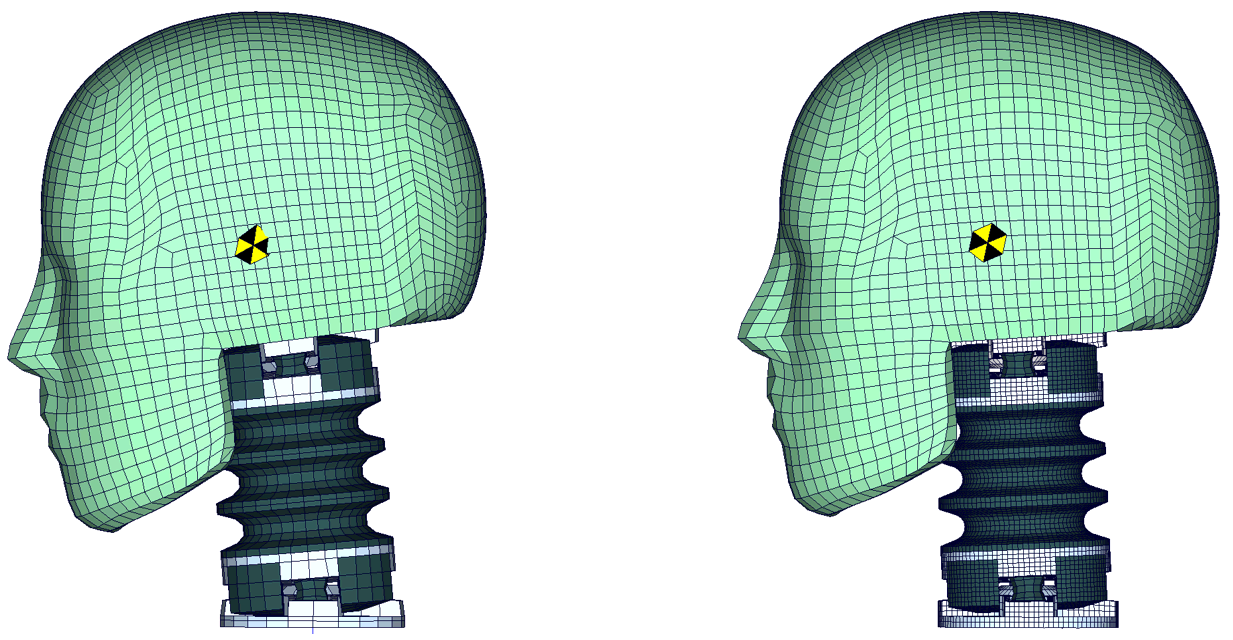

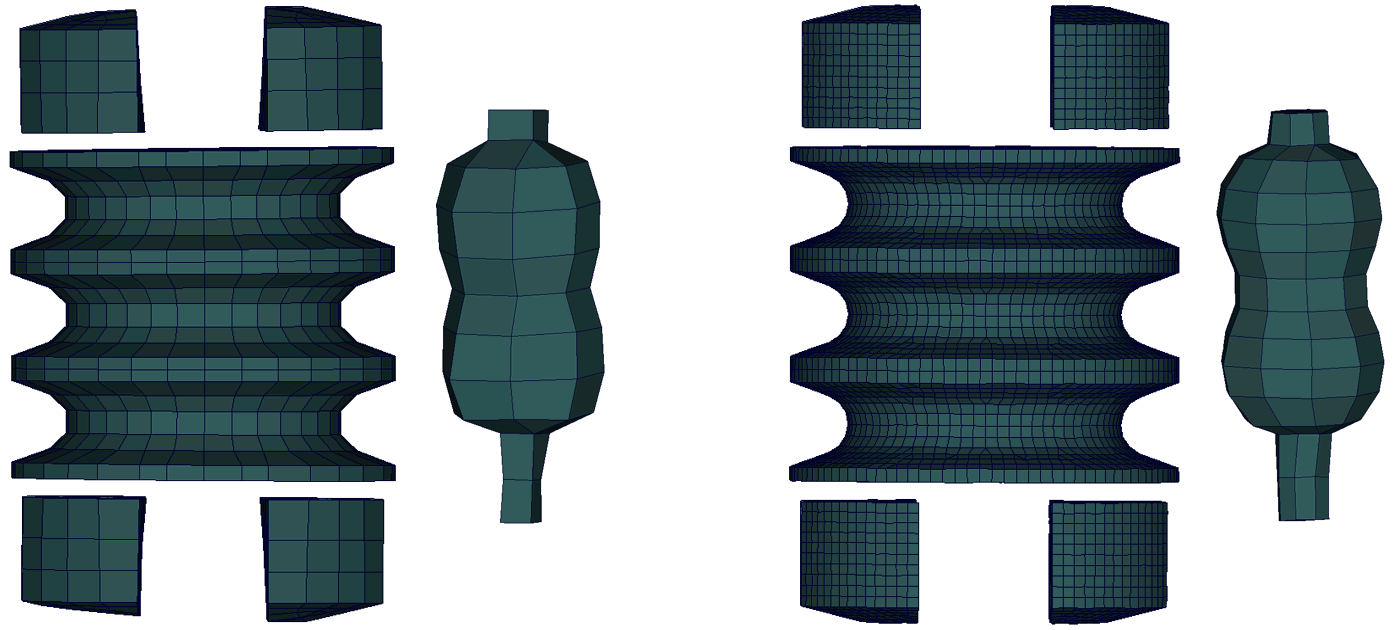

  • New mesh for dummy neck and buffers to increase bending behavior of the neck

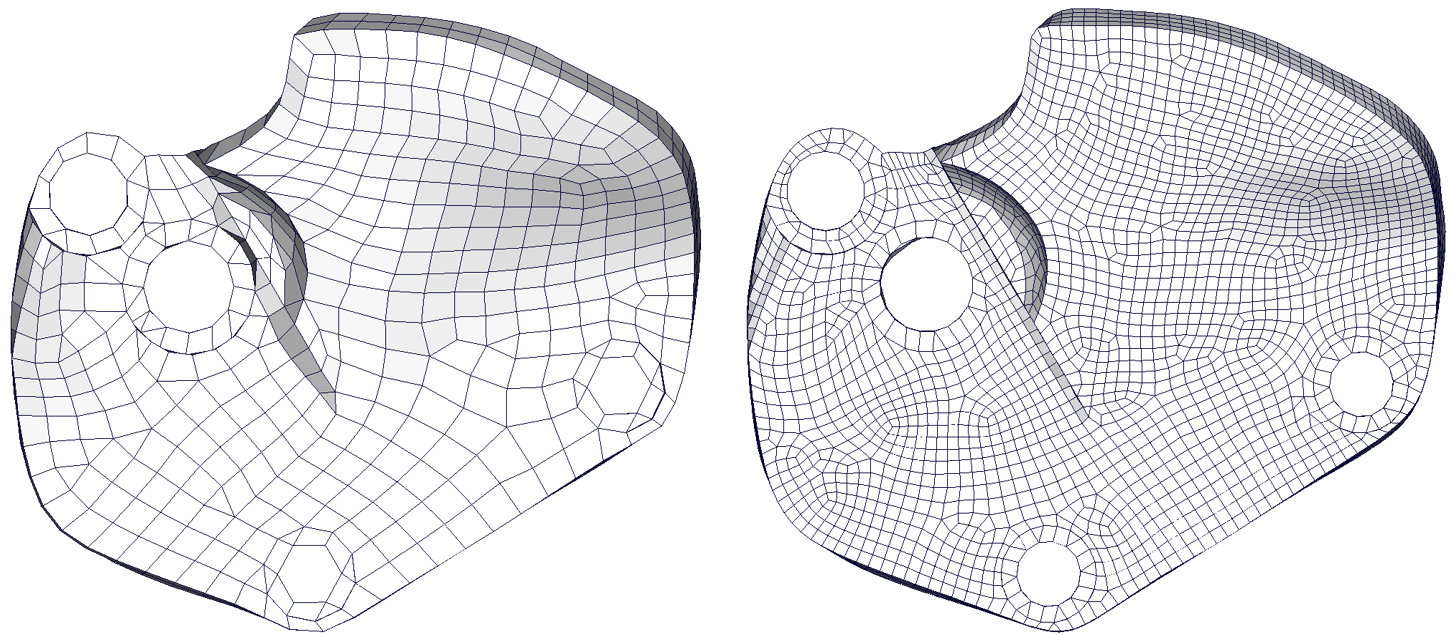

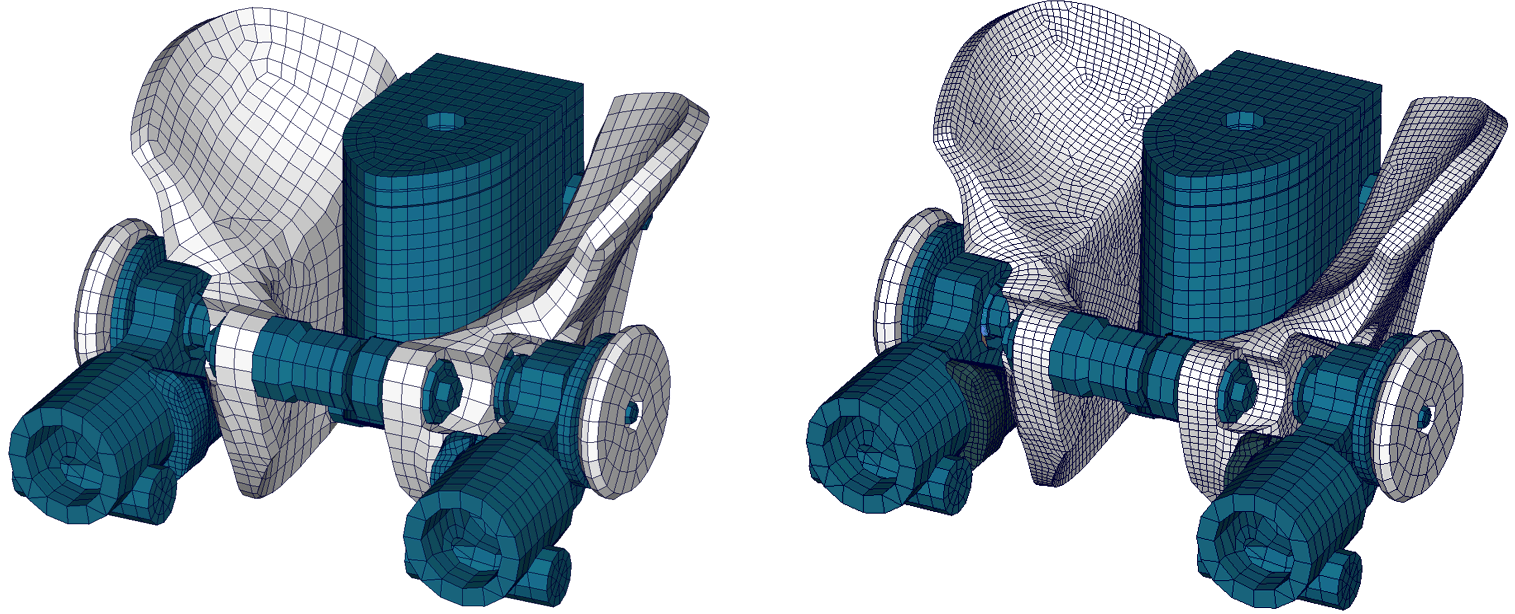

  • New mesh for iliac wings

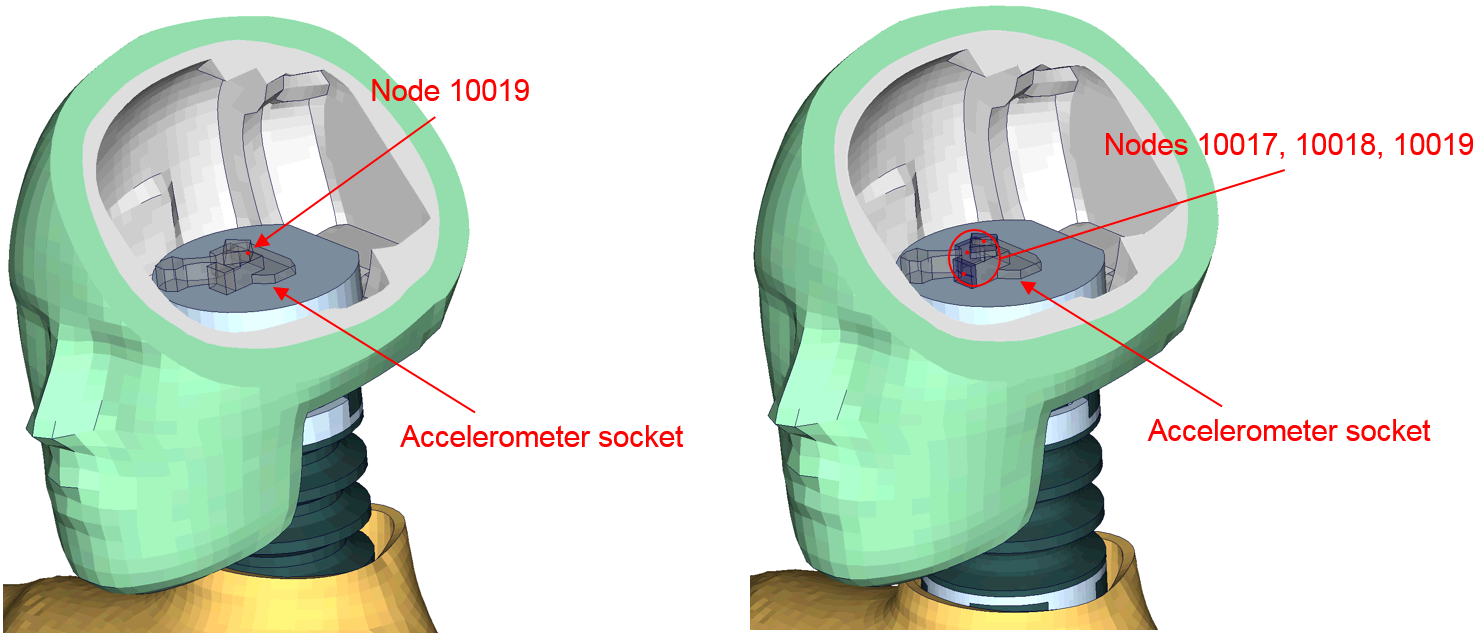

  • Separate positions for head-accelerometers for more realistic head-accelerations

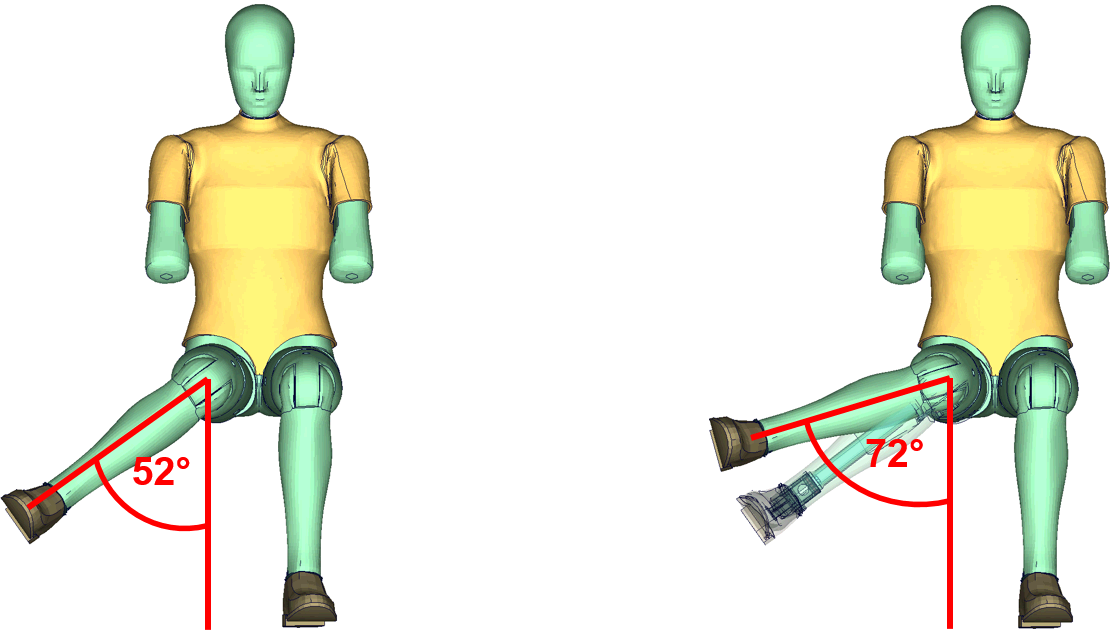

  • Upper leg bone, left and right hip: stop angle of z-axis increased to -72/72 degrees


  • Abdomen-, neck-, pelvis- and iliac-materials adjusted
  • Neck-contact adjusted
  • Joint-stiffness adjusted

Additional remarks:

  • Validation and calibration test models were improved
  • New sled-test for validation was added (ARP-sled-test)
