Rib Accelerations

  • Rib accelerations, left

Rib_acceleration_left

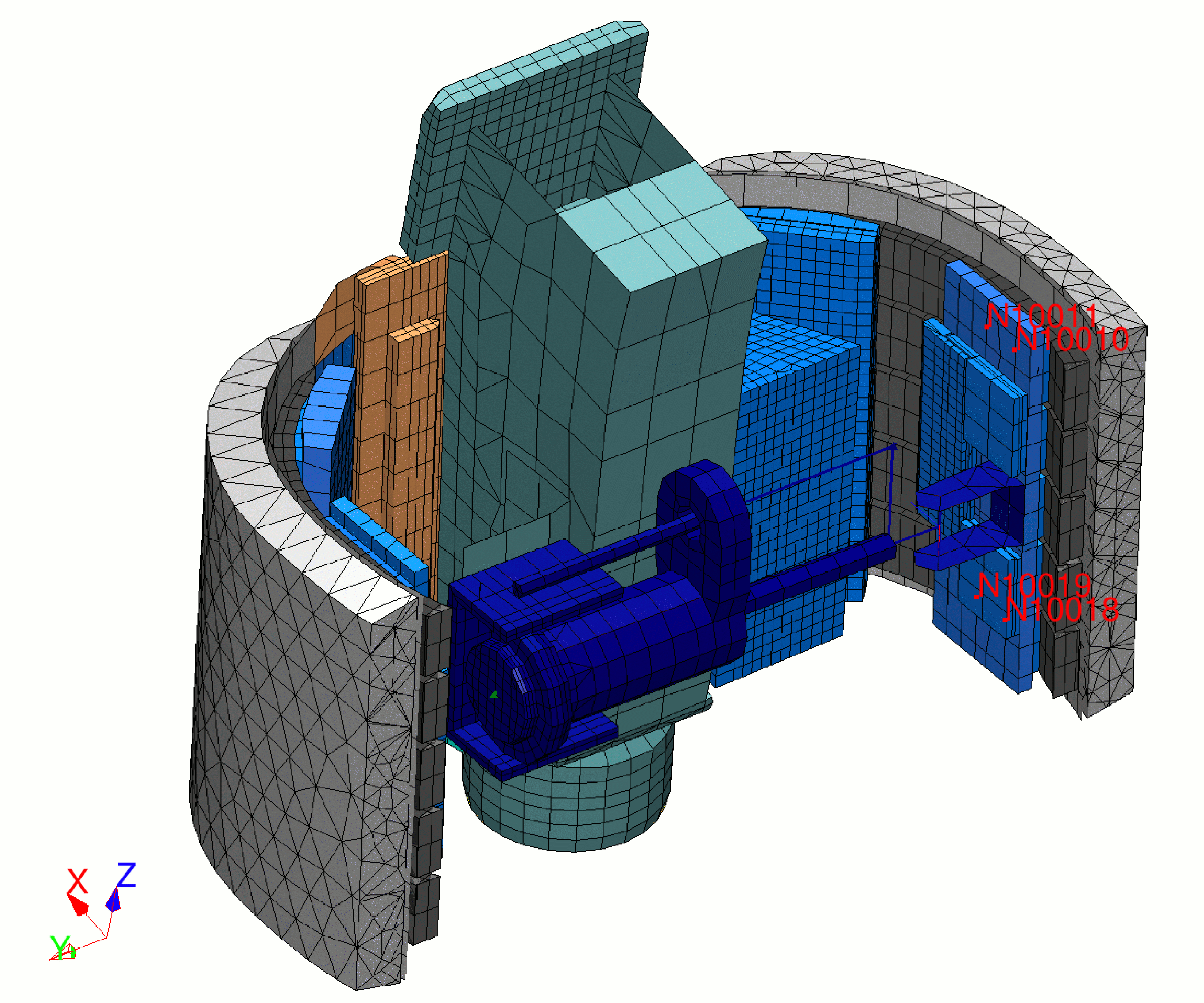

Fig. 1: Rib Acclerations (Left)



Item Node ID
Component
Upper rib left, primary
10010 y-acceleration
Upper rib left, redundant
10011 y-acceleration
Lower rib left, primary 10018 y-acceleration
Lower rib left, redundant
10019 y-acceleration


  • Rib accelerations, right


Rib_acceleration_right

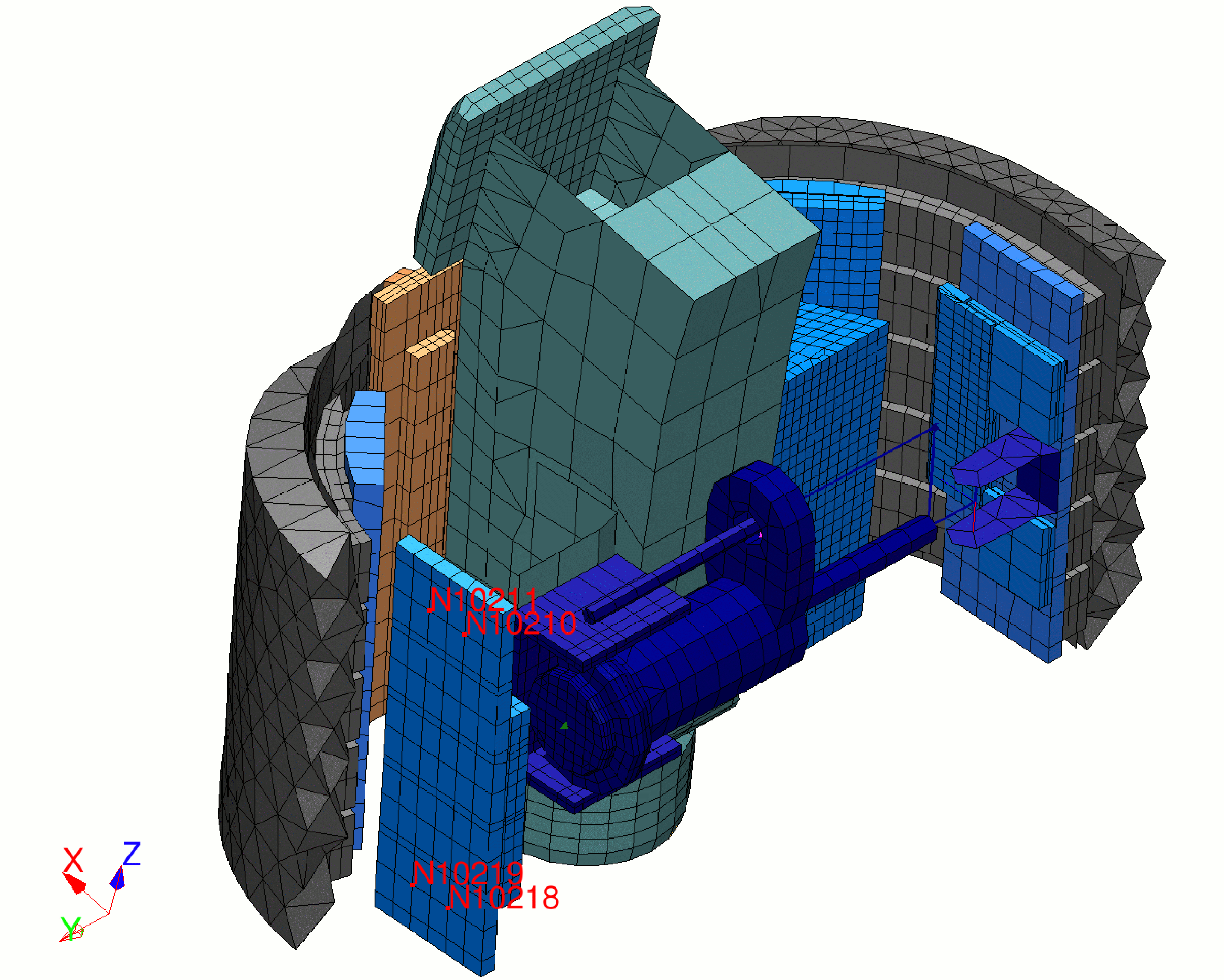

Fig. 2: Rib Acclerations (Right)




Item Node ID
Component
Upper rib right, primary
10210 y-acceleration
Upper rib right, redundant
10211 y-acceleration
Lower rib right, primary 10218 y-acceleration
Lower rib right, redundant
10219 y-acceleration
