Additional Shoulder-Rib test

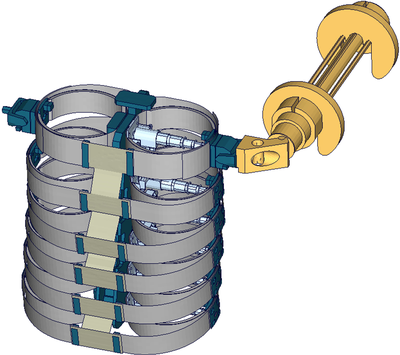

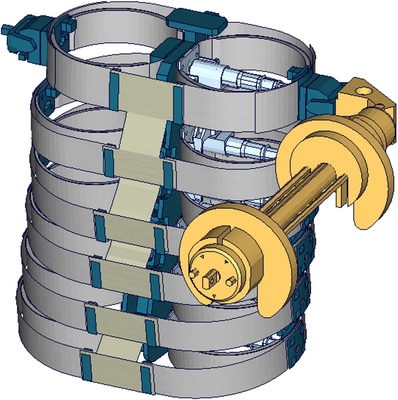

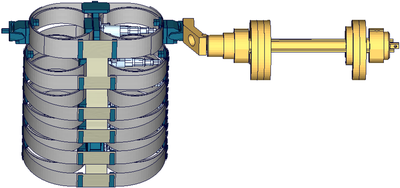

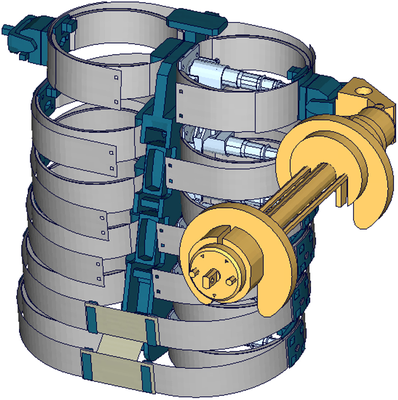

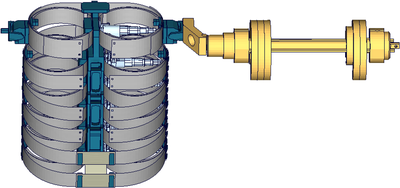

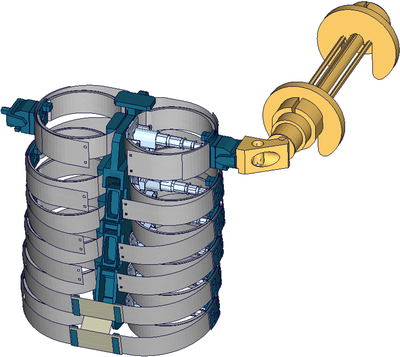

Since the release v5.0 there are additional tests for the shoulder rib in different impact angles, pendulum masses and impact pendulum-velocities. Impact angles include 0, 90 and 180 degrees. There is an impact box as half arm which is fixed on the arm joint. The test includes two types, with sternum and without sternum. This is in order to identify the influence of the sternum. With these tests the WorldSID model can be fine-tuned to capture the rotation of shoulder rib by vertical axis.
0 Degree with sternum

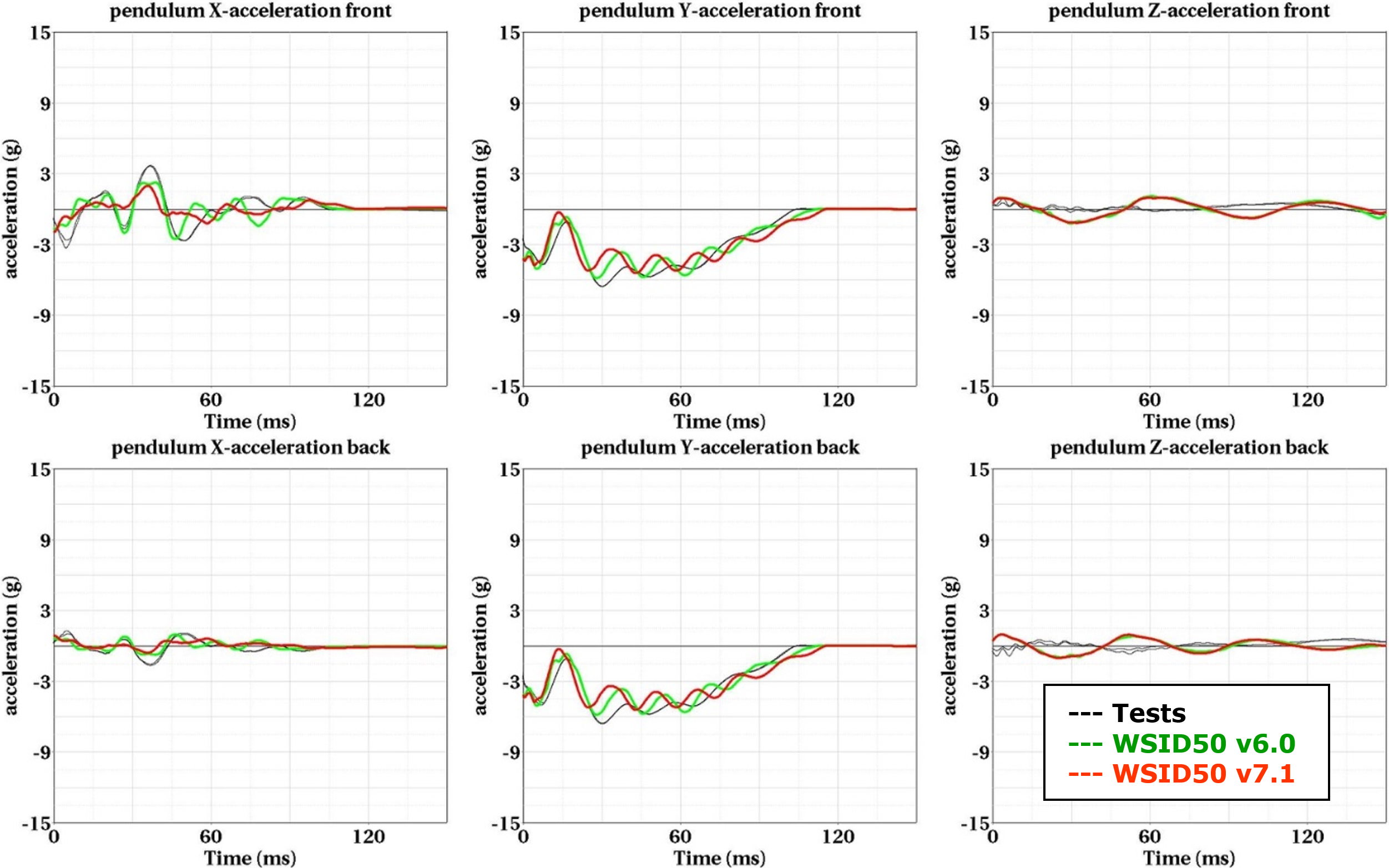

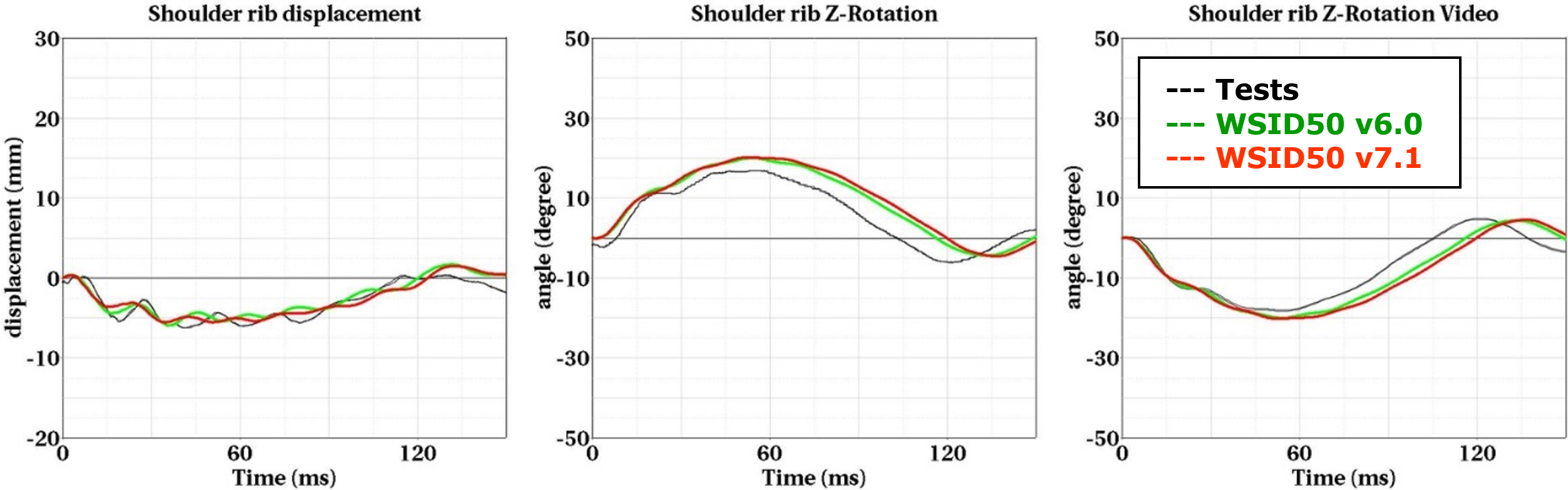

low pendulum mass and low velocity

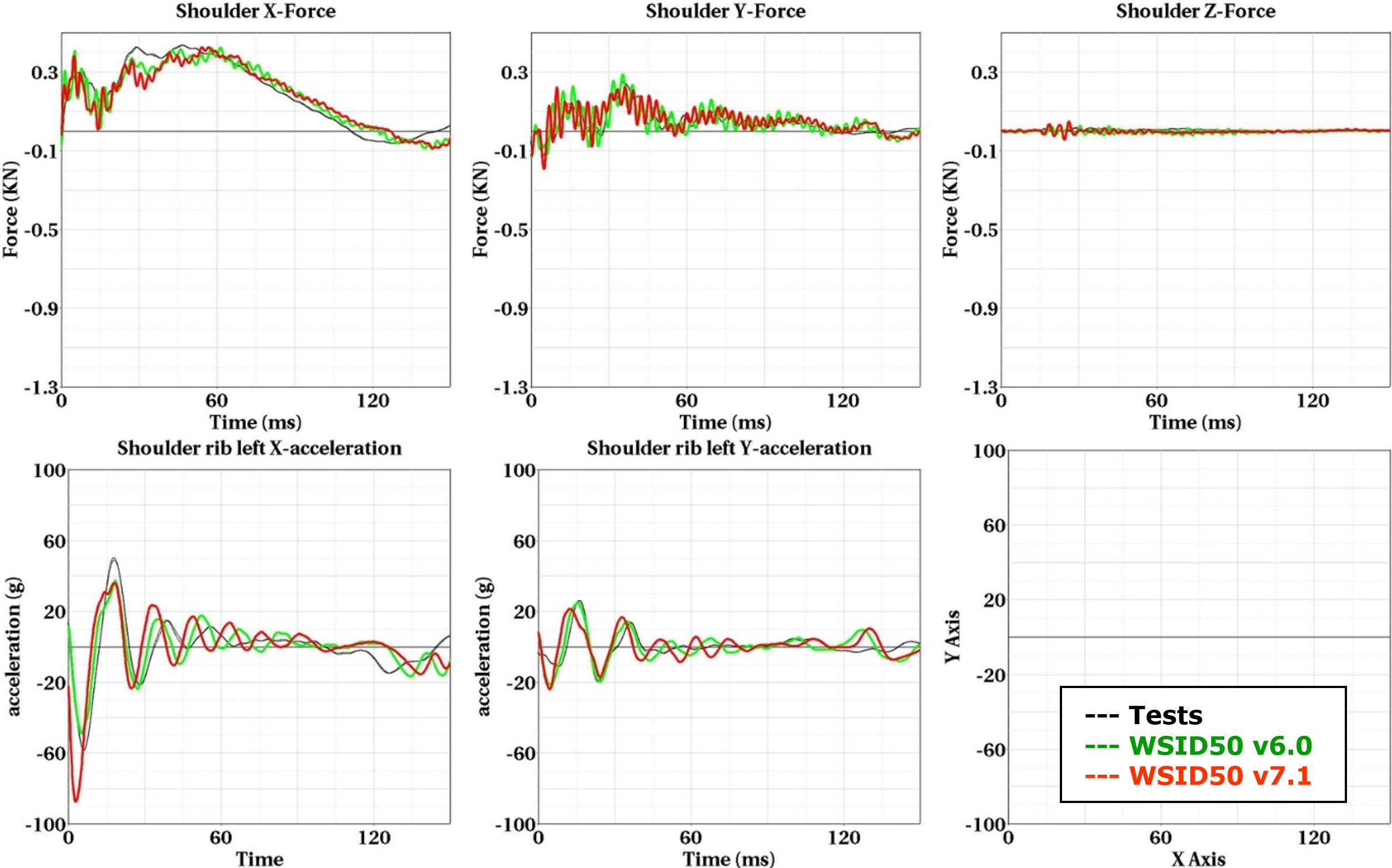

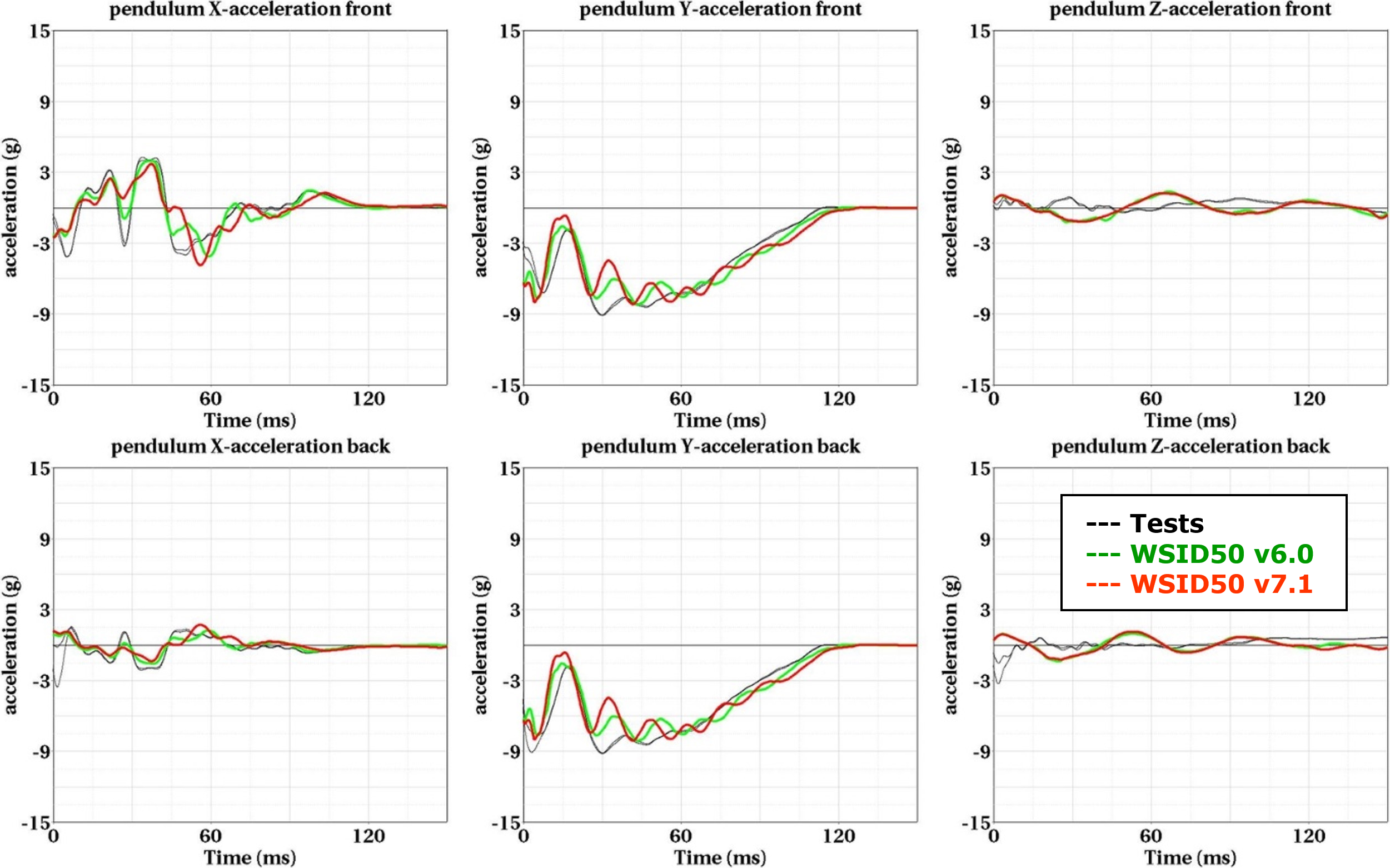

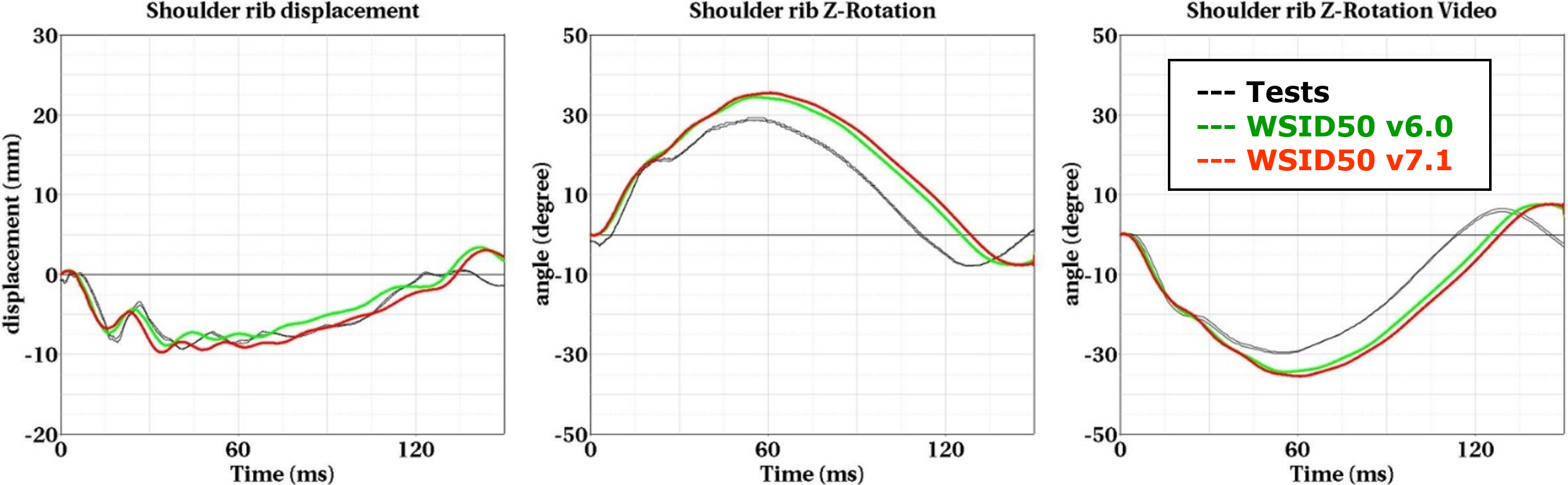

low pendulum mass and high velocity

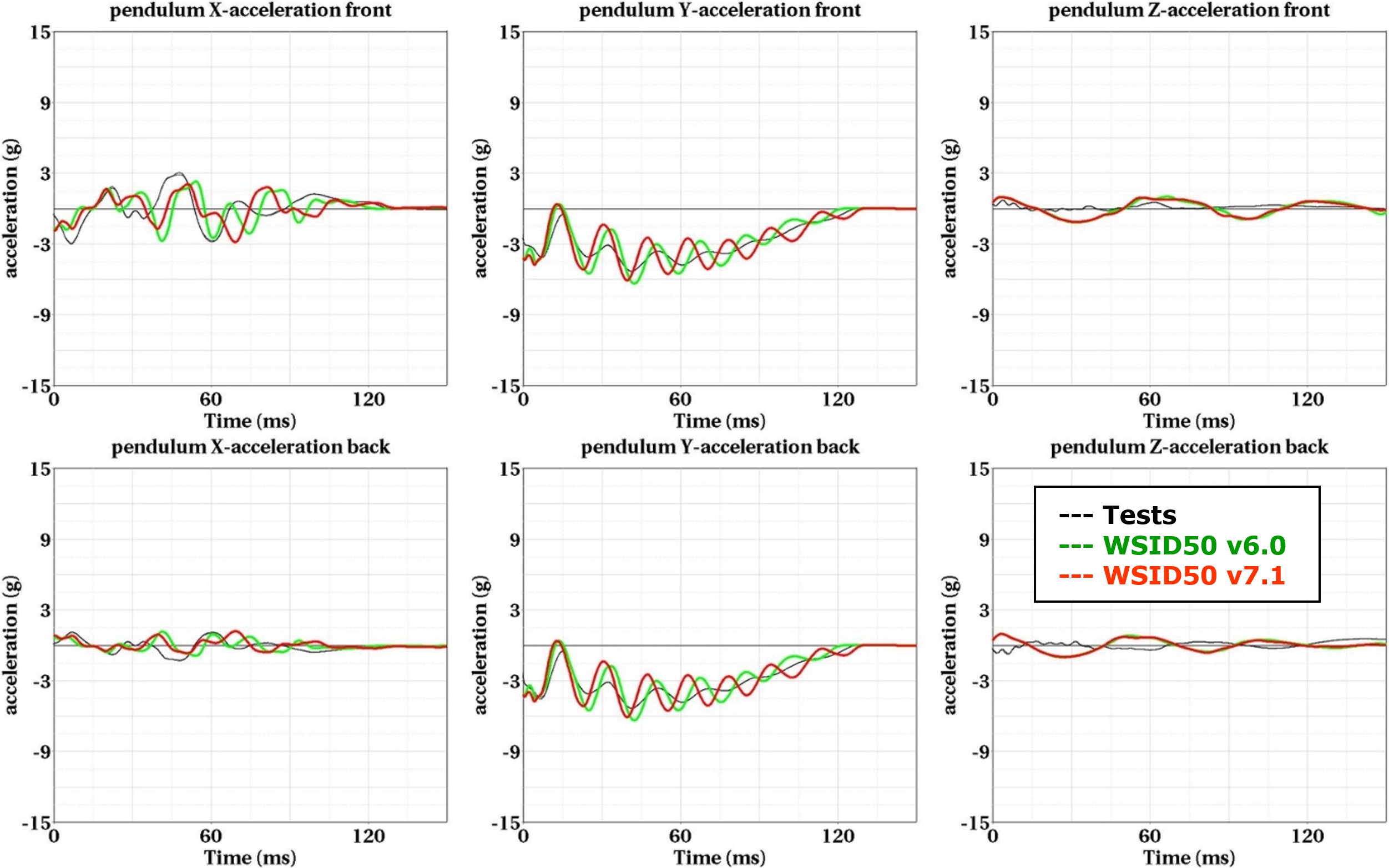

0 Degree without sternum

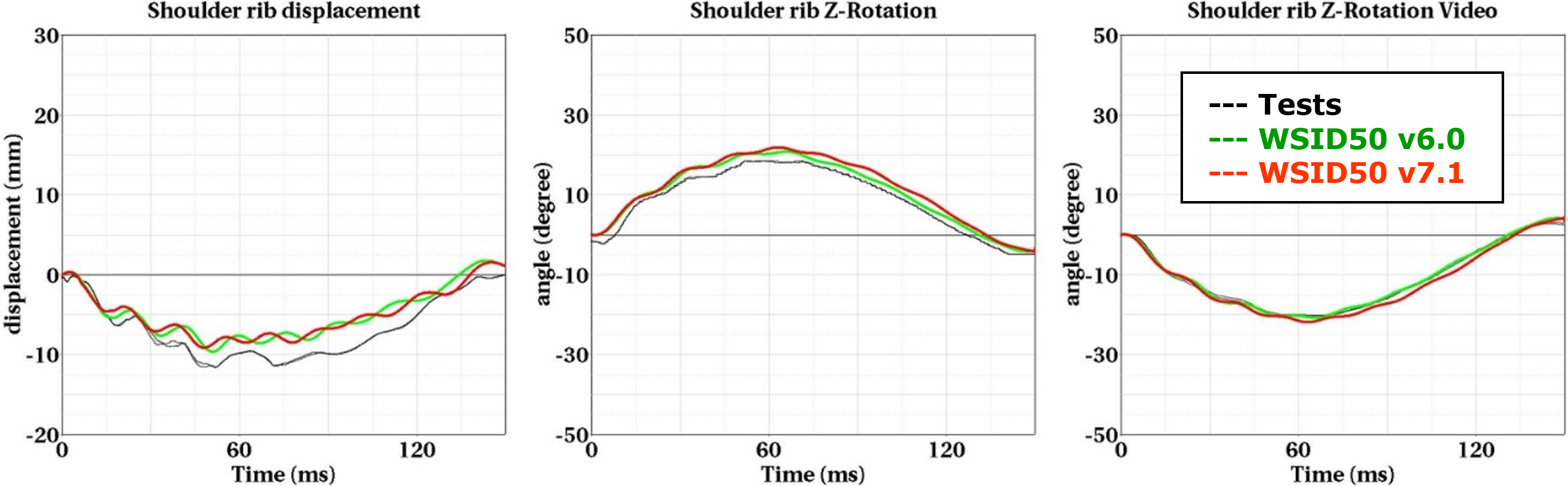

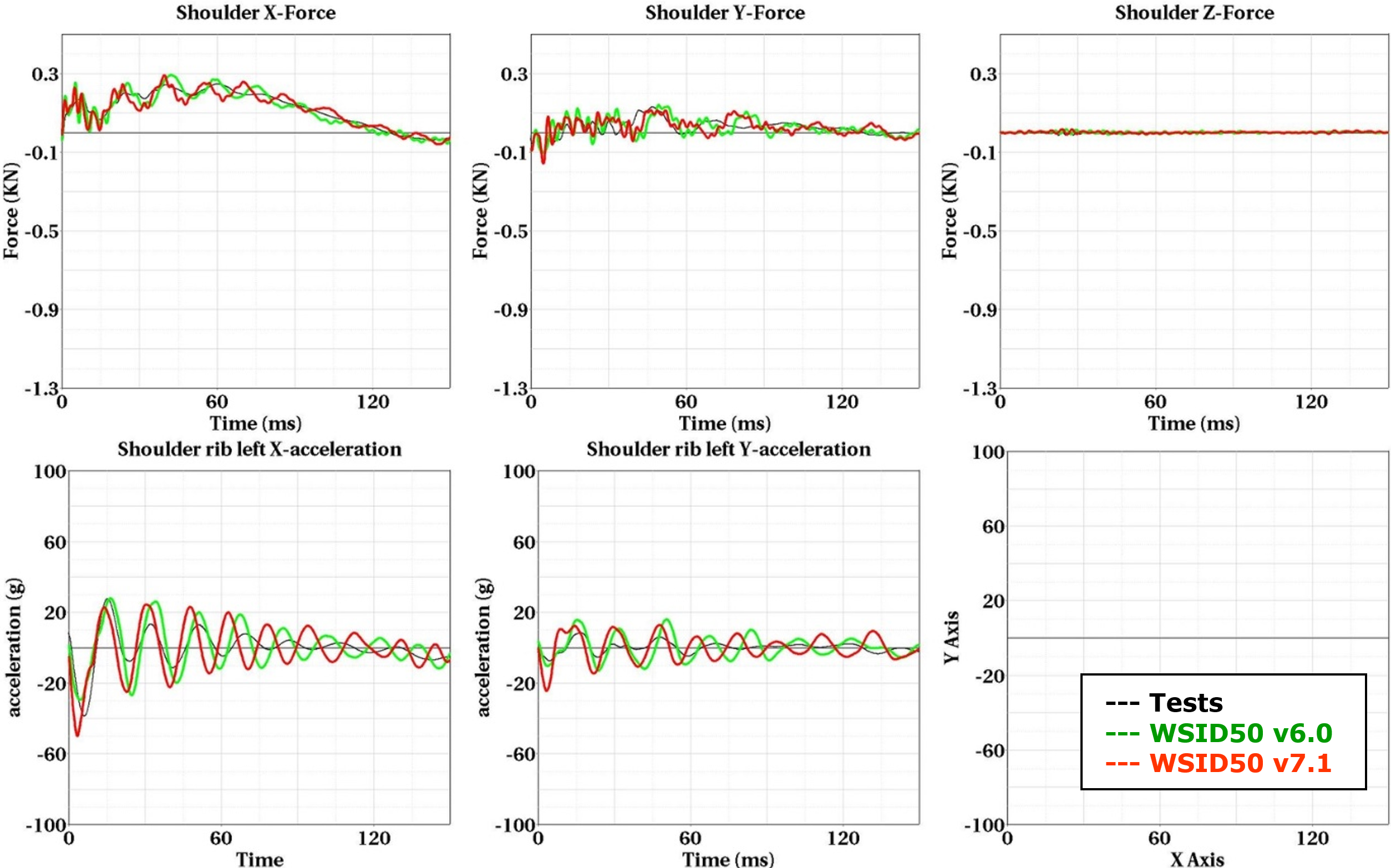

low pendulum mass and low velocity

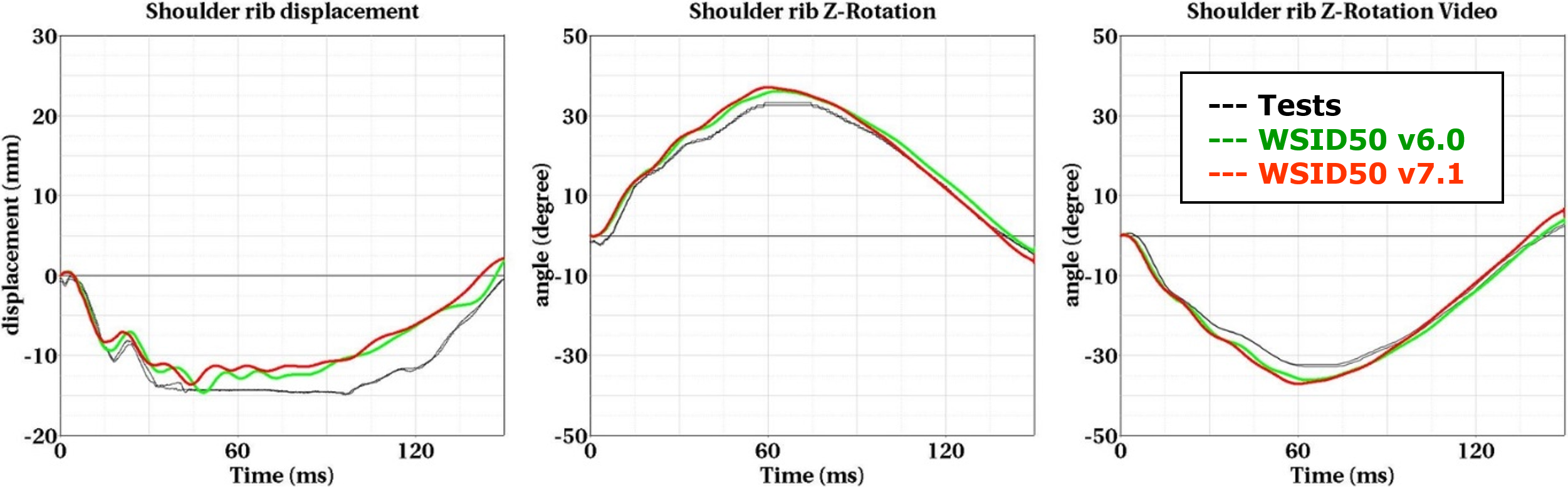

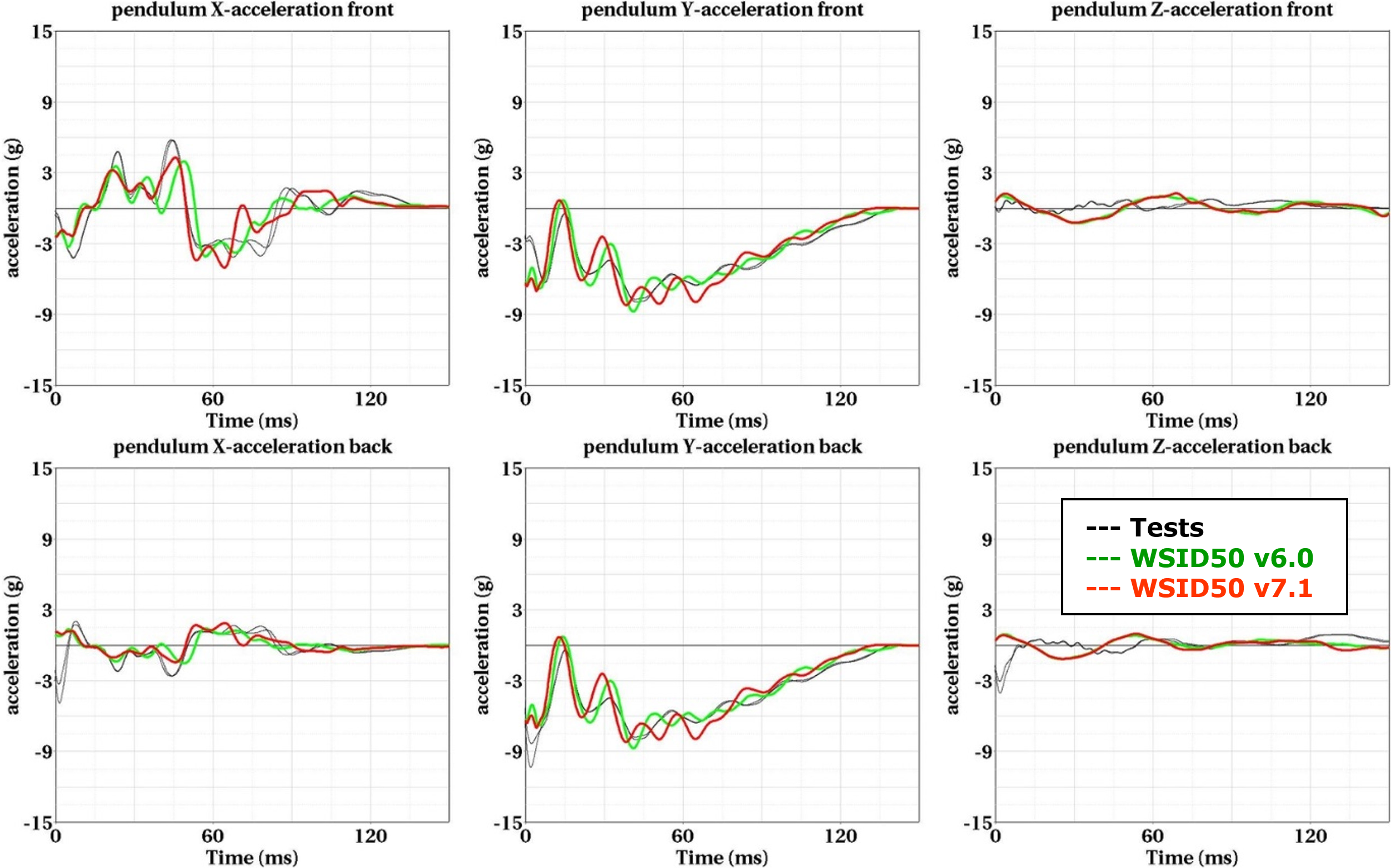

low pendulum mass and high velocity
90 Degree with sternum

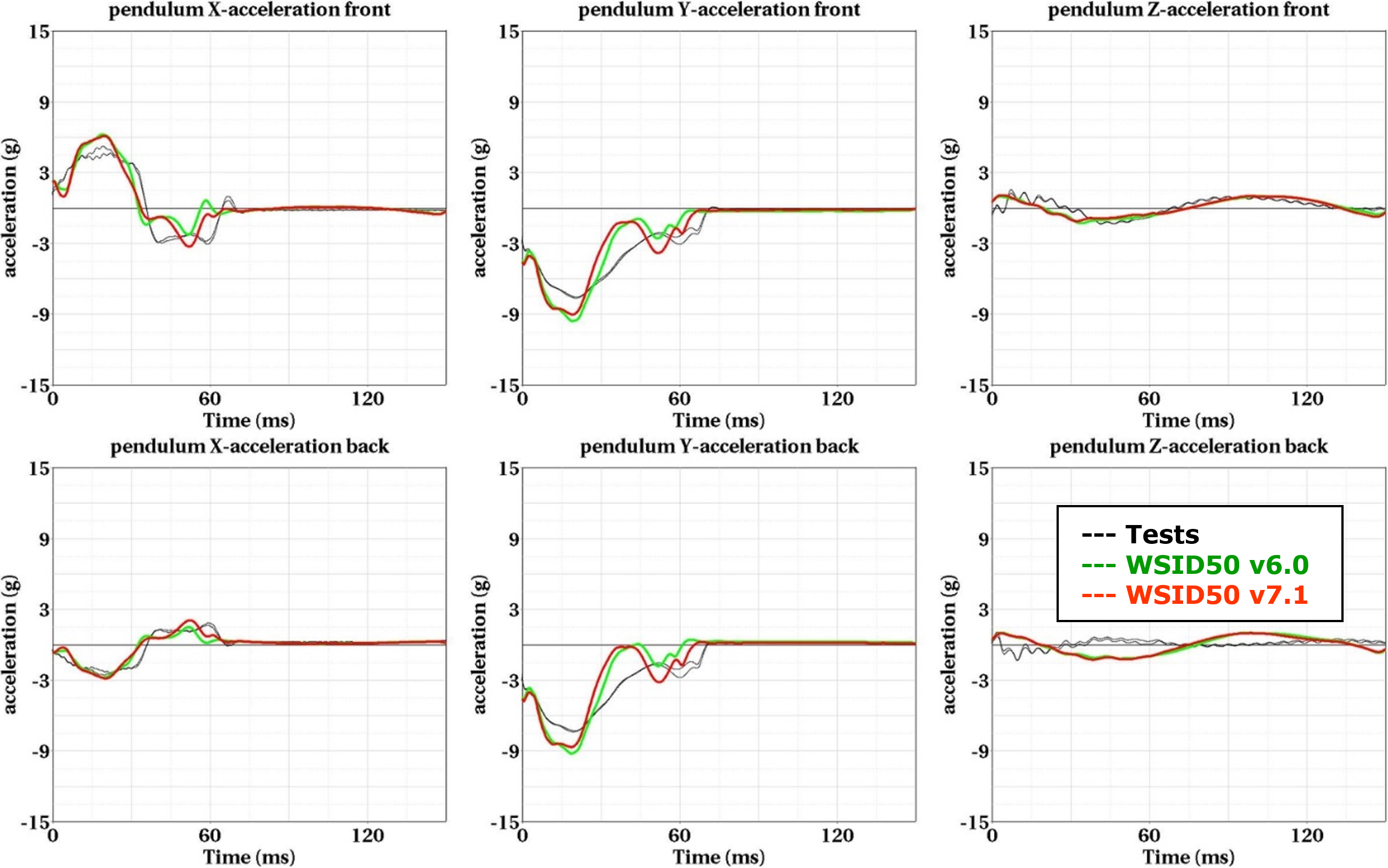

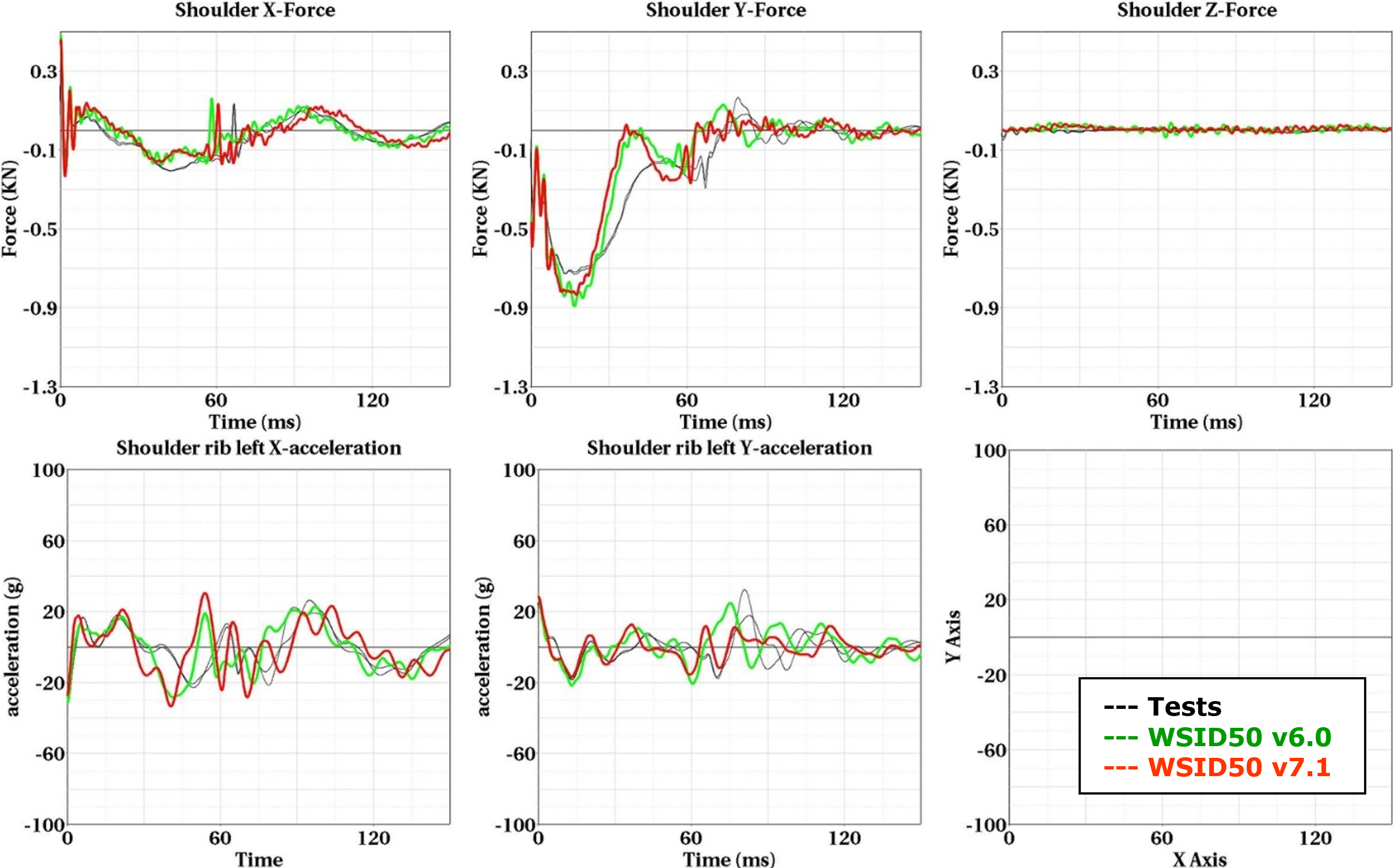

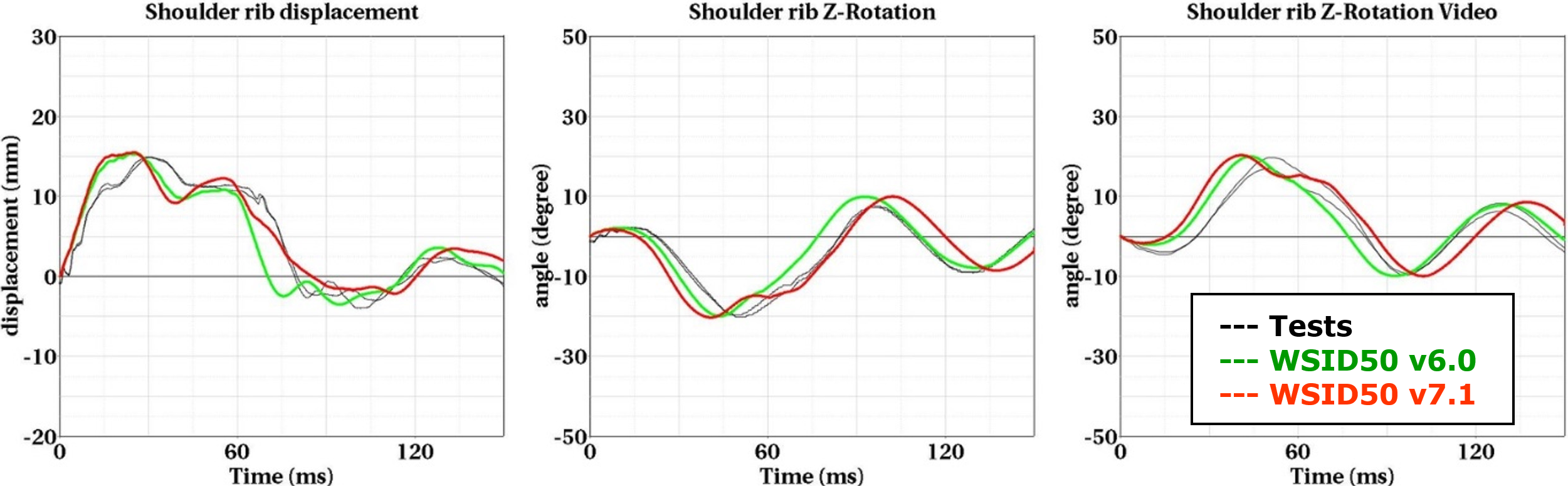

high pendulum mass and low velocity

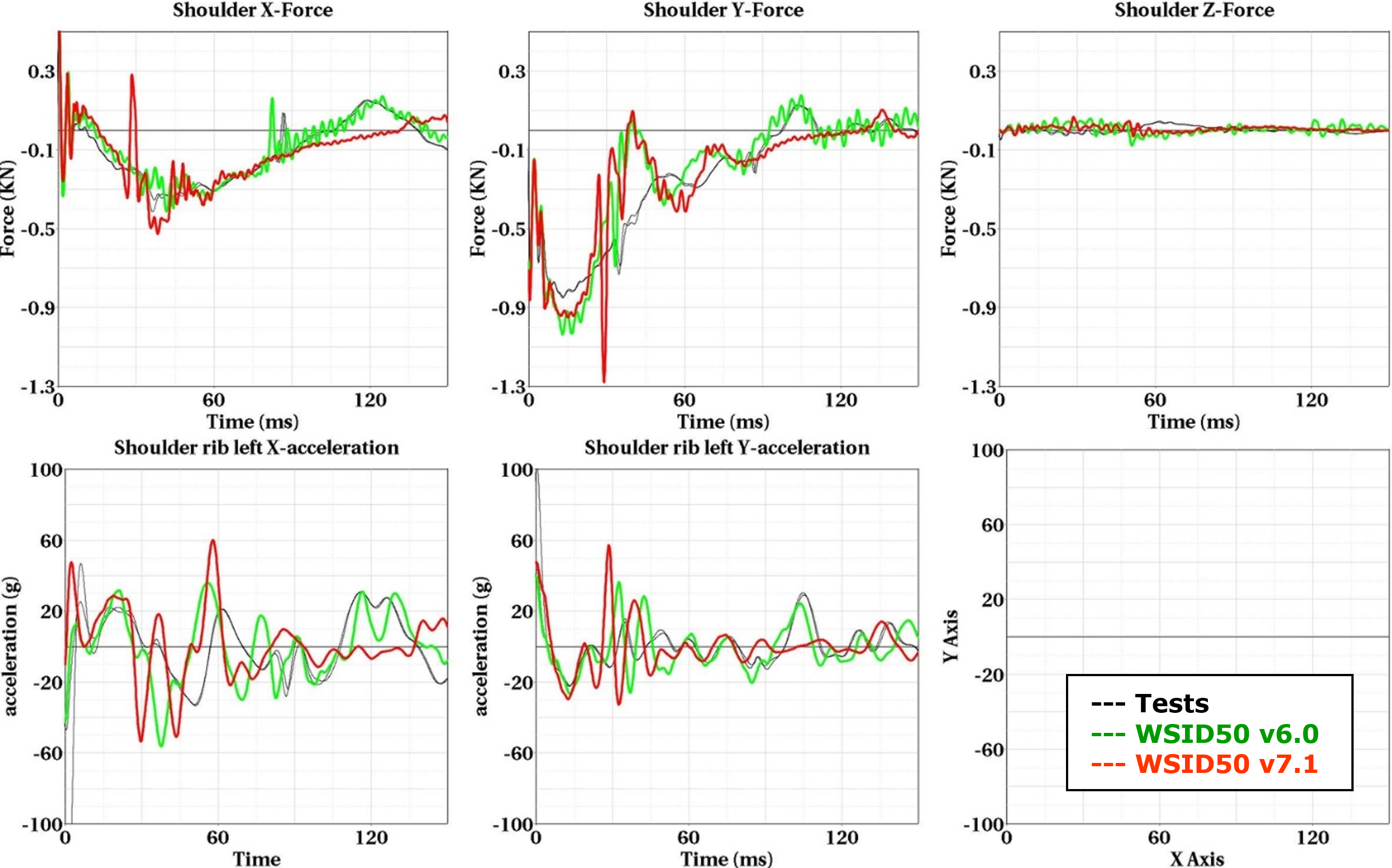

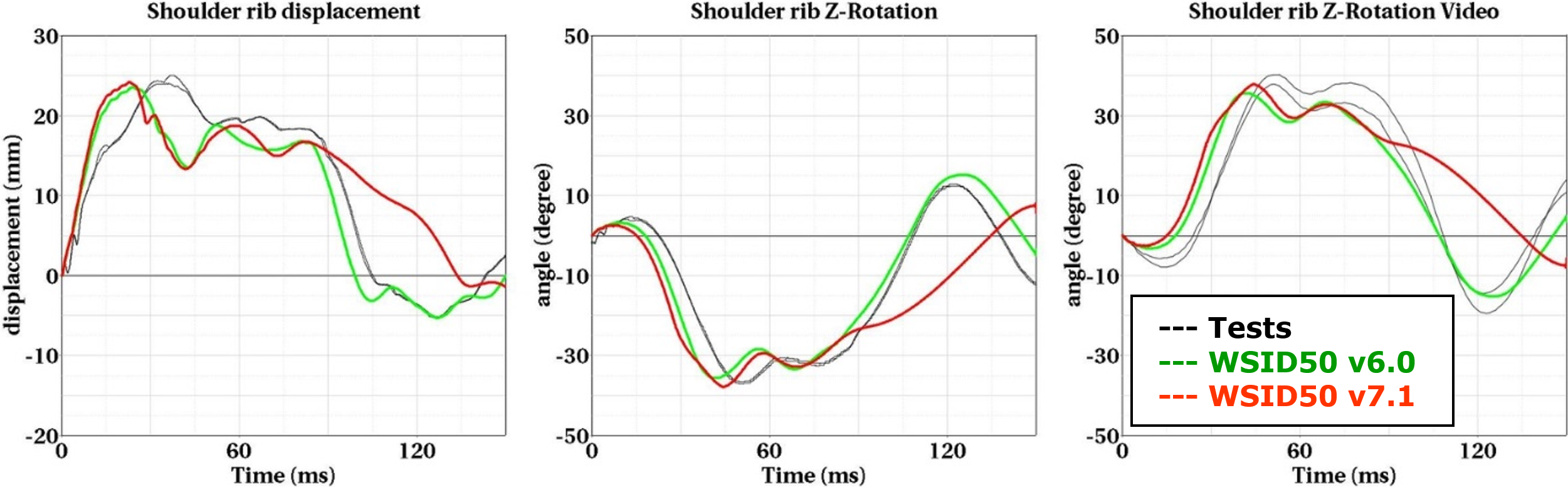

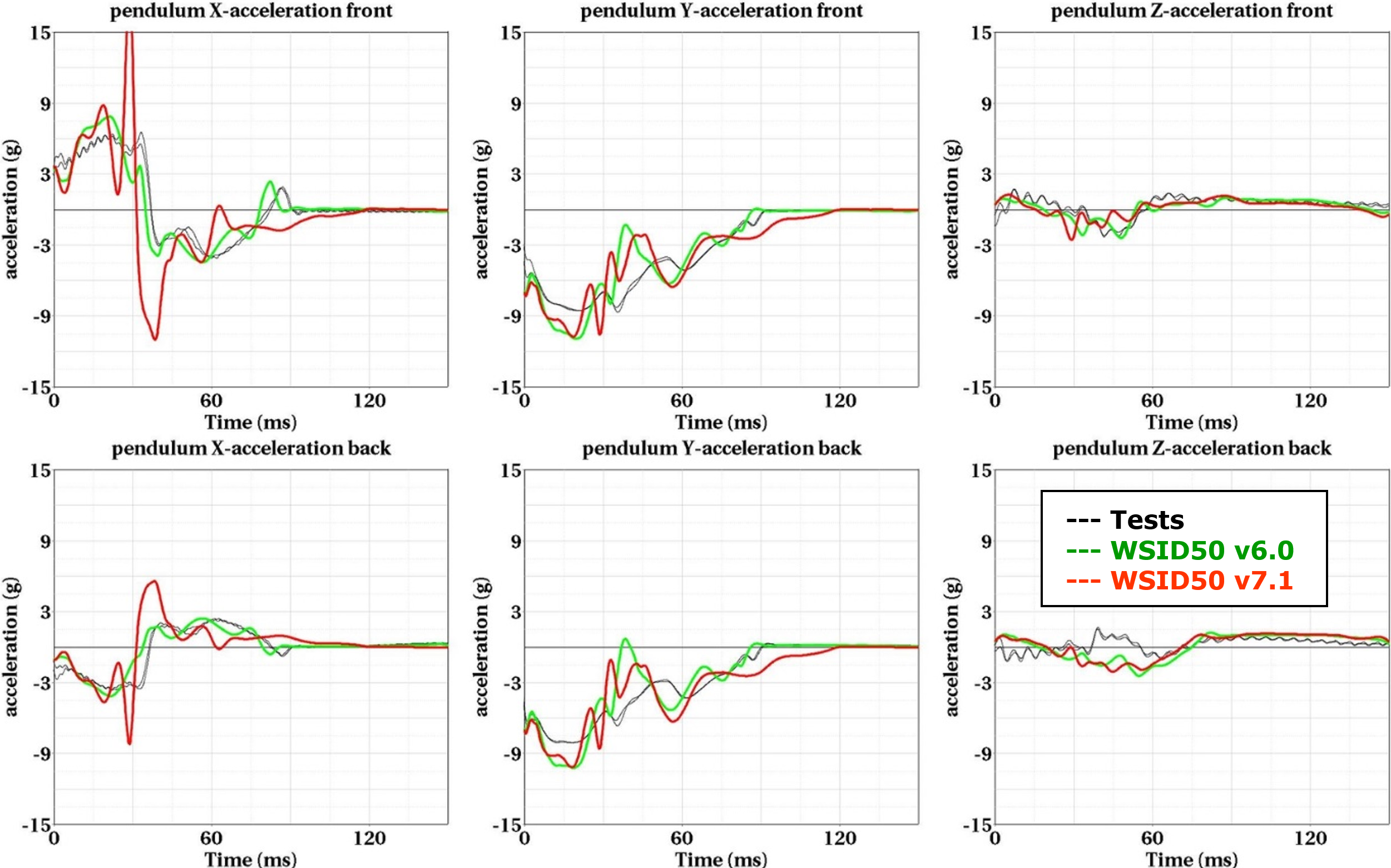

high pendulum mass and high velocity
90 Degree without sternum

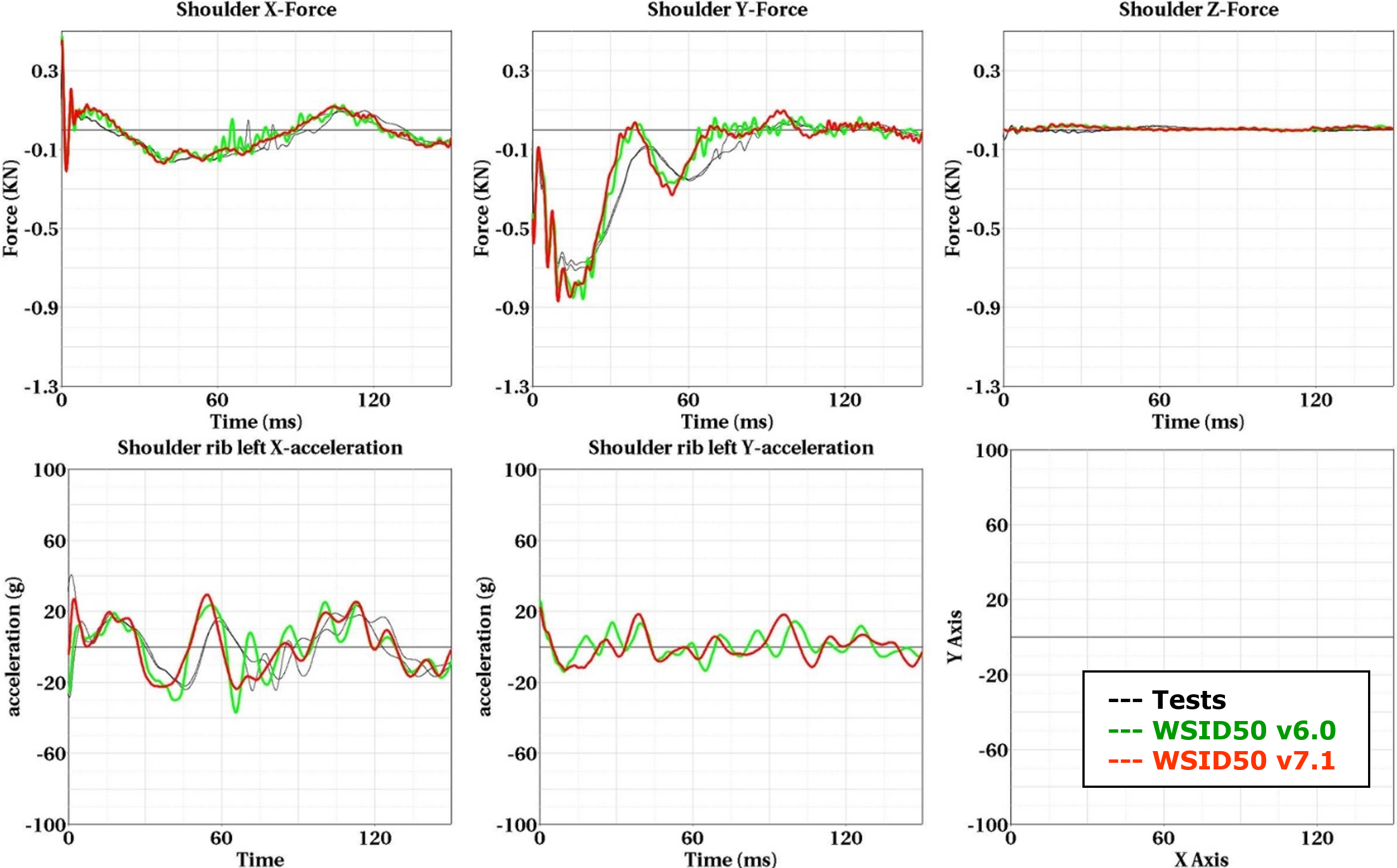

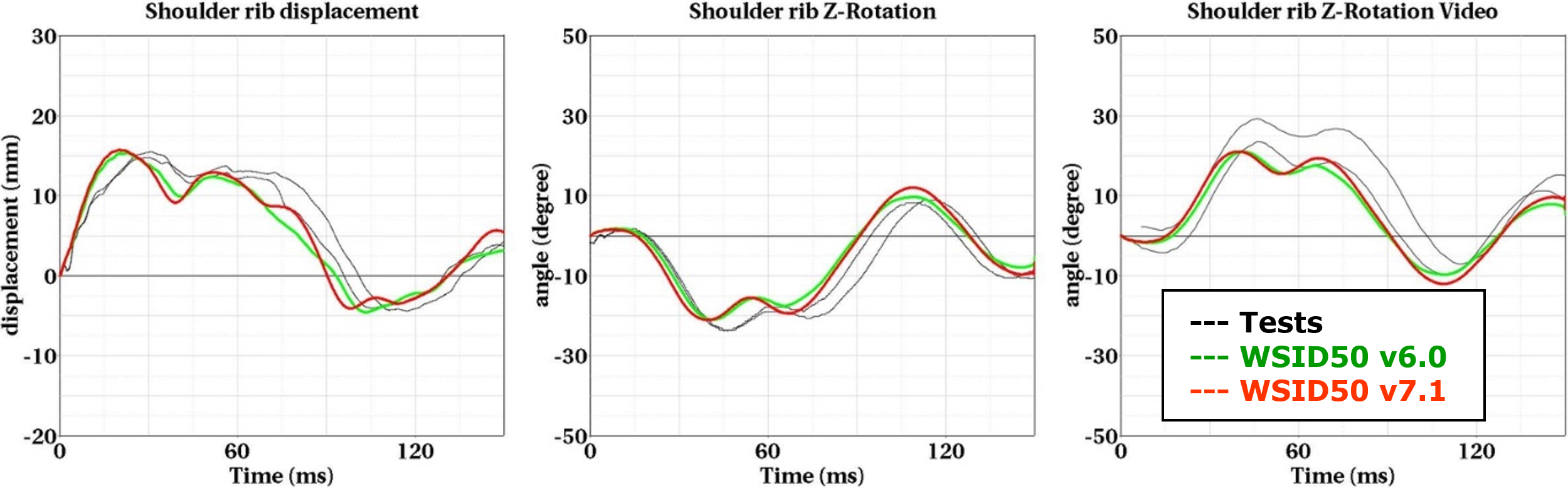

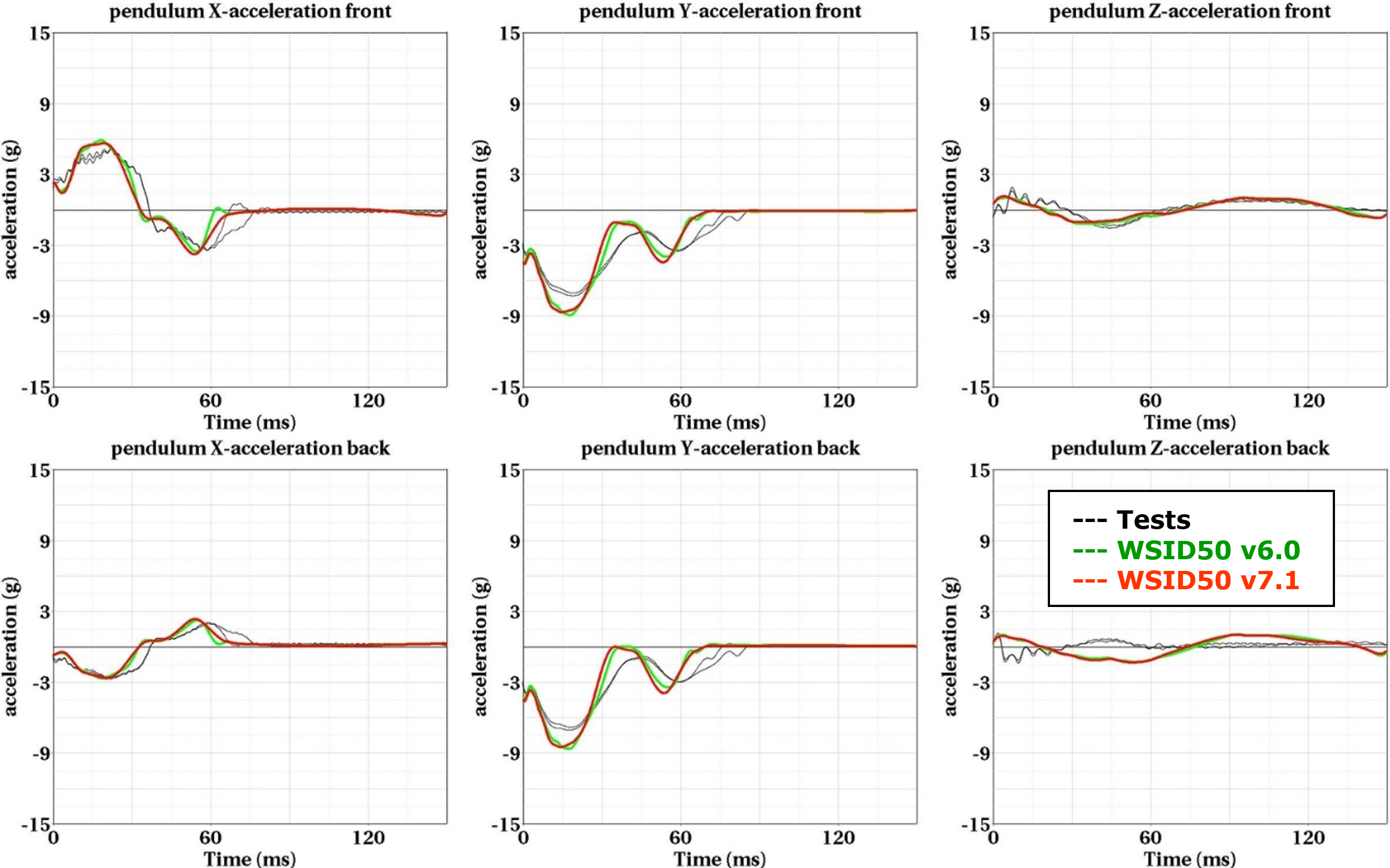

high pendulum mass and low velocity

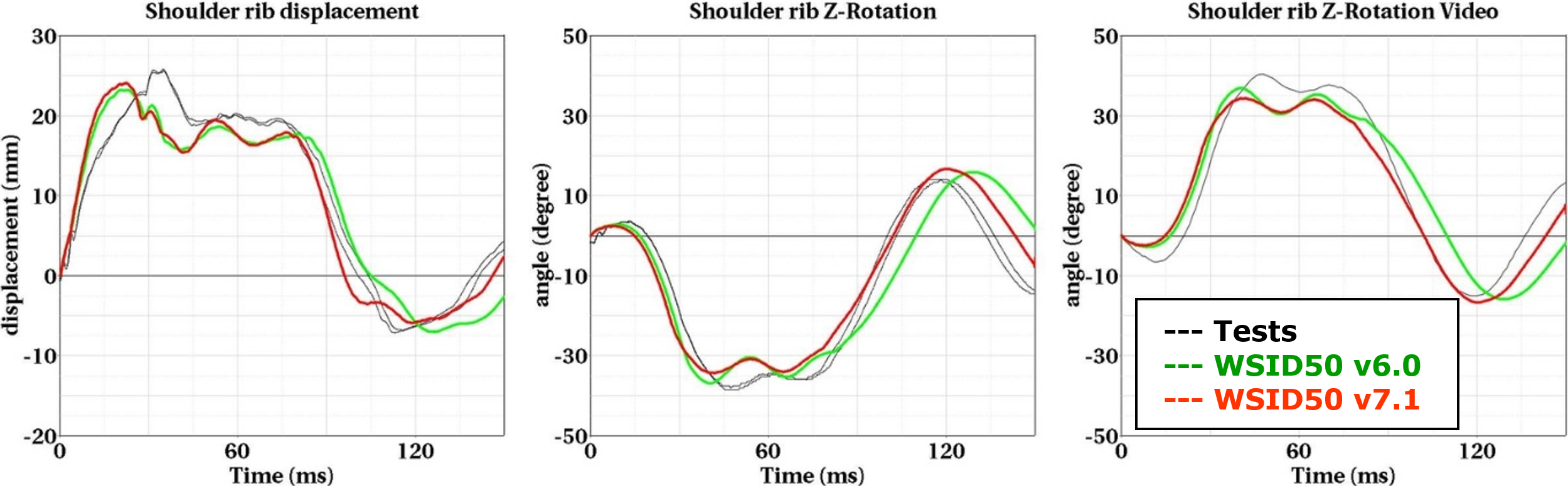

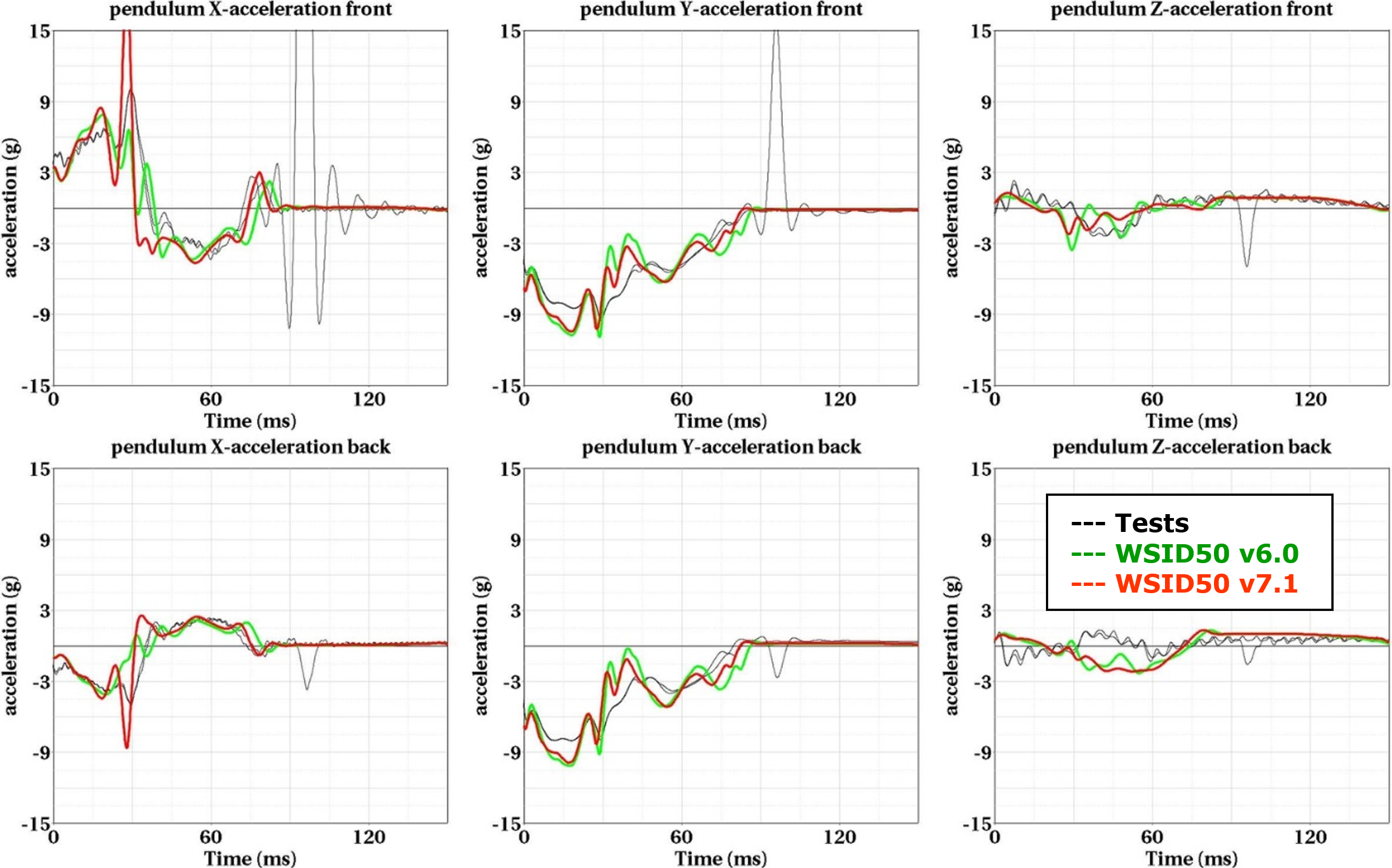

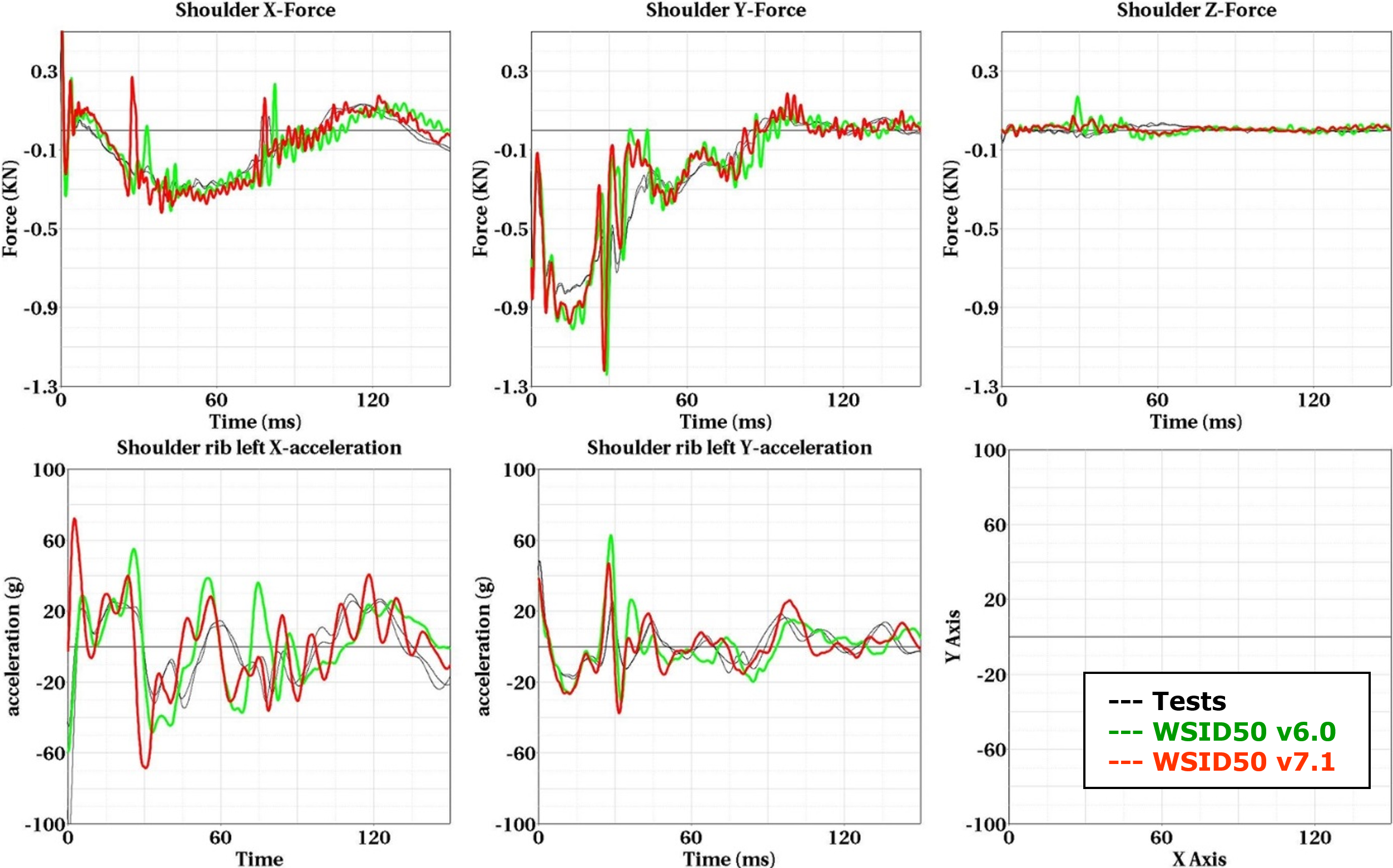

high pendulum mass and high velocity
180 Degree with sternum

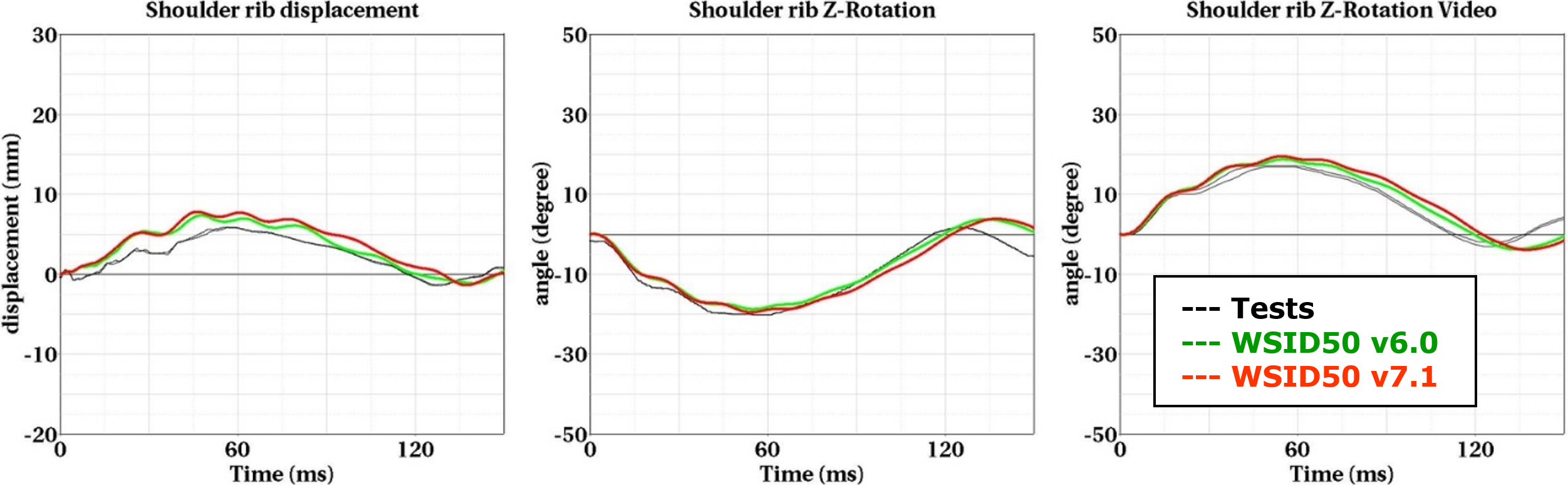

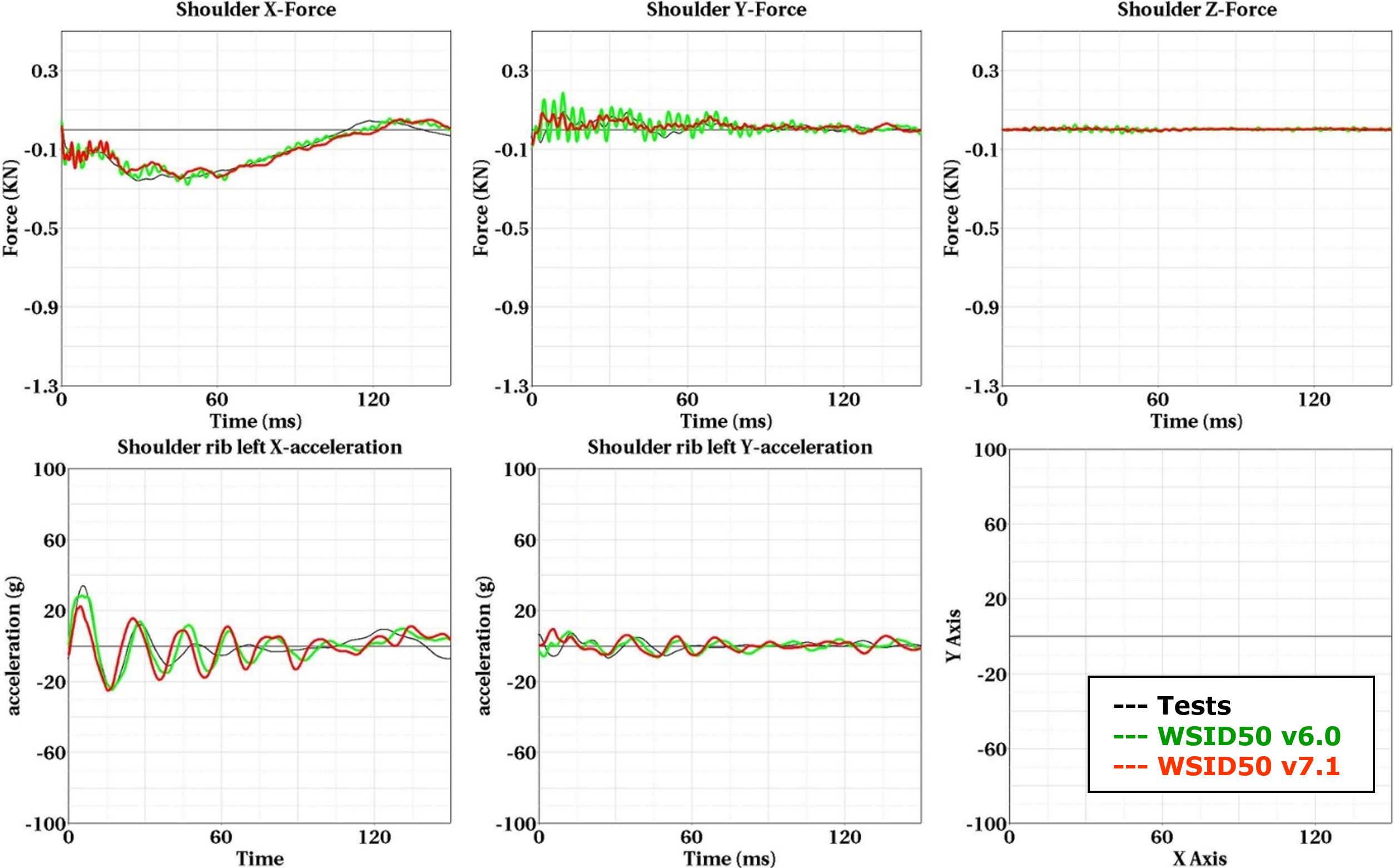

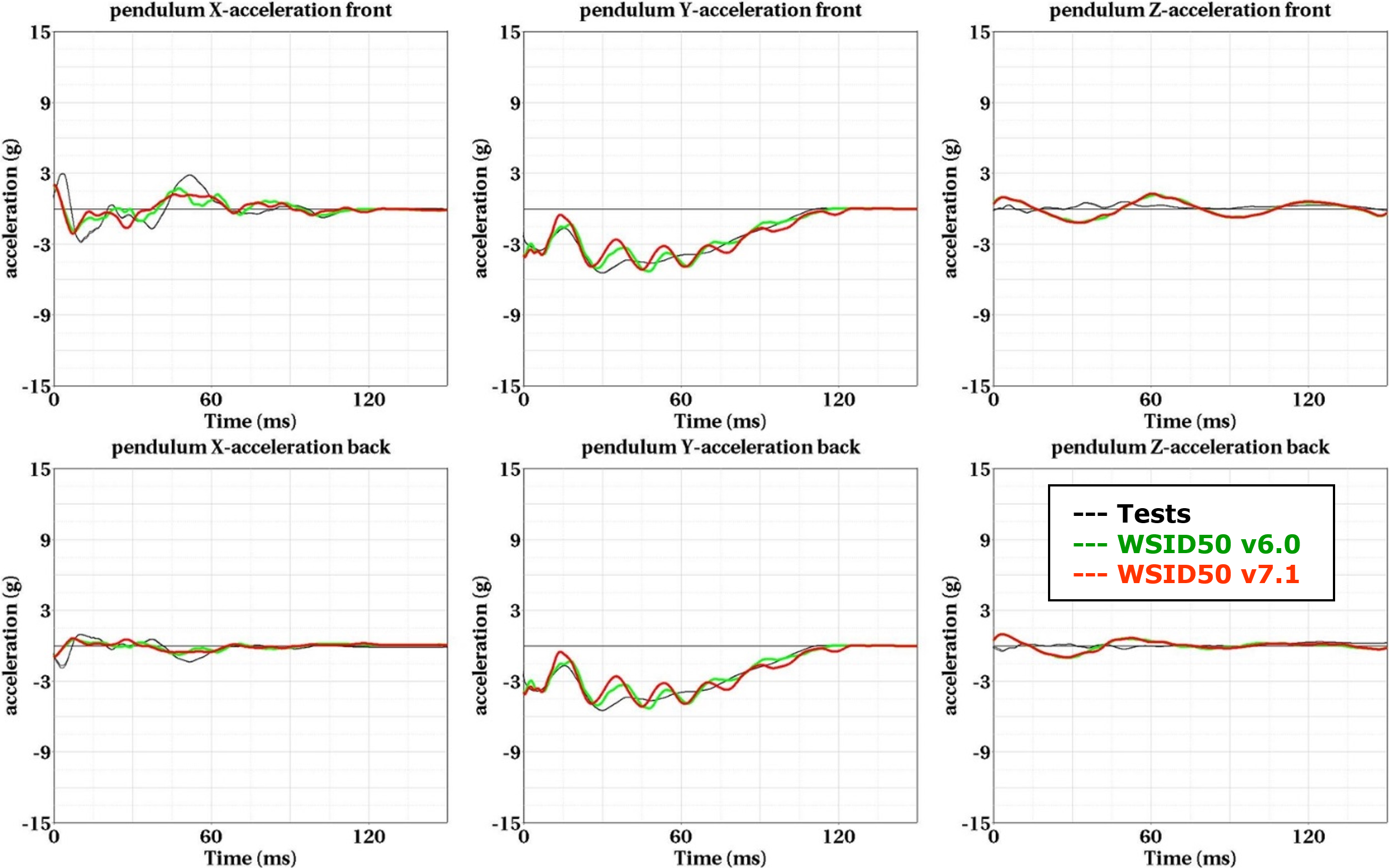

low pendulum mass and low velocity

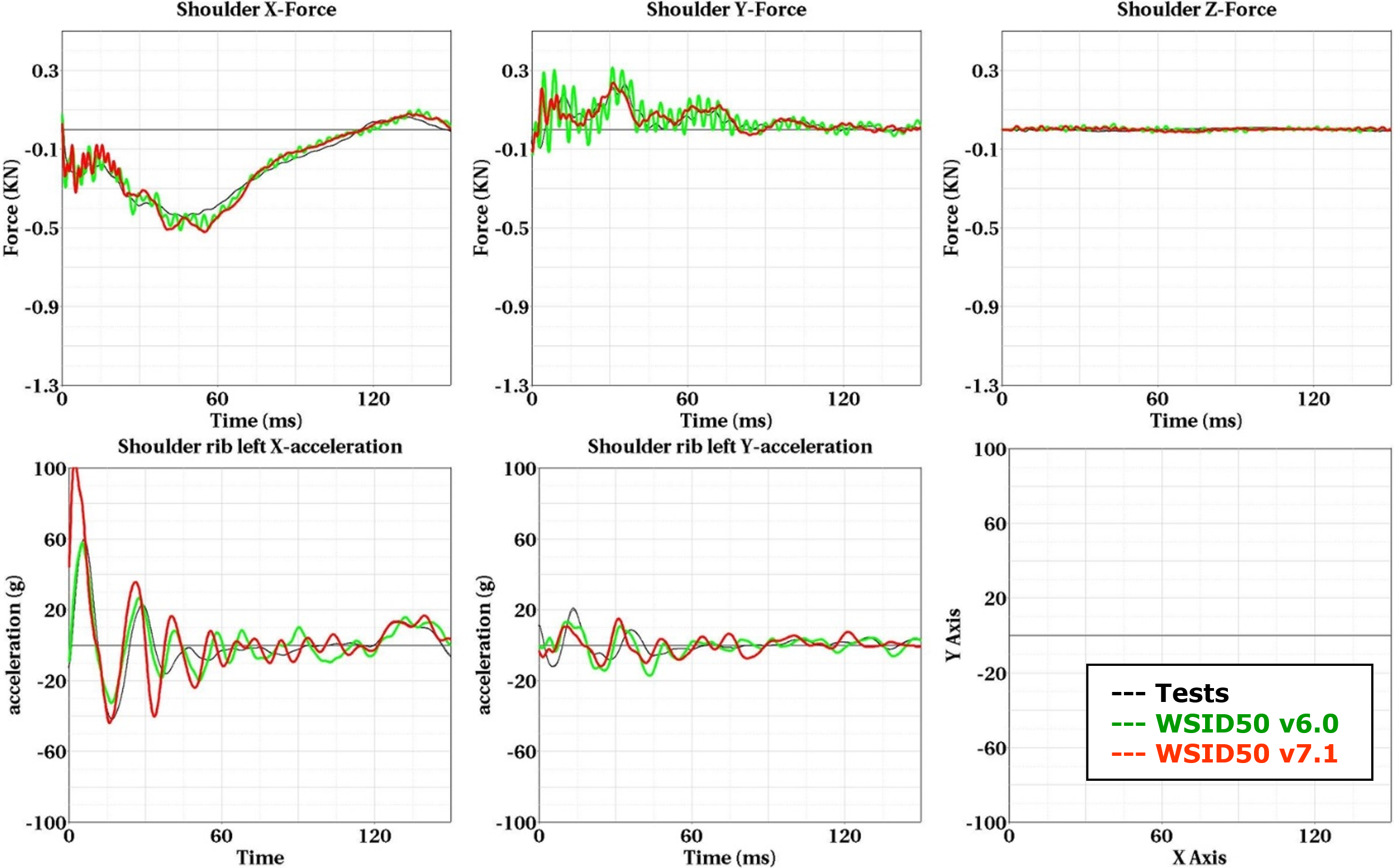

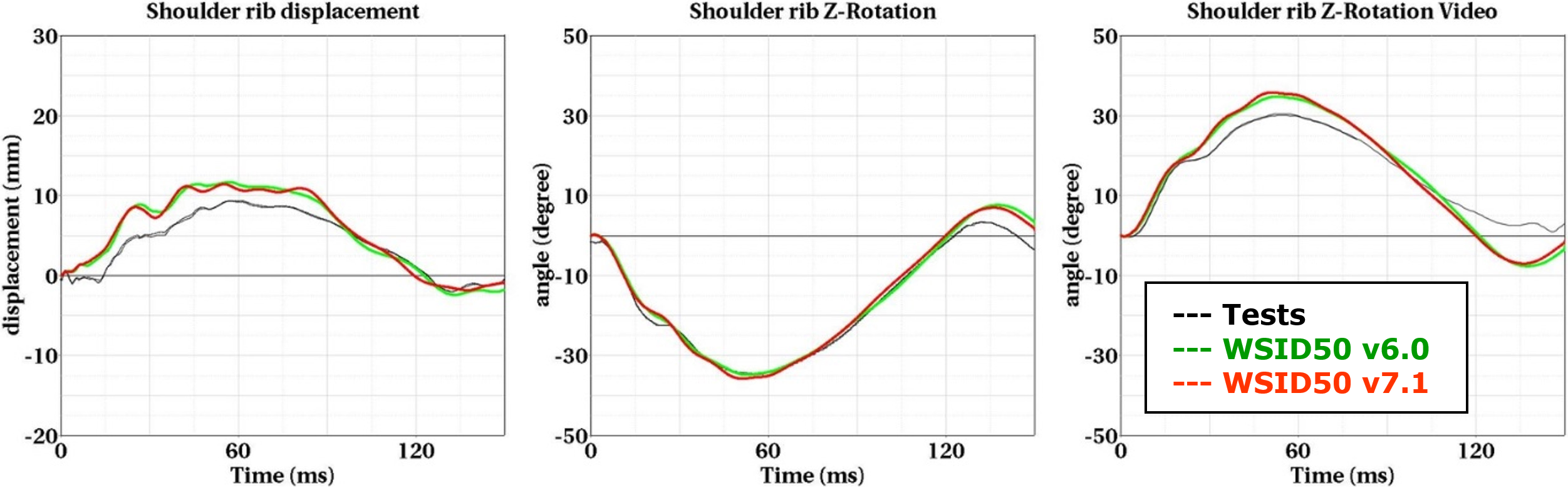

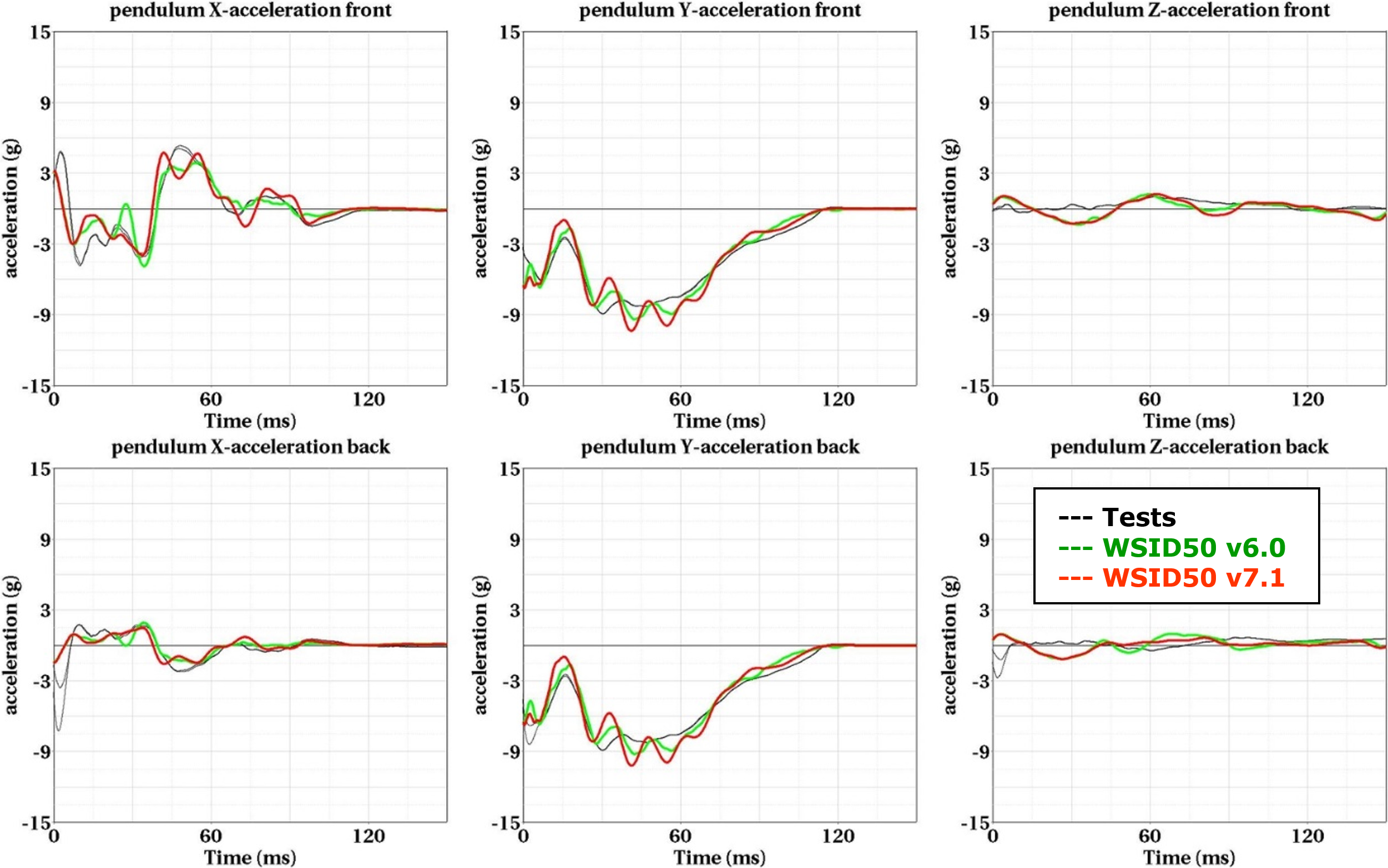

low pendulum mass and high velocity
180 Degree without sternum

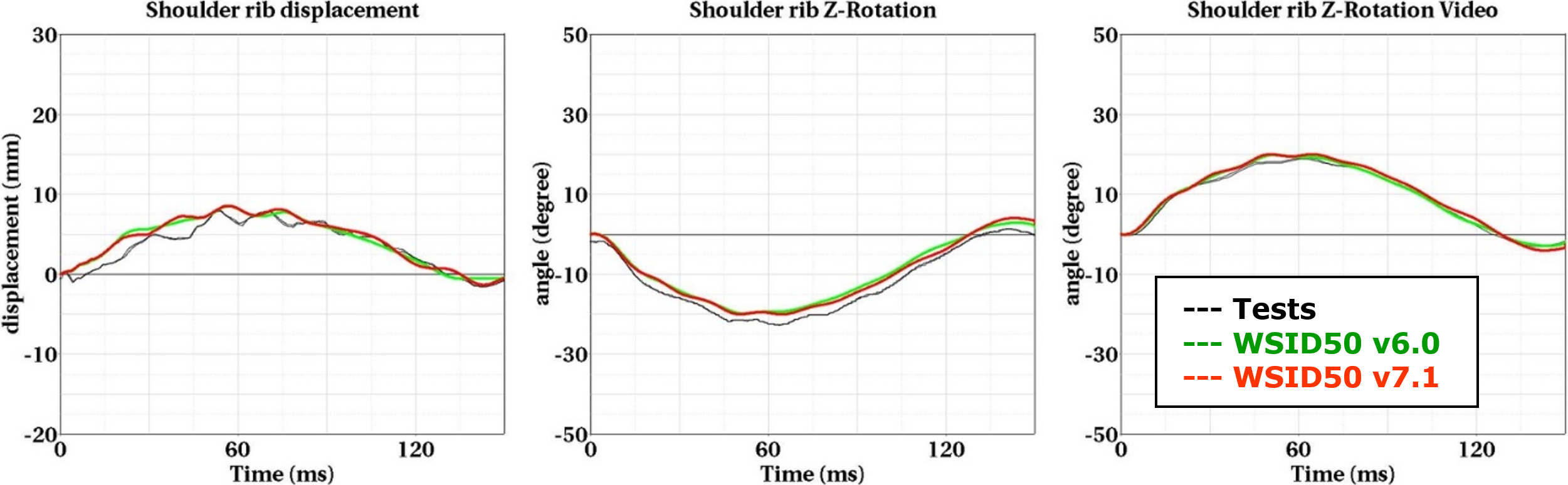

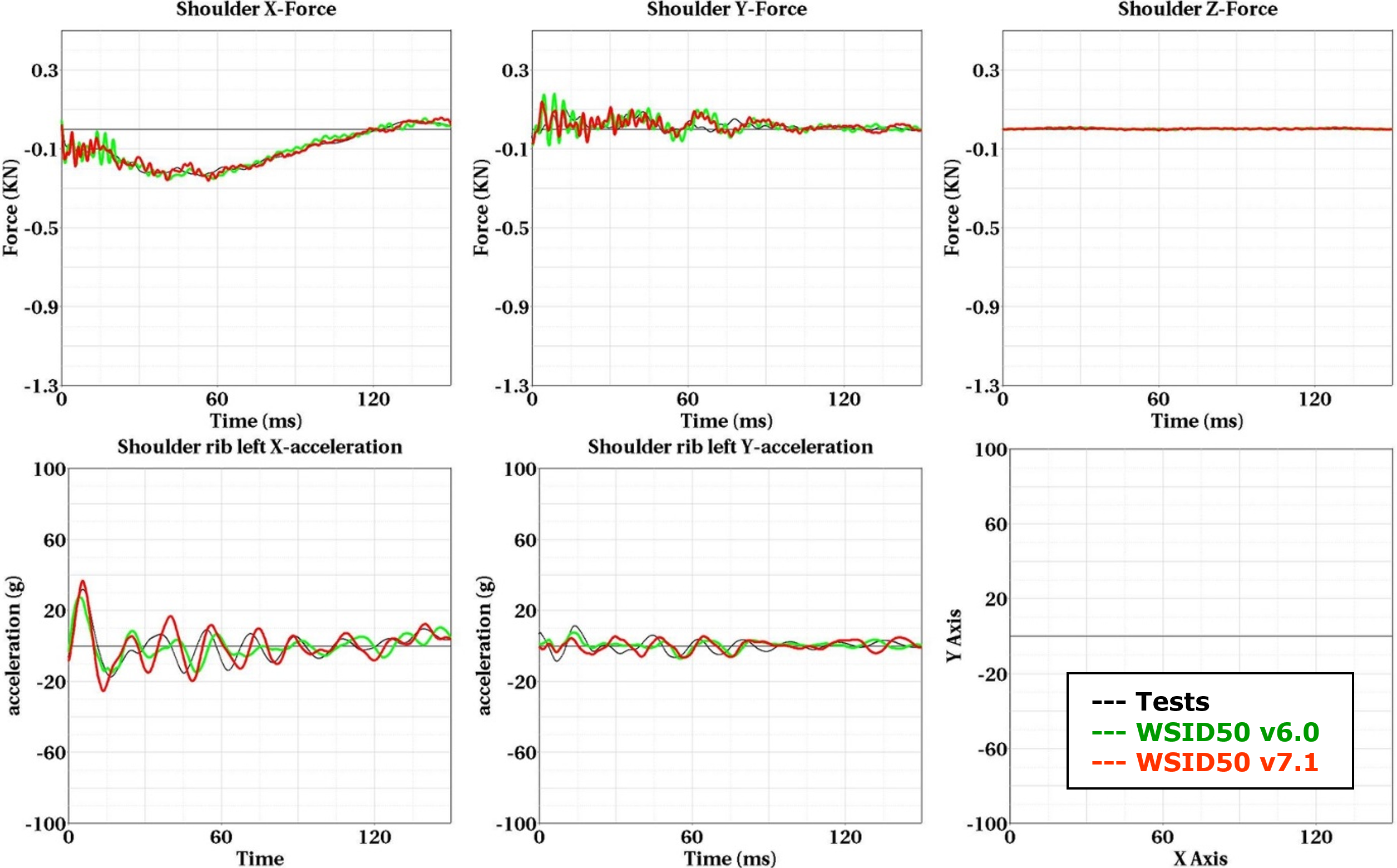

low pendulum mass and low velocity

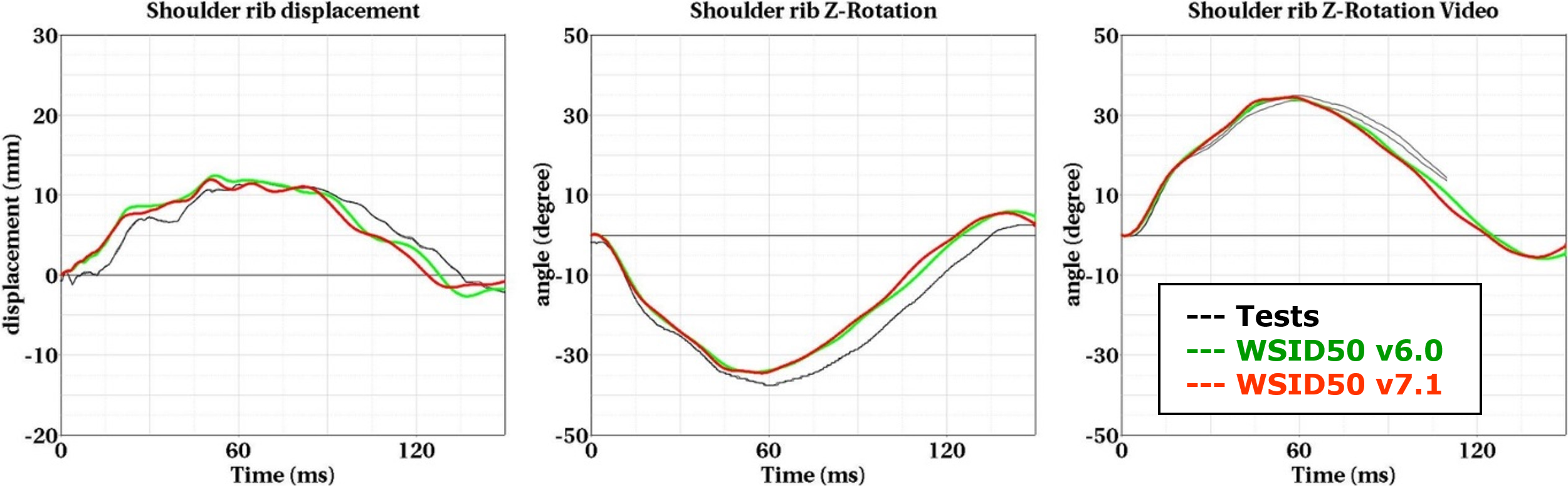

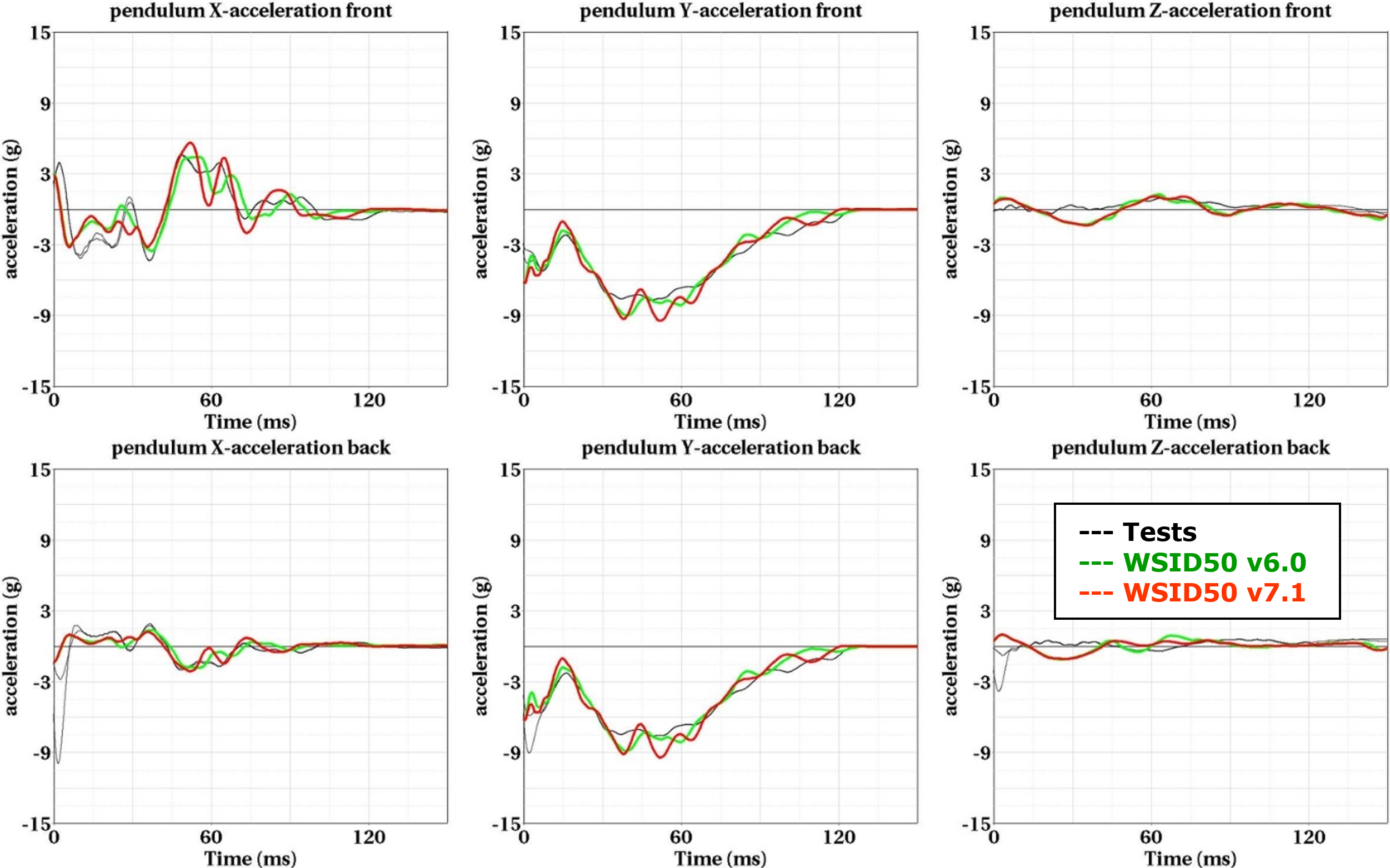

low pendulum mass and high velocity
