Outer Rib Band Test

The outer rib band is tested in a similar way. A fully assembled thorax assembly is used and only the ribs above and below the tested rib are disassembled. The tested ribs are:

  • Shoulder rib
  • First thorax rib
  • Third thorax rib
  • Second abdomen rib



Each rib is tested with three velocities. The test is used to validate the behavior of the complete rib modules including the sternum materials. Furthermore two different masses are used for the pendulum, hence there are six different test configurations for each single rib.



  •  Shoulder Rib:

Outer_Rib - Shoulder_Rib

Shoulder rib outer band test



Shoulder rib outer band - Low velocity, Low mass


OuterRib_Shoulder_V1M1



Shoulder rib outer band - Low velocity, High mass


OuterRib_Shoulder_V1M2



Shoulder rib outer band - Medium velocity, Low mass


OuterRib_Shoulder_V2M1



Shoulder rib outer band - Medium velocity, High mass


OuterRib_Shoulder_V2M2



Shoulder rib outer band - High velocity, Low mass


OuterRib_Shoulder_V3M1



Shoulder rib outer band - High velocity, High mass

 OuterRib_Shoulder_V3M2



  •  First Thorax Rib:

Outer_Rib - 1stThorax_Rib

First thorax rib outer band test



First thorax rib outer band - Low velocity, Low mass


OuterRib_1stThorax_V1M1



First thorax rib outer band - Low velocity, High mass

 OuterRib_1stThorax_V1M2



First thorax rib outer band - Medium velocity, Low mass

 OuterRib_1stThorax_V2M1



First thorax rib outer band - Medium velocity, High mass

 OuterRib_1stThorax_V2M2




First thorax rib outer band - High velocity, Low mass



OuterRib_1stThorax_V3M1



First thorax rib outer band - High velocity, High mass

 OuterRib_1stThorax_V3M2





  •  Third Thorax Rib:

Outer_Rib - 3rdThorax_Rib

Third thorax rib outer band test



Third thorax rib outer band - Low velocity, Low mass


OuterRib_3rdThorax_V1M1



Third thorax rib outer band - Low velocity, High mass

 OuterRib_3rdThorax_V1M2



Third thorax rib outer band - Medium velocity, Low mass


OuterRib_3rdThorax_V2M1



Third thorax rib outer band - Medium velocity, High mass

 OuterRib_3rdThorax_V2M2


Third thorax rib outer band - High velocity, Low mass

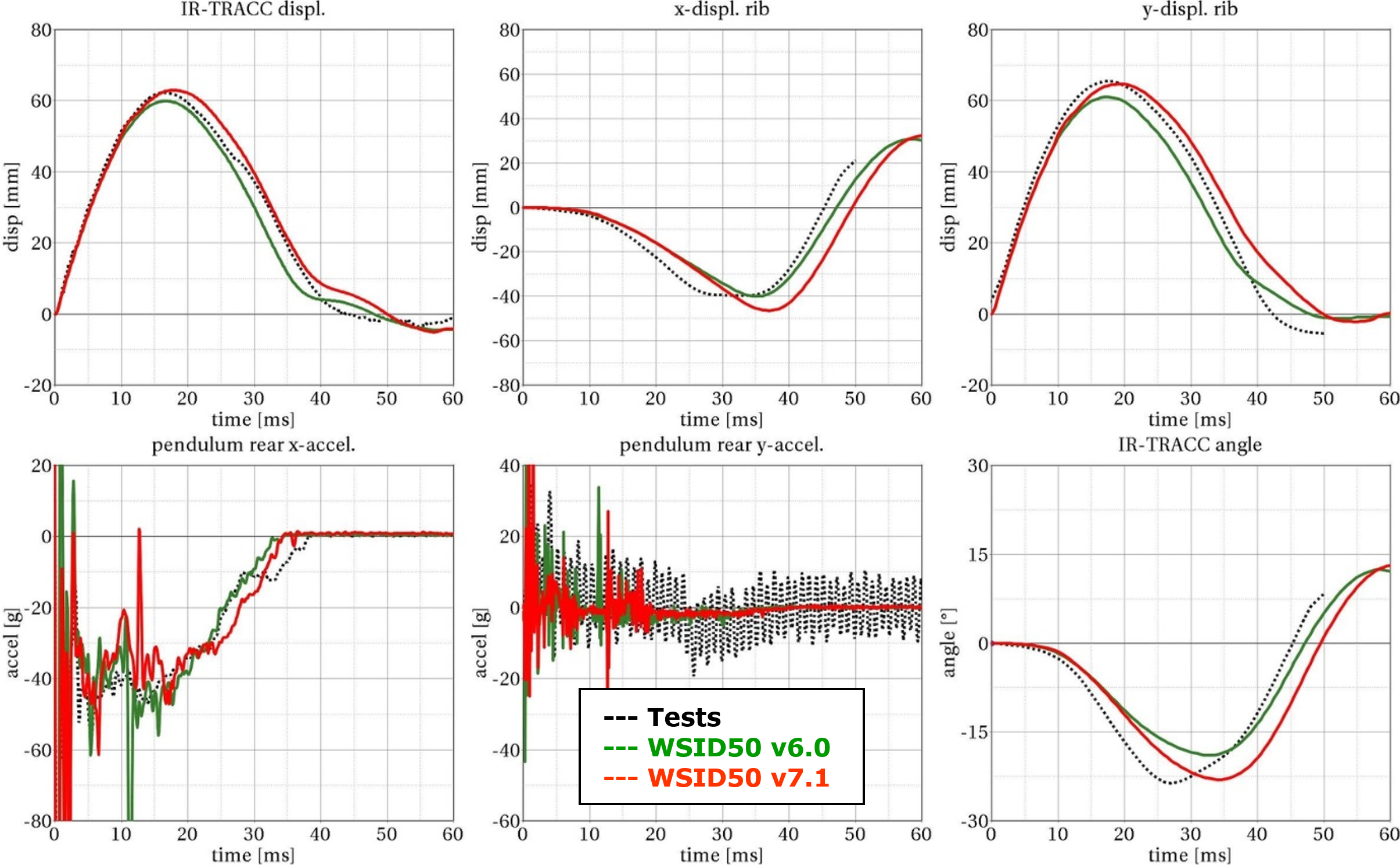

OuterRib_3rdThorax_V3M1



Third thorax rib outer band - High velocity, High mass

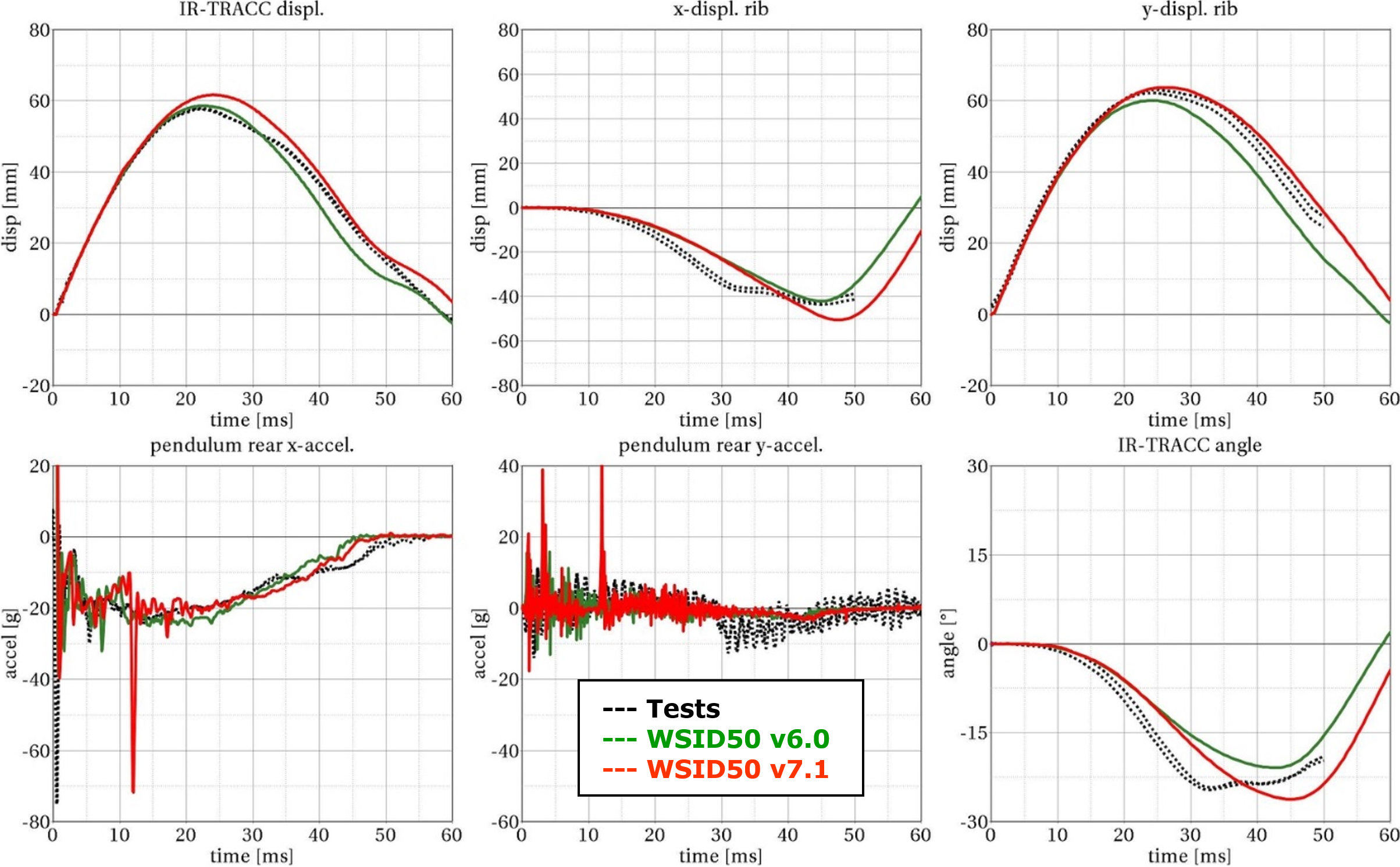

 OuterRib_3rdThorax_V3M2






  •  Second Abdomen Rib:

Outer_Rib - 2ndAbdomen_Rib

Second abdomen rib outer band test



Second abdomen rib outer band - Low velocity, Low mass


OuterRib_2ndAbdomen_V1M1


Second abdomen rib outer band - Low velocity, High mass

 OuterRib_2ndAbdomen_V1M2



Second abdomen rib outer band - Medium velocity, Low mass


OuterRib_2ndAbdomen_V2M1



Second abdomen rib outer band - Medium velocity, High mass


OuterRib_2ndAbdomen_V2M2



Second abdomen rib outer band - High velocity, Low mass


OuterRib_2ndAbdomen_V3M1



Second abdomen rib outer band - High velocity, High mass

 OuterRib_2ndAbdomen_V3M2
  •   AdditionalSecond Abdomen Rib:

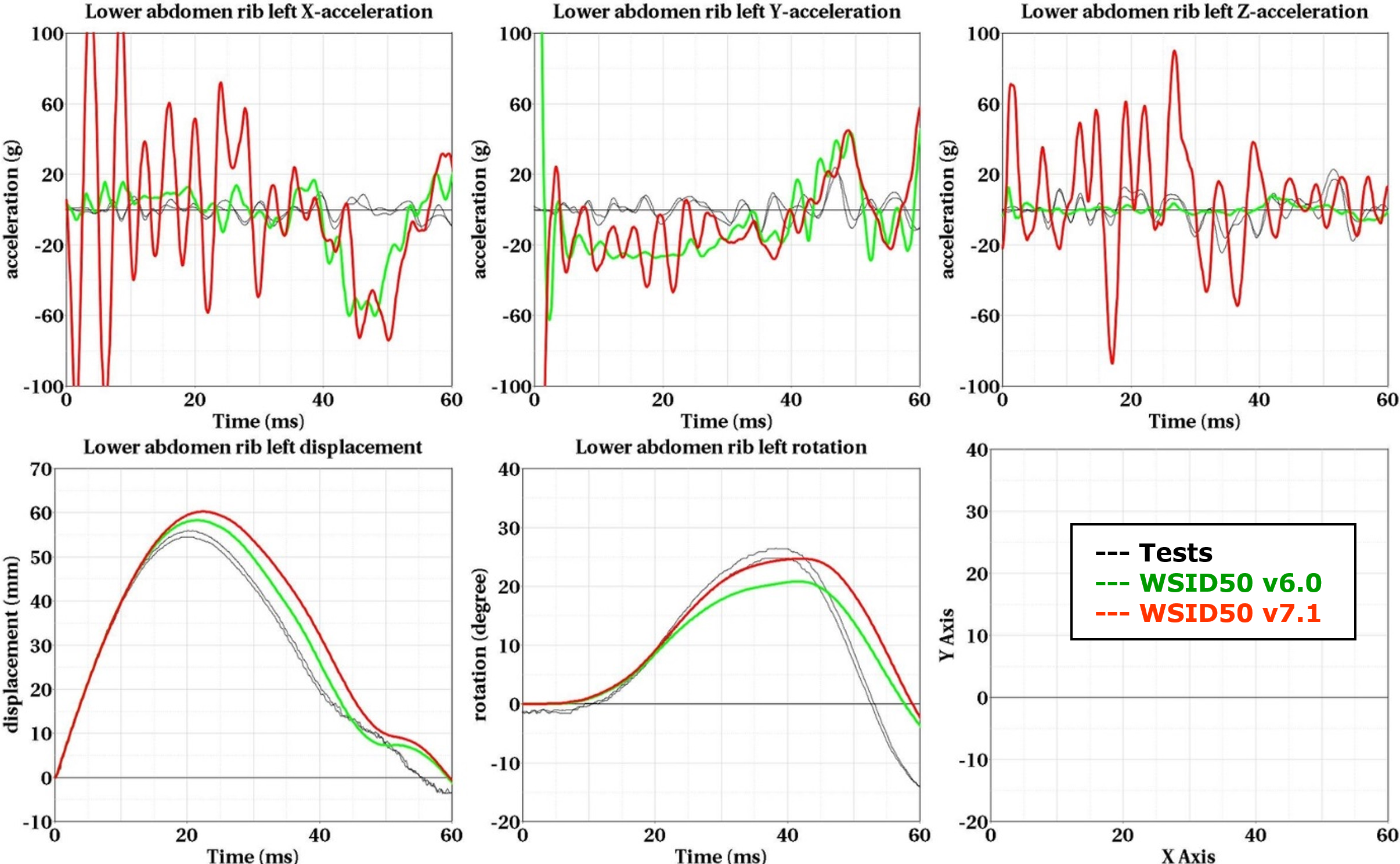

Second abdomen rib outer band - High velocity, low mass

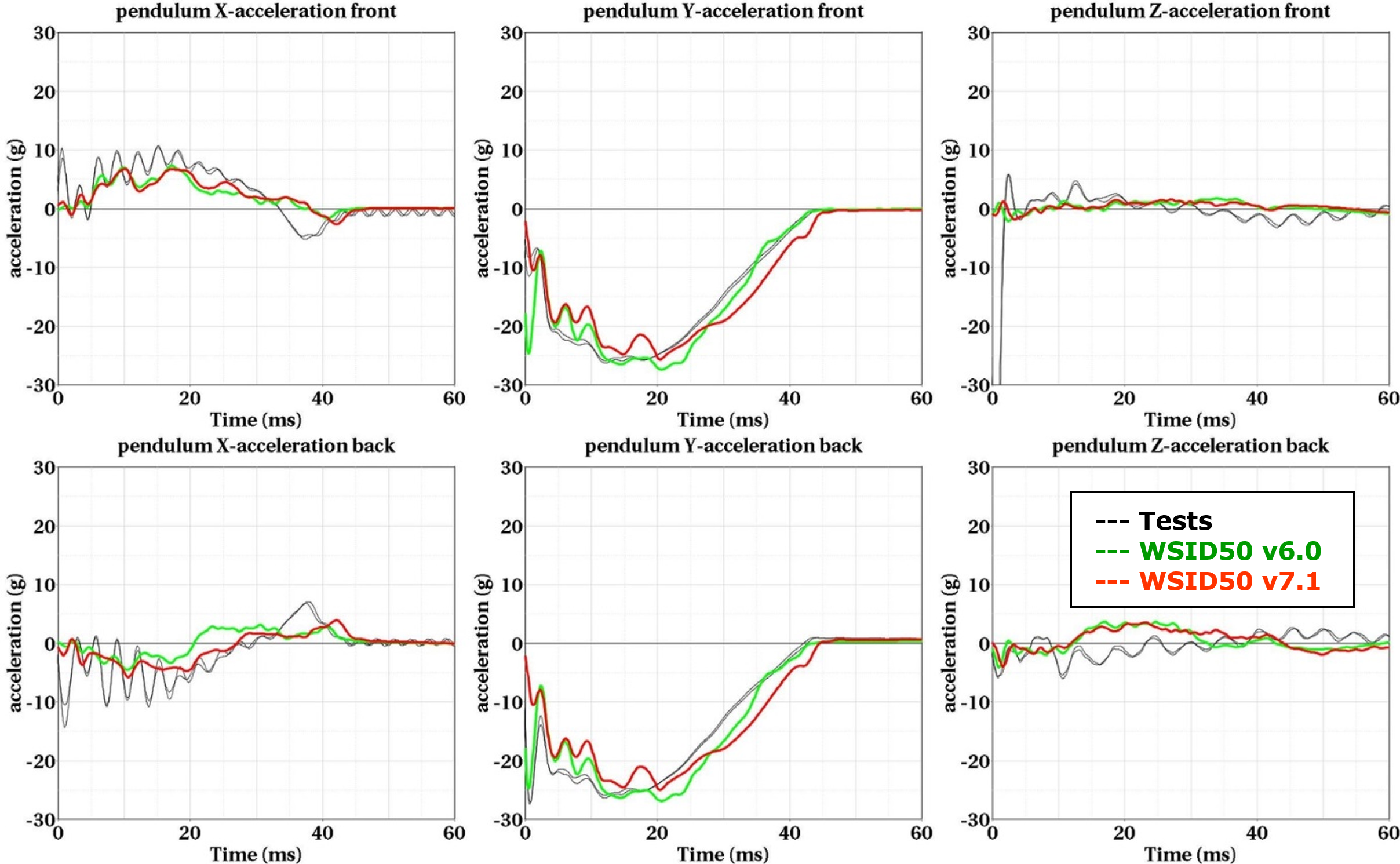

Second abdomen rib outer band - High velocity, high mass
