Release notes v7.6

Update version 7.6

  • Rib coupler contact update
  • Jacket geometry adjusted for rib coupler contact and thigh angle adjustment. No more negative volume in jacket for thigh y rotations up to +/- 3 degrees without pre-simuation
  • Lumbar optimized with better component test results
  • Pelvis flech *MAT optimized, *DAMPING_PART_STIFFNESS changed to 0.1
  • *SET_NODE fixed for psg-script (pre-simulation script)

Update version 7.5.1

  • *DATABASE_HISTORY_NODE_LOCAL_ID update for EuroNCAP evaluation
  • IR_TRACC right *CONSTRAINED_JOINT_STIFFNESS_TRANSLATIONAL_TITLE debug
  • Shoulder and pubic load cell updated to receive compression as negative value like in hardware. The polarity of these load cells is adjusted
  • Accelerometer *ELEMENT_SEATBELT_ACCELEROMETER set from IGRAV 0 to 1 to match hardware behavior

Update version 7.5

  • Parameters defined by *PARAMETER_EXPRESSION_MUTABLE are now uncrypted
  • Material and load curve optimizations
  • IR_TRACCs, pelvis etc. with contact update
  • Rib mounting bracket with geometric update

Update version 7.1

  • Different material curve optimizations
  • Pelvis contact and material fixed
  • Friction parameters of right side thorax are adjusted
  • Several modifications to increase the stability of the model, performance nearly the same as v7.0

Update version 7.0

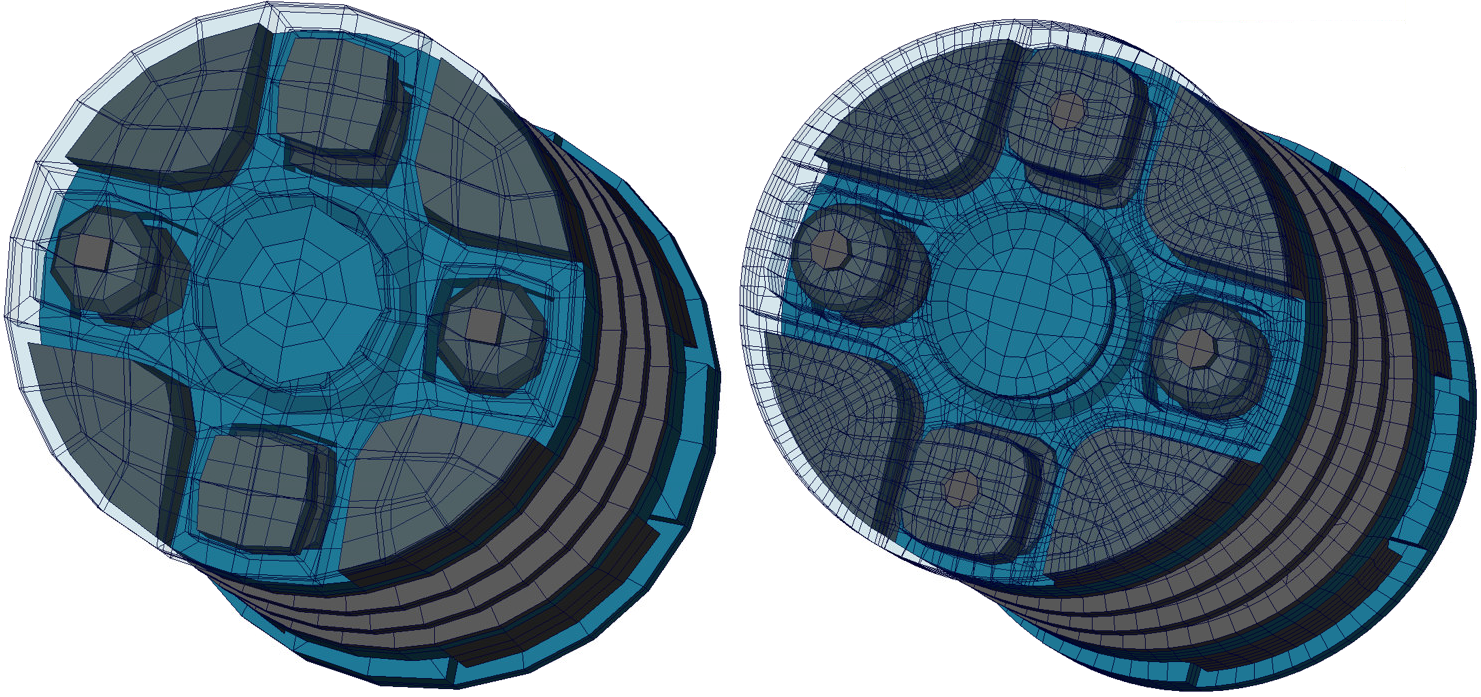

  • Finer neck mesh (3 mm - 9 mm to 2.5 mm)

                                                             WSID_v6.0                                         WSID_v7.0

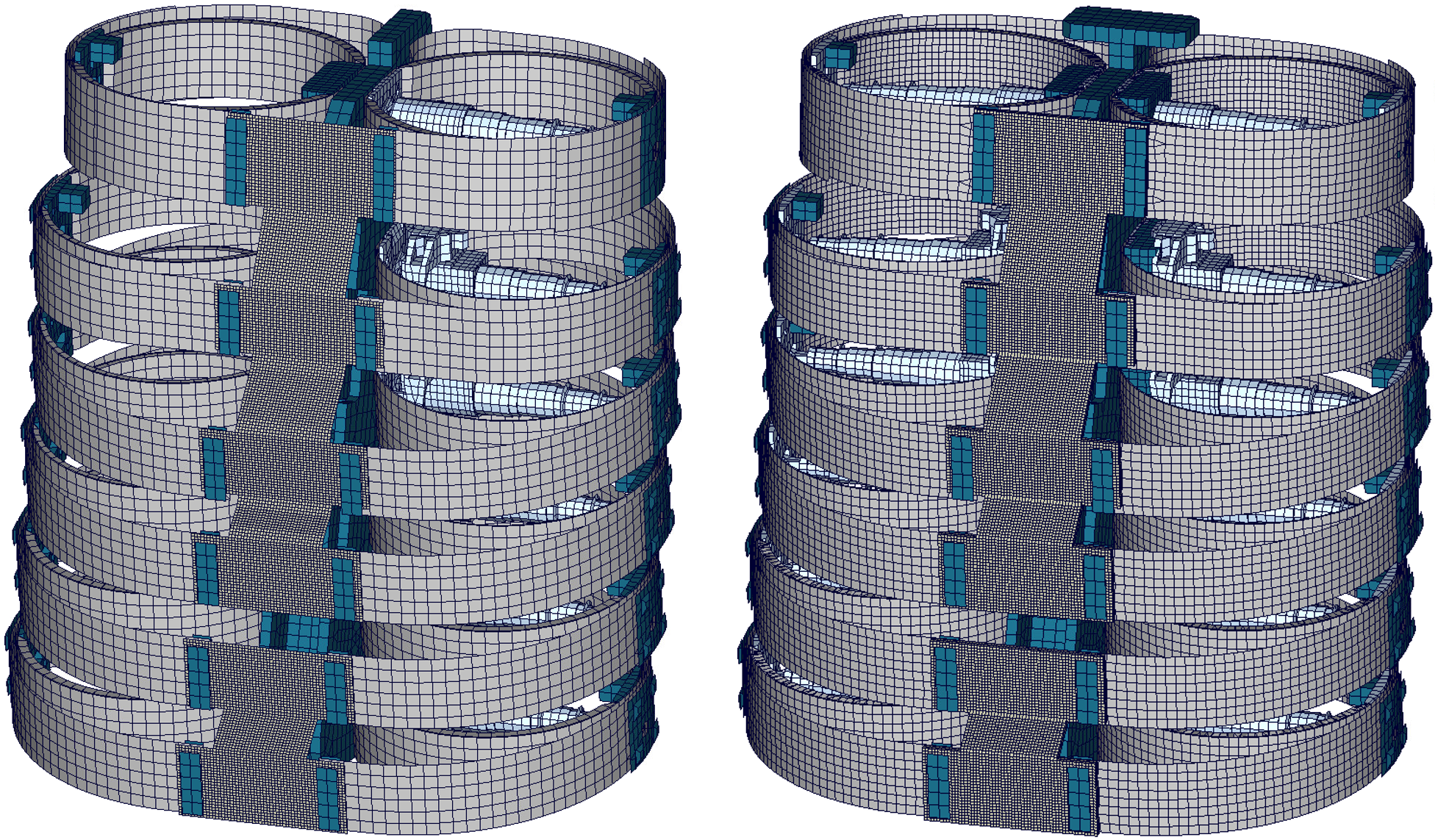

  • Finer thorax mesh

                                                             WSID_v6.0                                         WSID_v7.0

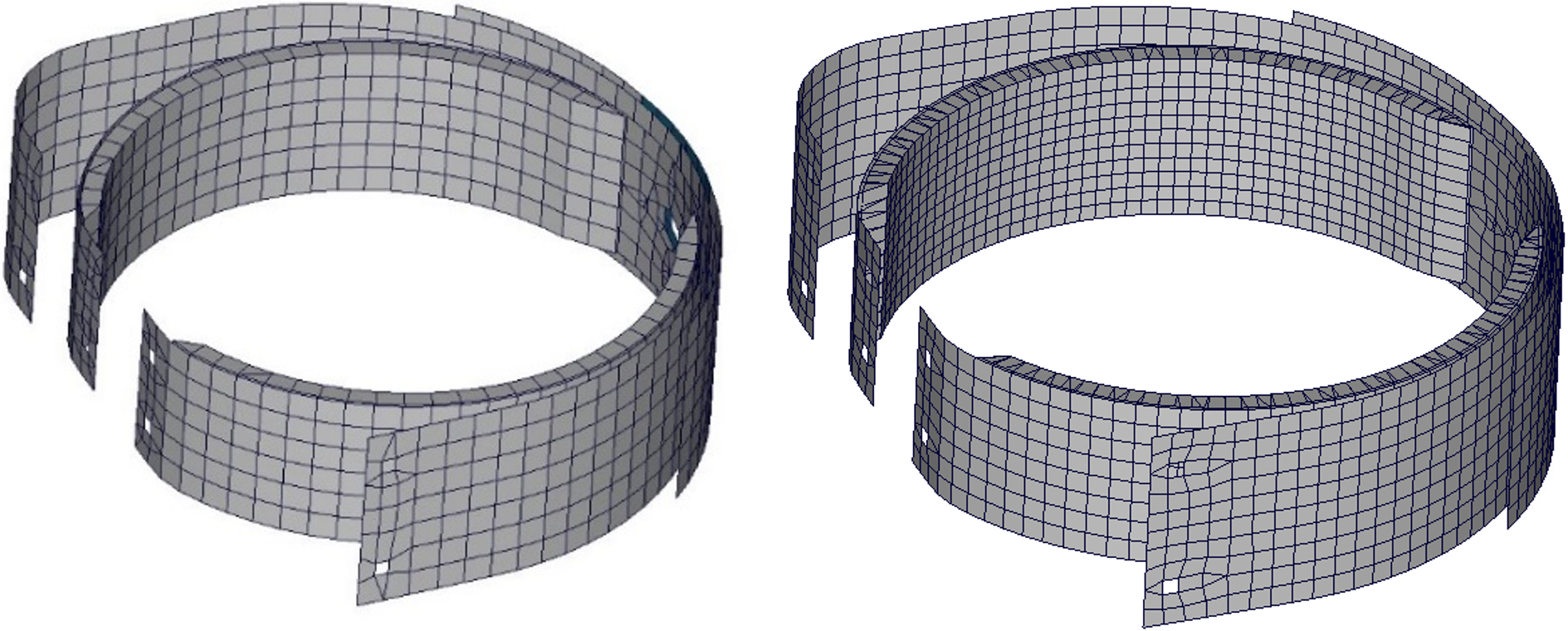

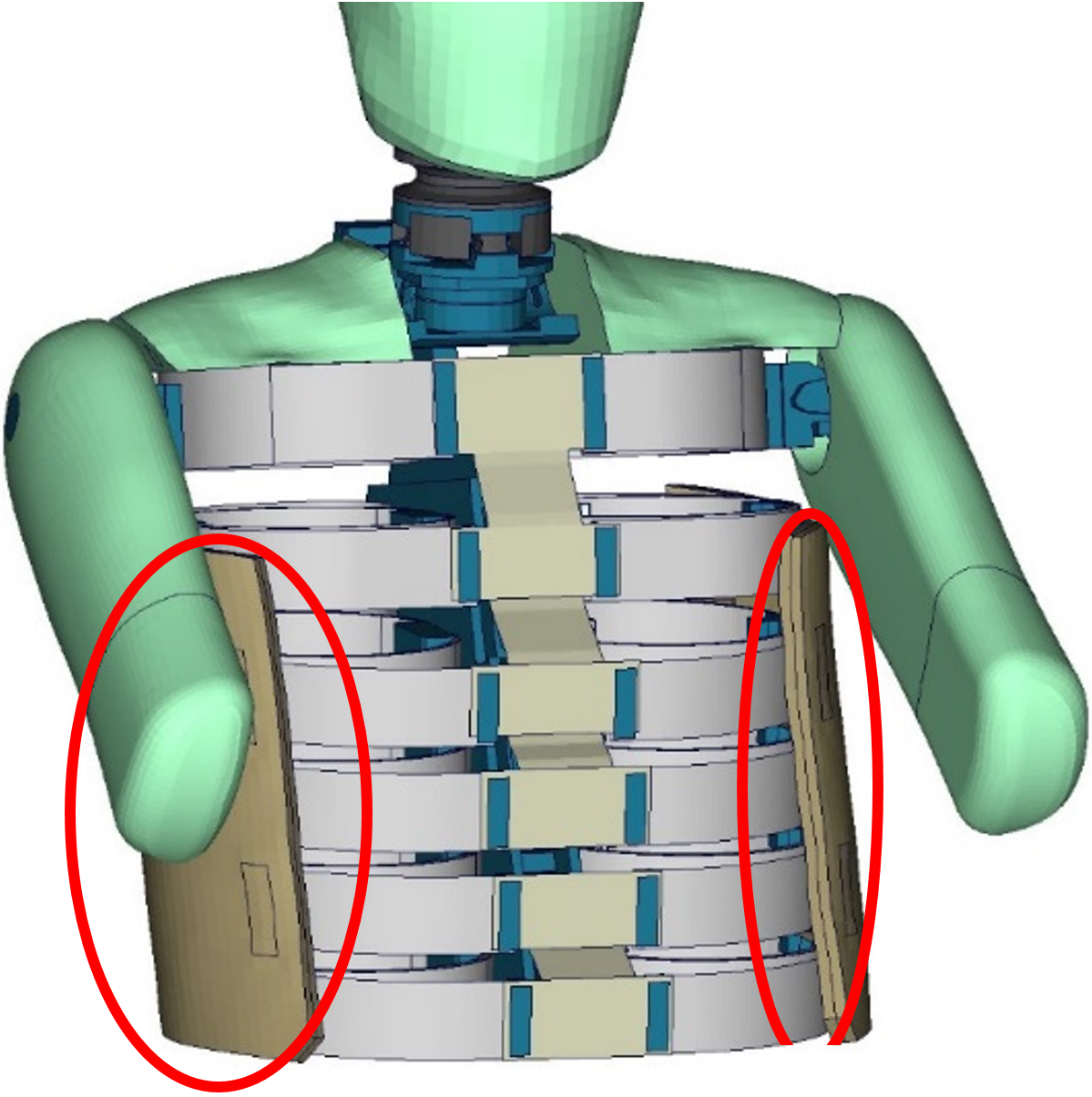

  • Finer thorax-pad (8 mm to 4 mm)


                                                             WSID_v6.0                                         WSID_v7.0

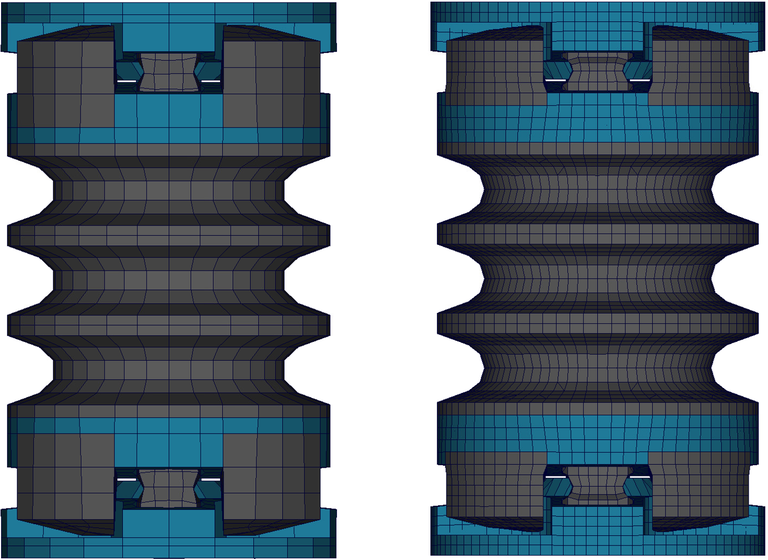

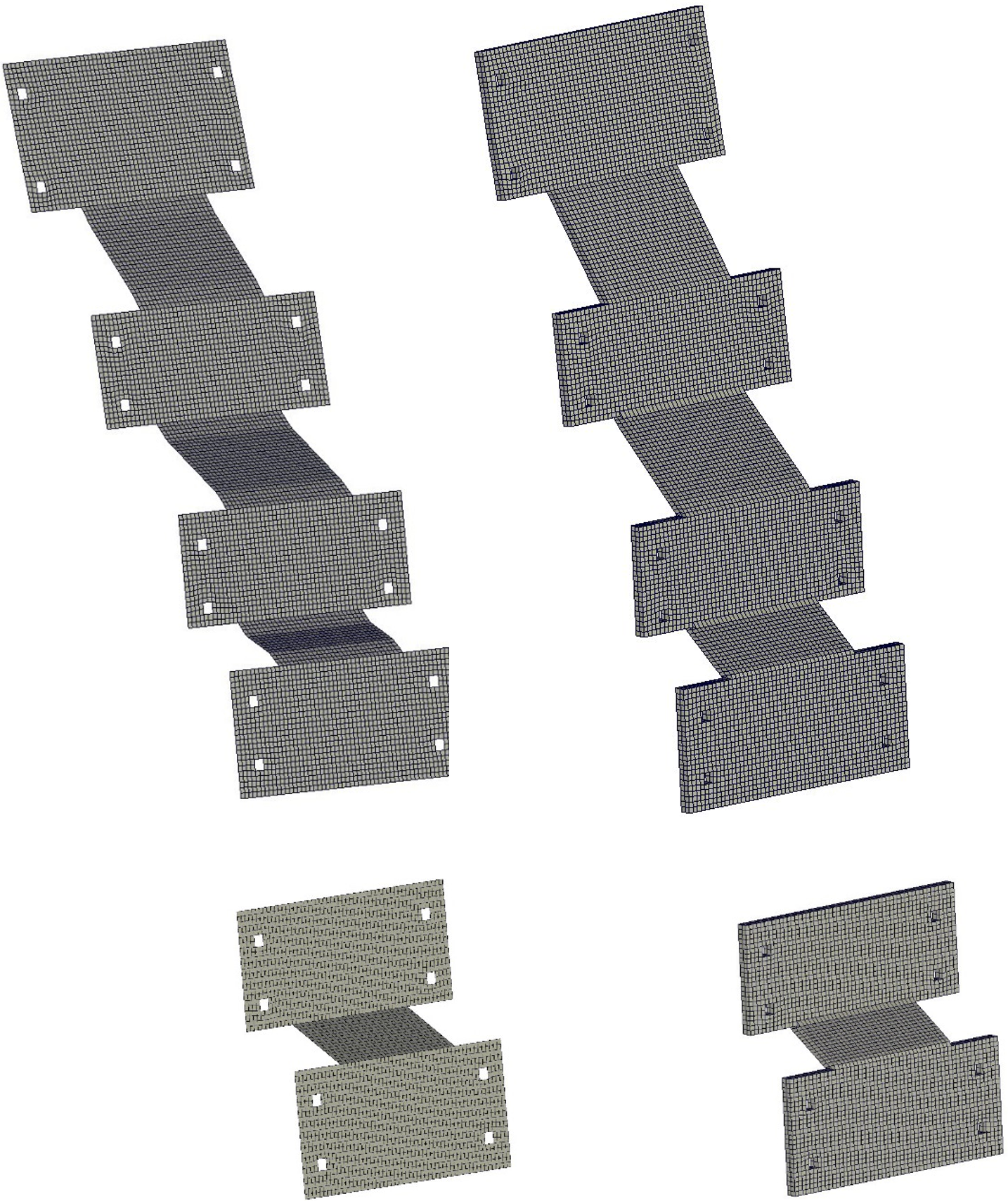

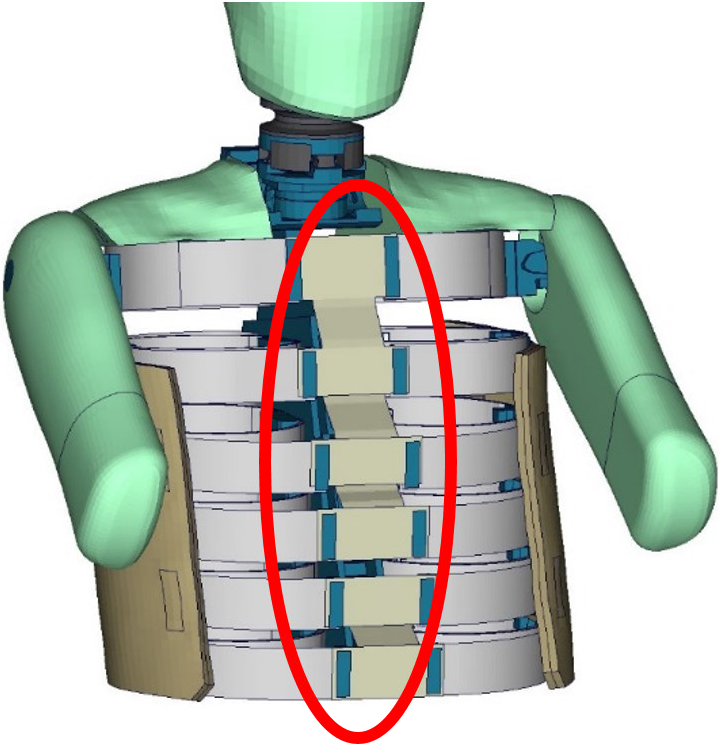

  • Solid rib-coupler: from shell elements to two layers of solid elements with MAT181 (simplified rubber)




                                                             WSID_v6.0                                         WSID_v7.0

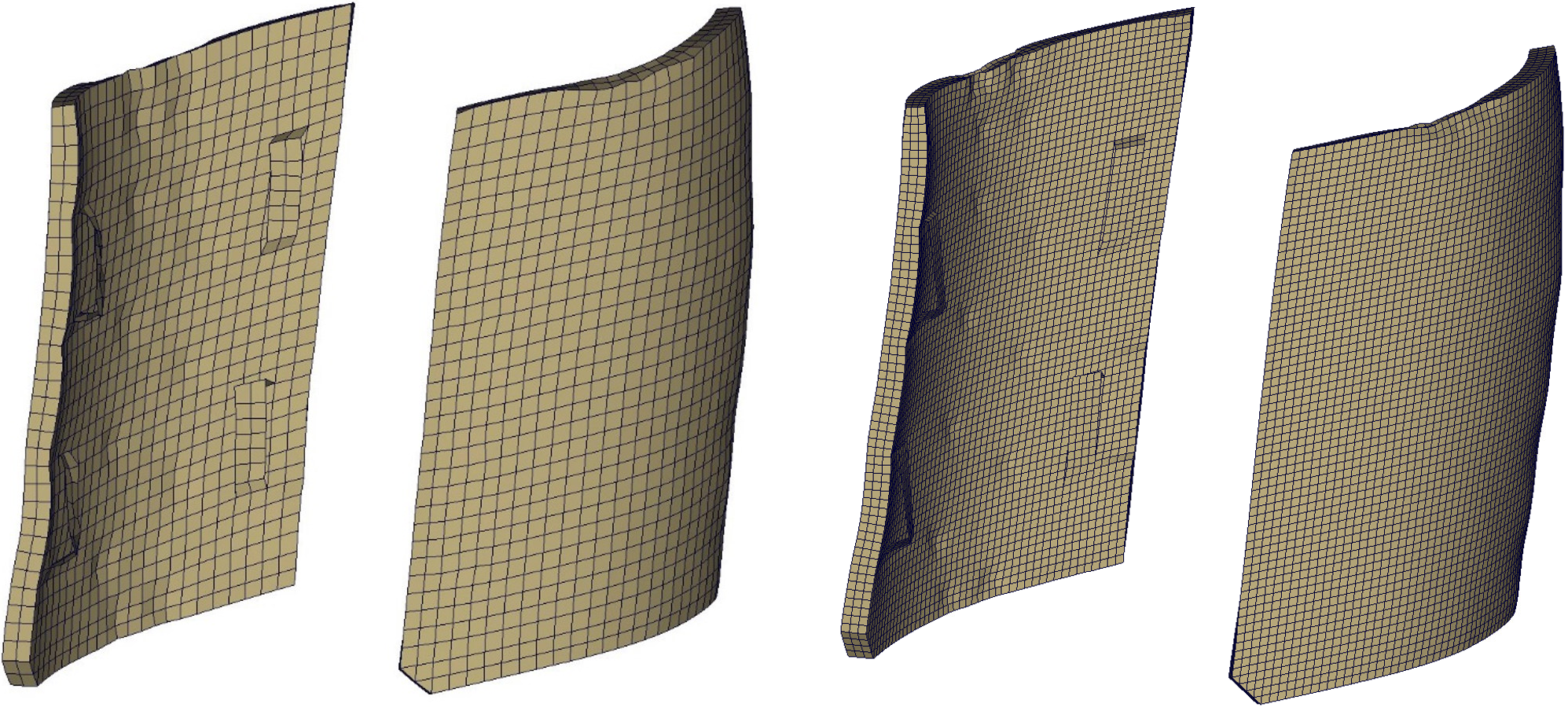

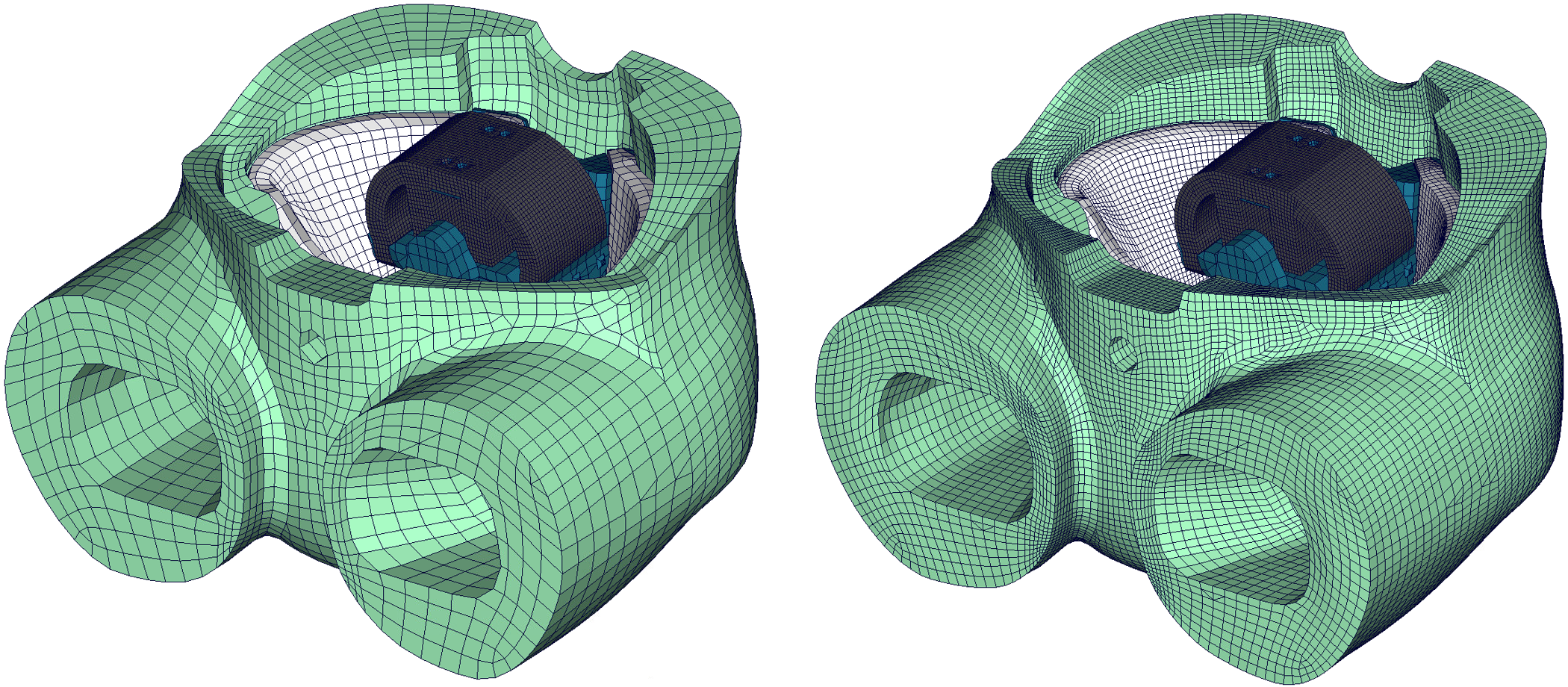

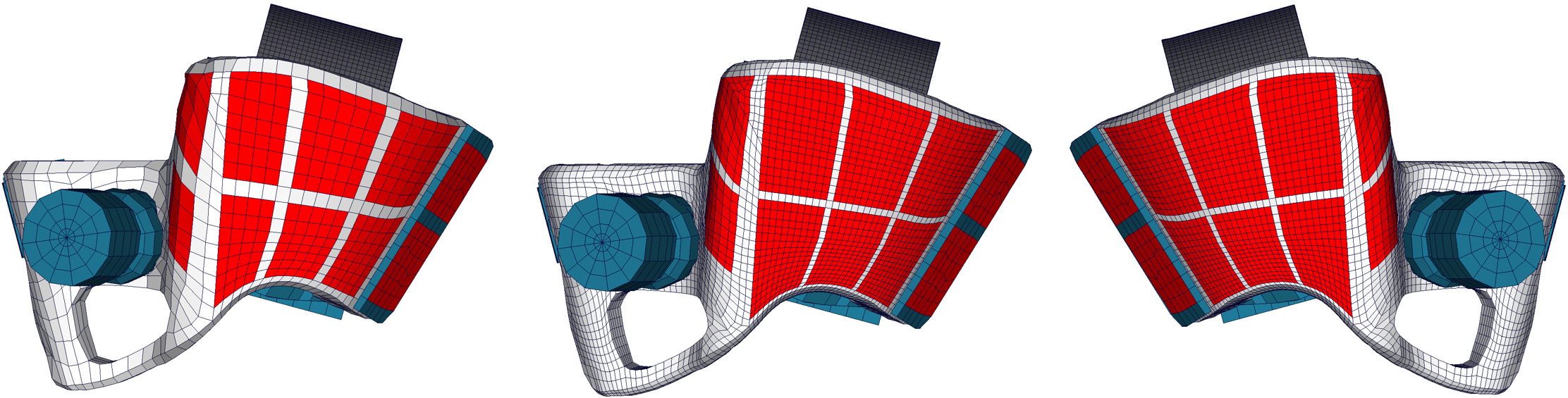

  • Finer pelvis and iliac wings

                                                             WSID_v6.0                                         WSID_v7.0






                                                   WSID_v6.0                                                        WSID_v7.0






WSID50th V6.0 has just one side for iliac wing force evaluation. WSID50th V7.0 has both sides.

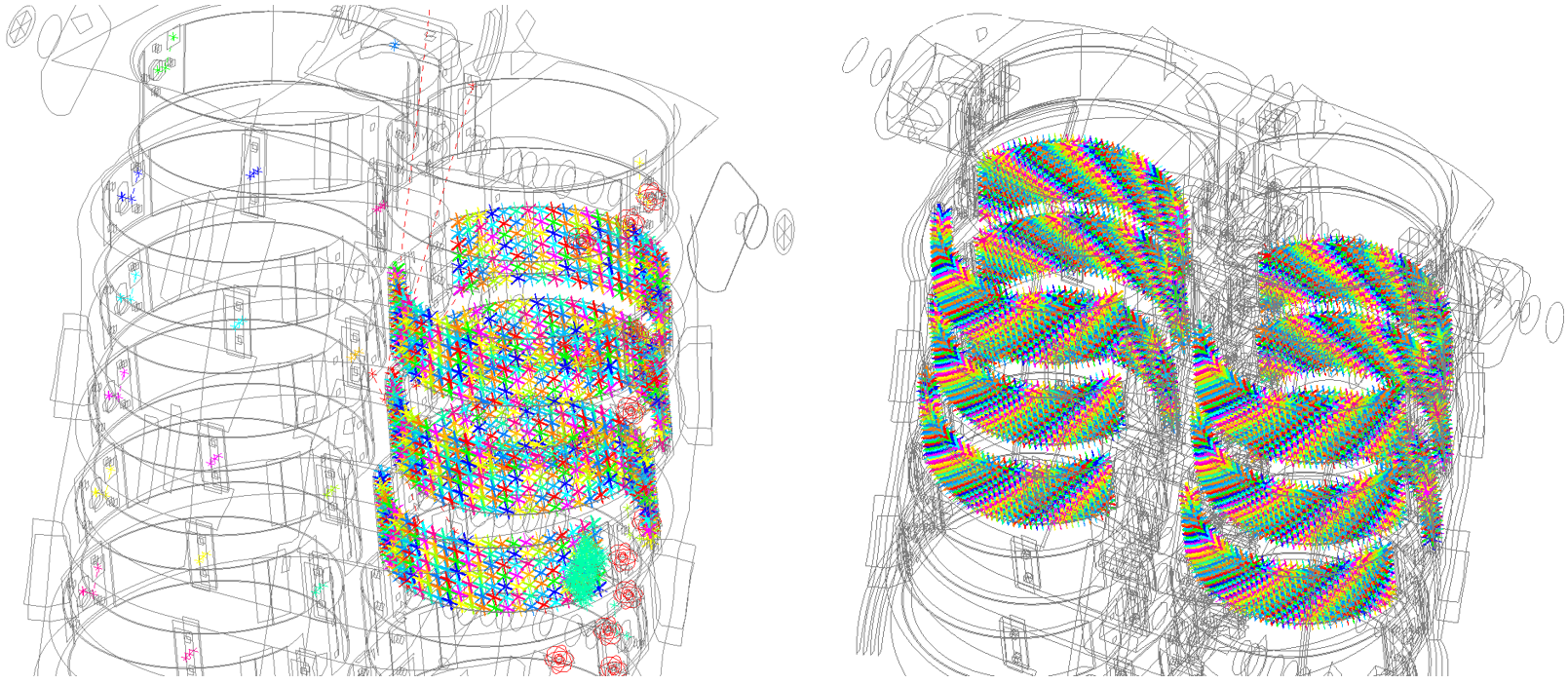

  • Constrained_method for optional thorax_rib_damping_mat_nodes:

The optional nodes are constrained by:
*CONSTRAINED_NODAL_RIGID_BODY

This feature is available for both sides of thorax-rib damping parts from version 7.0. The control-parameter of thickness of thorax-rib damping parts is still &trd_opt and located at the first place of block *PARAMETER.



                                                             WSID_v6.0                                         WSID_v7.0






  • different structure of delivery models: LHD and RHD in one master input from v7.0 on (IR-TRACCs, Ballast for 2D-IR-TRACCs and Rib-Eye can be varied as wanted with includes in master file)

Delivery package v6.0 included 4 models: S3, S3_RHD, S2, S2_RHD.
Delivery package v7.0 includes just 2 models: S3 and S2.



Include files for v6.0 Include files for v7.0
License (.asc) / load curves file License (.asc) / load curves file
Arm sleeve Arm sleeve
H-point tool H-point tool
Rib-Eye / Rib-Eye RHD Rib-Eye / Rib-Eye RHD
IR-TRACCs-LHD / IR-TRACCs-RHD
Ballast LHD / Ballast RHD



Available IR-TRACCs, Ballast, Rib-Eye system includes for WSID50th V7.0 and subsequent versions:
a. worldSID50_pdb_vx.x.x_mm_ms_kg_IR-TRACC_left_vx.x.key
/ worldSID50_pdb_vx.x.x_mm_s_ton_IR-TRACC_left_vx.x.key
b. worldSID50_pdb_vx.x.x_mm_ms_kg_IR-TRACC_right_vx.x.key
/ worldSID50_pdb_vx.x.x_mm_s_ton_IR-TRACC_right_vx.x.key
c. worldSID50_pdb_vx.x.x_Ballast_left_vx.x.key
d. worldSID50_pdb_vx.x.x_Ballast_right_vx.x.key
e. worldSID50_pdb_vx.x.x_mm_ms_kg_RibEye_left_vx.x.key
/ worldSID50_pdb_vx.x.x_mm_s_ton_RibEye_left_vx.x.key
f. worldSID50_pdb_vx.x.x_mm_ms_kg_RibEye_right_vx.x.key
/ worldSID50_pdb_vx.x.x_mm_s_ton_RibEye_right_vx.x.key

For LHD model includes a, d and e are needed.
For RHD model includes b, c and f are needed.



  • 1D-IR-TRACCs are available again from WSID50th V7.0. LHD and RHD have different discrete elements which are used to measure the deflection and rotation of the Ribs



Item Discrete Beam-ID Label Available Components
Shoulder rib LHD 10030 SH1DLE00WSDS0 change in length 1D
1. Thorax rib LHD 10031 TR1DLE01WSDS0 change in length 1D
2. Thorax rib LHD 10032 TR1DLE02WSDS0 change in length 1D
3. Thorax rib LHD 10033 TR1DLE03WSDS0 change in length 1D
1. Abdomen rib LHD 10034 AB1DLE01WSDS0 change in length 1D
2. Abdomen rib LHD 10035 AB1DLE02WSDS0 change in length 1D

Shoulder rib RHD 10300 SH1DRI00WSDS0 change in length 1D
1. Thorax rib RHD 10301 TR1DRI01WSDS0 change in length 1D
2. Thorax rib RHD 10302 TR1DRI02WSDS0 change in length 1D
3. Thorax rib RHD 10303 TR1DRI03WSDS0 change in length 1D
1. Abdomen rib RHD 10304 AB1DRI01WSDS0 change in length 1D
2. Abdomen rib RHD 10305 AB1DLE02WSDS0 change in length 1D

Shoulder rib LHD 10060 SHRILE00WSDS0 change in length 2D
1. Thorax rib LHD 10061 TRRILE01WSDS0 change in length 2D
2. Thorax rib LHD 10062 TRRILE02WSDS0 change in length 2D
3. Thorax rib LHD 10063 TRRILE03WSDS0 change in length 2D
1. Abdomen rib LHD 10064 ABRILE01WSDS0 change in length 2D
2. Abdomen rib LHD 10065 ABRILE02WSDS0 change in length 2D

Shoulder rib RHD 10360 SHRIRI00WSDS0 change in length 2D
1. Thorax rib RHD 10361 TRRIRI01WSDS0 change in length 2D
2. Thorax rib RHD 10362 TRRIRI02WSDS0 change in length 2D
3. Thorax rib RHD 10363 TRRIRI03WSDS0 change in length 2D
1. Abdomen rib RHD 10364 ABRIRI01WSDS0 change in length 2D
2. Abdomen rib RHD 10365 ABRIRI02WSDS0 change in length 2D

Shoulder rib LHD 10050 SHRILE00WSANZ z-rotation
1. Thorax rib LHD 10051 TRRILE01WSANZ z-rotation
2. Thorax rib LHD 10052 TRRILE02WSANZ z-rotation
3. Thorax rib LHD 10053 TRRILE03WSANZ z-rotation
1. Abdomen rib LHD 10054 ABRILE01WSANZ z-rotation
2. Abdomen rib LHD 10055 ABRILE02WSANZ z-rotation

Shoulder rib RHD 10320 SHRIRI00WSANZ z-rotation
1. Thorax rib RHD 10321 TRRIRI01WSANZ z-rotation
2. Thorax rib RHD 10322 TRRIRI02WSANZ z-rotation
3. Thorax rib RHD 10323 TRRIRI03WSANZ z-rotation
1. Abdomen rib RHD 10324 ABRIRI01WSANZ z-rotation
2. Abdomen rib RHD 10325 ABRIRI02WSANZ z-rotation

Shoulder rib LHD 10081 SHRILE00WSANX x-rotation
1. Thorax rib LHD 10082 TRRILE01WSANX x-rotation
2. Thorax rib LHD 10083 TRRILE02WSANX x-rotation
3. Thorax rib LHD 10084 TRRILE03WSANX x-rotation
1. Abdomen rib LHD 10085 ABRILE01WSANX x-rotation
2. Abdomen rib LHD 10086 ABRILE02WSANX x-rotation

Shoulder rib RHD 10330 SHRIRI00WSANX x-rotation
1. Thorax rib RHD 10331 TRRIRI01WSANX x-rotation
2. Thorax rib RHD 10332 TRRIRI02WSANX x-rotation
3. Thorax rib RHD 10333 TRRIRI03WSANX x-rotation
1. Abdomen rib RHD 10334 ABRIRI01WSANX x-rotation
2. Abdomen rib RHD 10335 ABRIRI02WSANX x-rotation



For EuroNCAP evaluation the local x- and y- deflections in respect to the spine box is calculated by an equation.
In simulation model we have added different nodes to evaluate the local x- and y- deflections directly form the nodout file for LHD and RHD. Nodes are defined:



Item Node ID                  Label Available Components
Shoulder rib LHD 10751 shoulder rib deformation
Local X/Y/Z		 x-, y-, z-displacement
1. Thorax rib LHD 10752 1 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
2. Thorax rib LHD 10753 2 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
3. Thorax rib LHD 10754 3 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
1. Abdomen rib LHD 10755 1 abdomen rib deformation
Local X/Y/Z		 x-, y-, z-displacement
2. Abdomen rib LHD 10756 2 abdomen rib deformation
Local X/Y/Z		 x-, y-, z-displacement

Shoulder rib RHD 10781 shoulder rib deformation
Local X/Y/Z		 x-, y-, z-displacement
1. Thorax rib RHD 10782 1 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
2. Thorax rib RHD 10783 2 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
3. Thorax rib RHD 10784 3 thorax rib deformation
Local X/Y/Z		 x-, y-, z-displacement
1. Abdomen rib RHD 10785 1 abdomen rib deformation
Local X/Y/Z		 x-, y-, z-displacement
2. Abdomen rib RHD 10786 2 abdomen rib deformation
Local X/Y/Z		 x-, y-, z-displacement



In the WorldSID model from version 7.0, the measurement of the length and relative rotation of IR-TRACCs are available for both side (LHD and RHD).

These are measured by key word CONSTRAINED_JOINTSTIFFNESS_TRANSLATIONAL_TITLE and CONSTRAINED_JOINTSTIFFNESS_GENERALIZED_TITLE.

The CONSTRAINED_JOINT_STIFFNESS_TRANSLATIONAL cards IDs are shown as follows:



ID Title Local direction component
1043 IR-TRACC shoulder rib length left y-coordinate theta_degree
1044 IR-TRACC 1st thorax rib length left y-coordinate theta_degree
1045 IR_TRACC 2nd thorax rib length left y-coordinate theta_degree
1046 IR-TRACC 3rd thorax rib length left y-coordinate theta_degree
1047 IR-TRACC 1st abdomen rib length left y-coordinate theta_degree
1048 IR_TRACC 2nd abdomen rib length left y-coordinate theta_degree
1057 IR-TRACC shoulder rib length right y-coordinate theta_degree
1058 IR-TRACC 1st thorax rib length right y-coordinate theta_degree
1059 IR_TRACC 2nd thorax rib length right y-coordinate theta_degree
1060 IR-TRACC 3rd thorax rib length right y-coordinate theta_degree
1061 IR-TRACC 1st abdomen rib length right y-coordinate theta_degree
1062 IR_TRACC 2nd abdomen rib length right y-coordinate theta_degree



The CONSTRAINED_JOINT_STIFFNESS_GENERALIZED cards IDs are shown as follows:



ID Title Local direction component
1051 IR-TRACC shoulder rib rotation left z-coordinate psi_degree
1052 IR-TRACC 1st thorax rib rotation left z-coordinate psi_degree
1053 IR_TRACC 2nd thorax rib rotation left z-coordinate psi_degree
1054 IR-TRACC 3rd thorax rib rotation left z-coordinate psi_degree
1055 IR-TRACC 1st abdomen rib rotation left z-coordinate psi_degree
1056 IR_TRACC 2nd abdomen rib rotation left z-coordinate psi_degree
1063 IR-TRACC shoulder rib rotation right z-coordinate psi_degree
1064 IR-TRACC 1st thorax rib rotation right z-coordinate psi_degree
1065 IR_TRACC 2nd thorax rib rotation right z-coordinate psi_degree
1066 IR-TRACC 3rd thorax rib rotation right z-coordinate psi_degree
1067 IR-TRACC 1st abdomen rib rotation right z-coordinate psi_degree
1068 IR_TRACC 2nd abdomen rib rotation right z-coordinate psi_degree



  • In the WorldSID model from version 7.0, the measurement of the pelvis force are available for both sides (LHD and RHD). Pelvis bone is separated into small parts for evaluations through *CONTACT_FORCE_TRANSDUCER_PENALTY_ID.

The small parts of left side and *C_FT_P_ID are shown in the following:

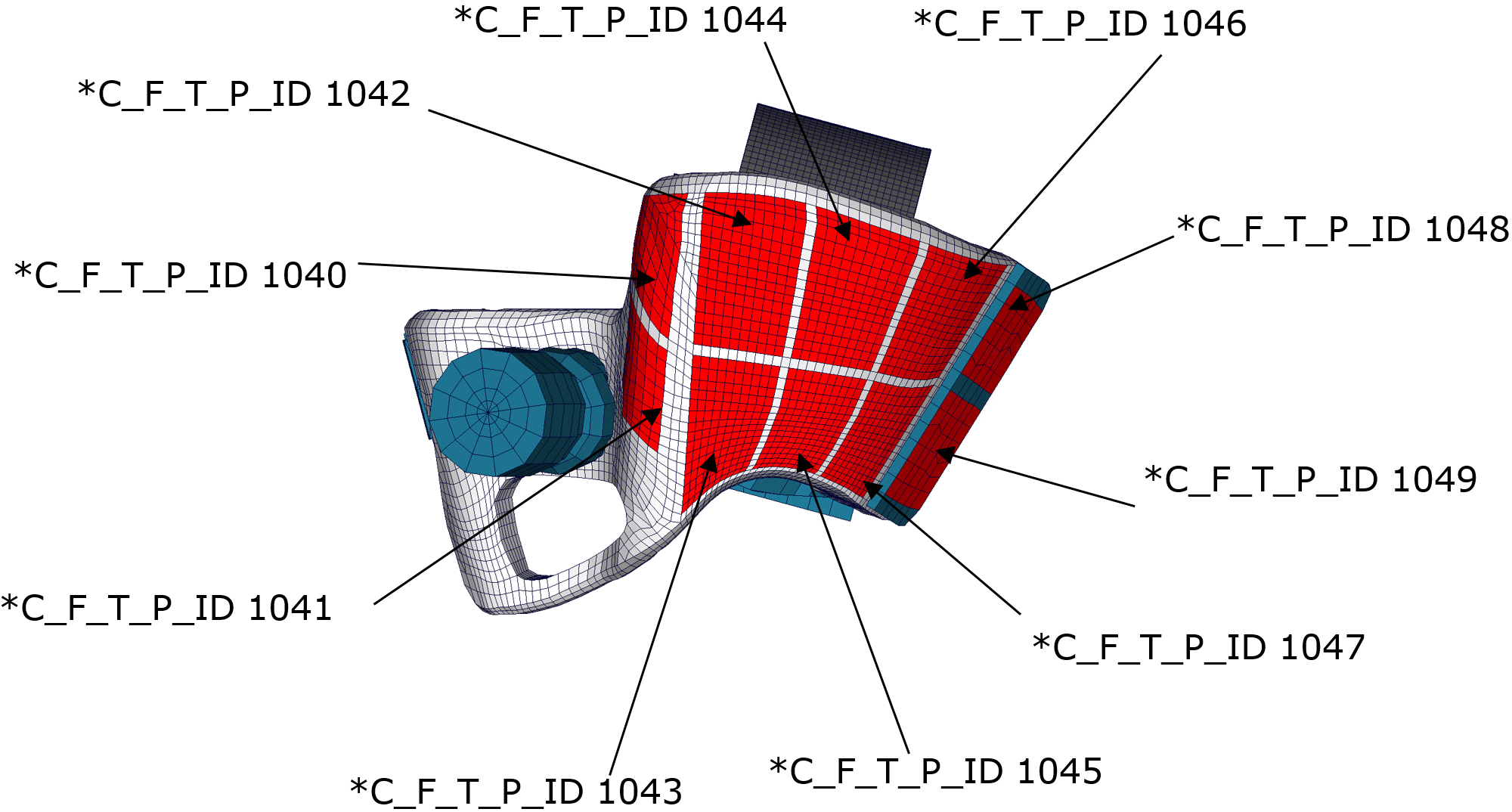

Item C_F_T_P_ID Label Available components
Pelvis force 1040 pelvis bone force left - upper front global contact force x-, y-, z-resultant
Pelvis force 1041 pelvis bone force left - lower front global contact force x-, y-, z-resultant
Pelvis force 1042 pelvis bone force left - upper side forward global contact force x-, y-, z-resultant
Pelvis force 1043 pelvis bone force left - lower side forward global contact force x-, y-, z-resultant
Pelvis force 1044 pelvis bone force left - upper side middle global contact force x-, y-, z-resultant
Pelvis force 1045 pelvis bone force left - lower side middle global contact force x-, y-, z-resultant
Pelvis force 1046 pelvis bone force left - upper side rear global contact force x-, y-, z-resultant
Pelvis force 1047 pelvis bone force left - lower side rear global contact force x-, y-, z-resultant
Pelvis force 1048 pelvis bone force left - connection plate - upper global contact force x-, y-, z-resultant
Pelvis force 1049 pelvis bone force left - connection plate - lower global contact force x-, y-, z-resultant

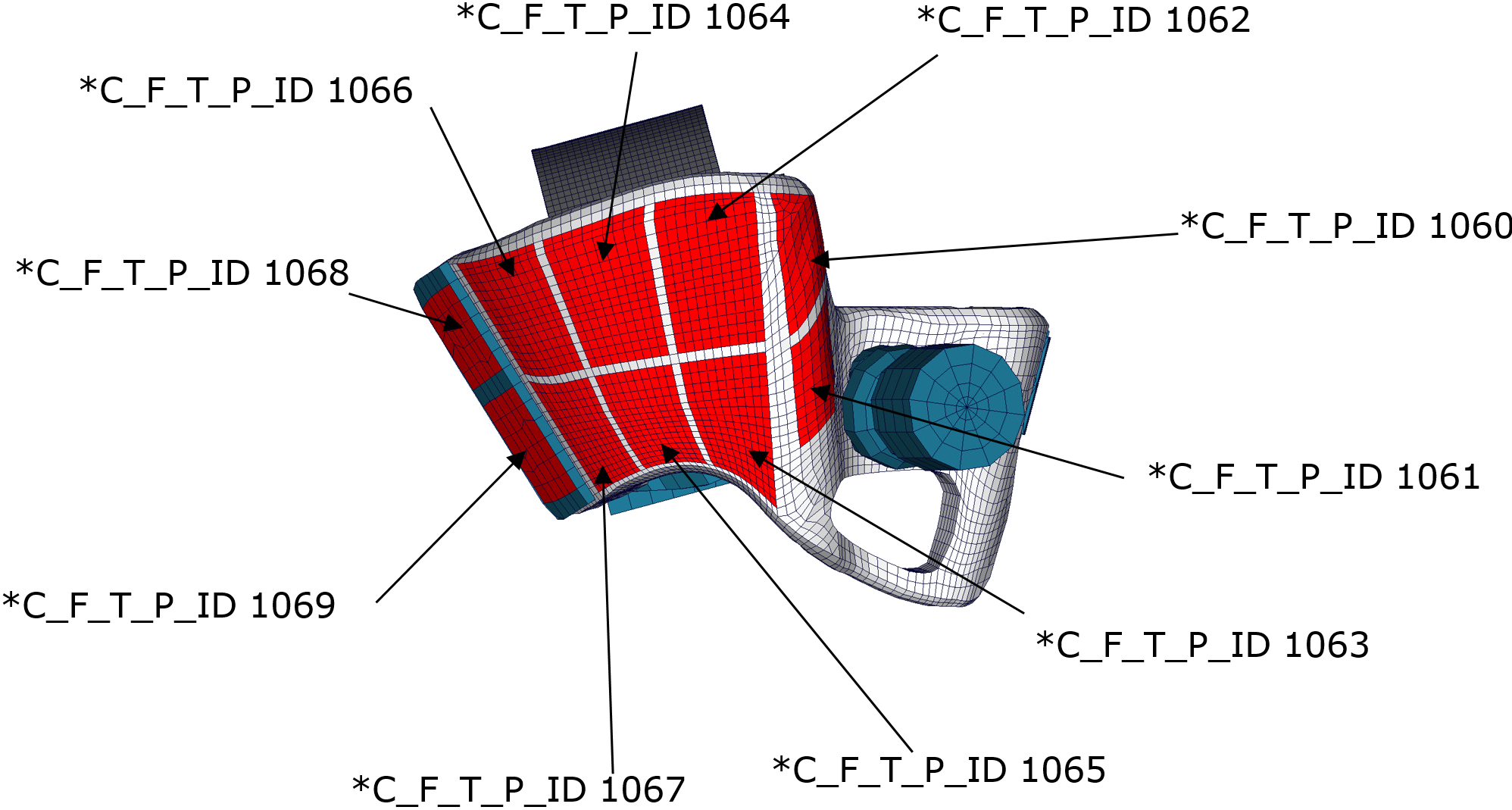

Item C_F_T_P_ID Label Available components
Pelvis force 1060 pelvis bone force right - upper front global contact force x-, y-, z-resultant
Pelvis force 1061 pelvis bone force right - lower front global contact force x-, y-, z-resultant
Pelvis force 1062 pelvis bone force right - upper side forward global contact force x-, y-, z-resultant
Pelvis force 1063 pelvis bone force right - lower side forward global contact force x-, y-, z-resultant
Pelvis force 1064 pelvis bone force right - upper side middle global contact force x-, y-, z-resultant
Pelvis force 1065 pelvis bone force right - lower side middle global contact force x-, y-, z-resultant
Pelvis force 1066 pelvis bone force right - upper side rear global contact force x-, y-, z-resultant
Pelvis force 1067 pelvis bone force right - lower side rear global contact force x-, y-, z-resultant
Pelvis force 1068 pelvis bone force right - connection plate - upper global contact force x-, y-, z-resultant
Pelvis force 1069 pelvis bone force right - connection plate - lower global contact force x-, y-, z-resultant



  • Soft 2 for dummy self-contact
  • Jacket is adapted to new mesh and contact definition
  • Arm model optimization
  • Lumbar model optimization
  • Material model opimization
  • Time step is changed to 7E-4 ms
